16.1 Remote Control
► “Remote Control (Remote Control)” in the features guide
This section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
• Procedure Using the Keys (other than SETUP) (see section 1.2 in IM WT5000-03EN)
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.
Tap the Utility tab. The utility settings overview screen appears.
Pressing ESC closes the overview screen.
Remote Control Settings (Remote Control)
3.

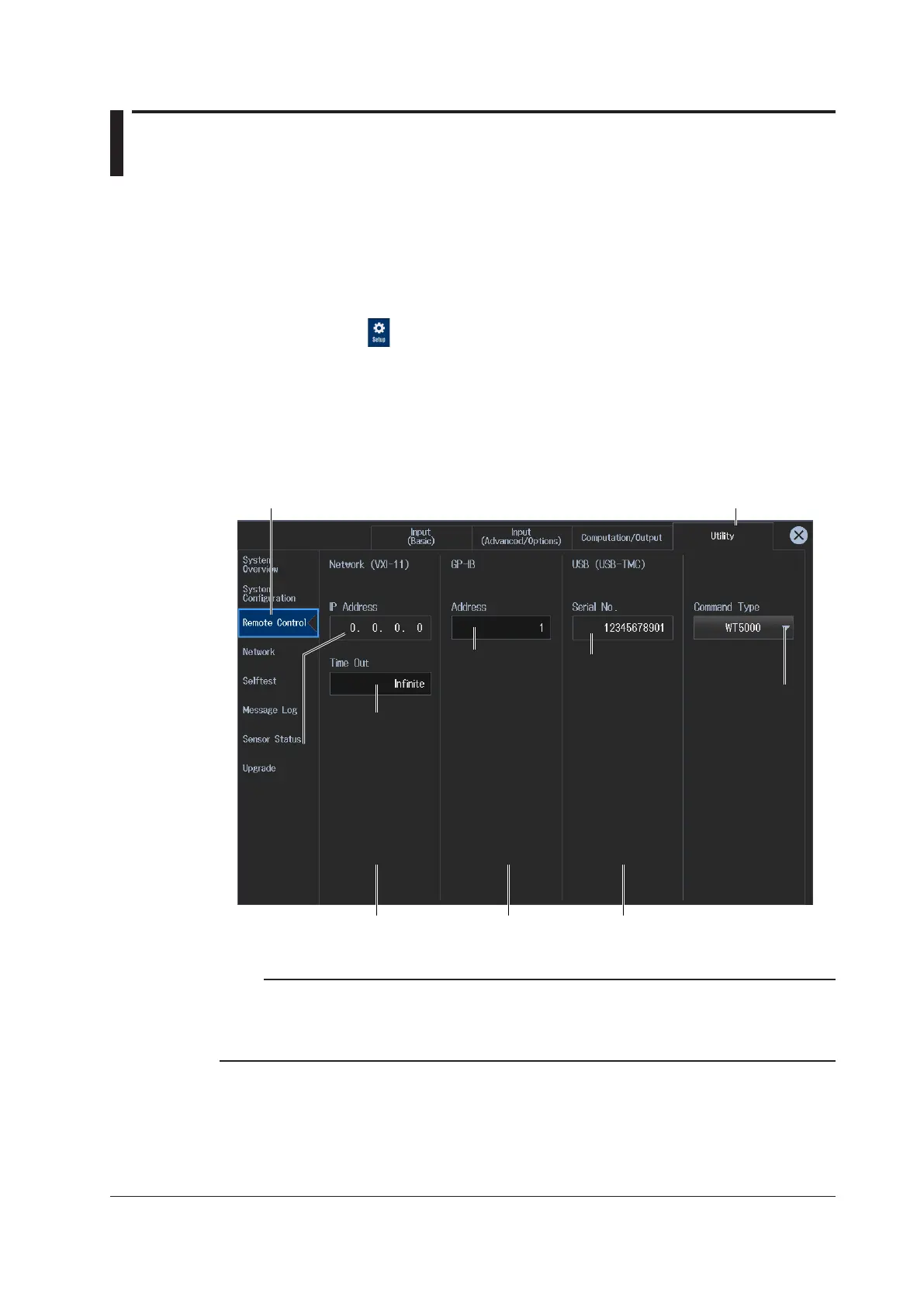

Tap Remote Control. A remote control setup screen (Network(VXI-11/GP-IB/USB(USB-TMC))
appears.
Utility tab
Configure remote control.
Network (VXI-11)
scree (Ethernet)
GP-IB screen
USB(USB-TMC) screen
Set the timeout
(Infinite, 1s to 3600 s).
Set the address
(0 to 30).
Serial number
IP address
For the startup procedure, see section 15.2.
Set the command type
(WT5000, WT3000E,
WT3000, WT1800E,
WT1800, WT1600).
Note
• Only use one communication interface: GP-IB, USB, or Network. If you send commands simultaneously
from more than one communication interface, the instrument will not execute the commands properly.
• You can also display the utility settings overview screen by moving the cursor on the Utility tab using the
arrow keys and then pressing SET.
