2.1 Setting the Wiring System
This section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
► “Wiring System (Wiring)” in the features guide
► “Range Σ link (Range Σ Link)” in the features guide
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.

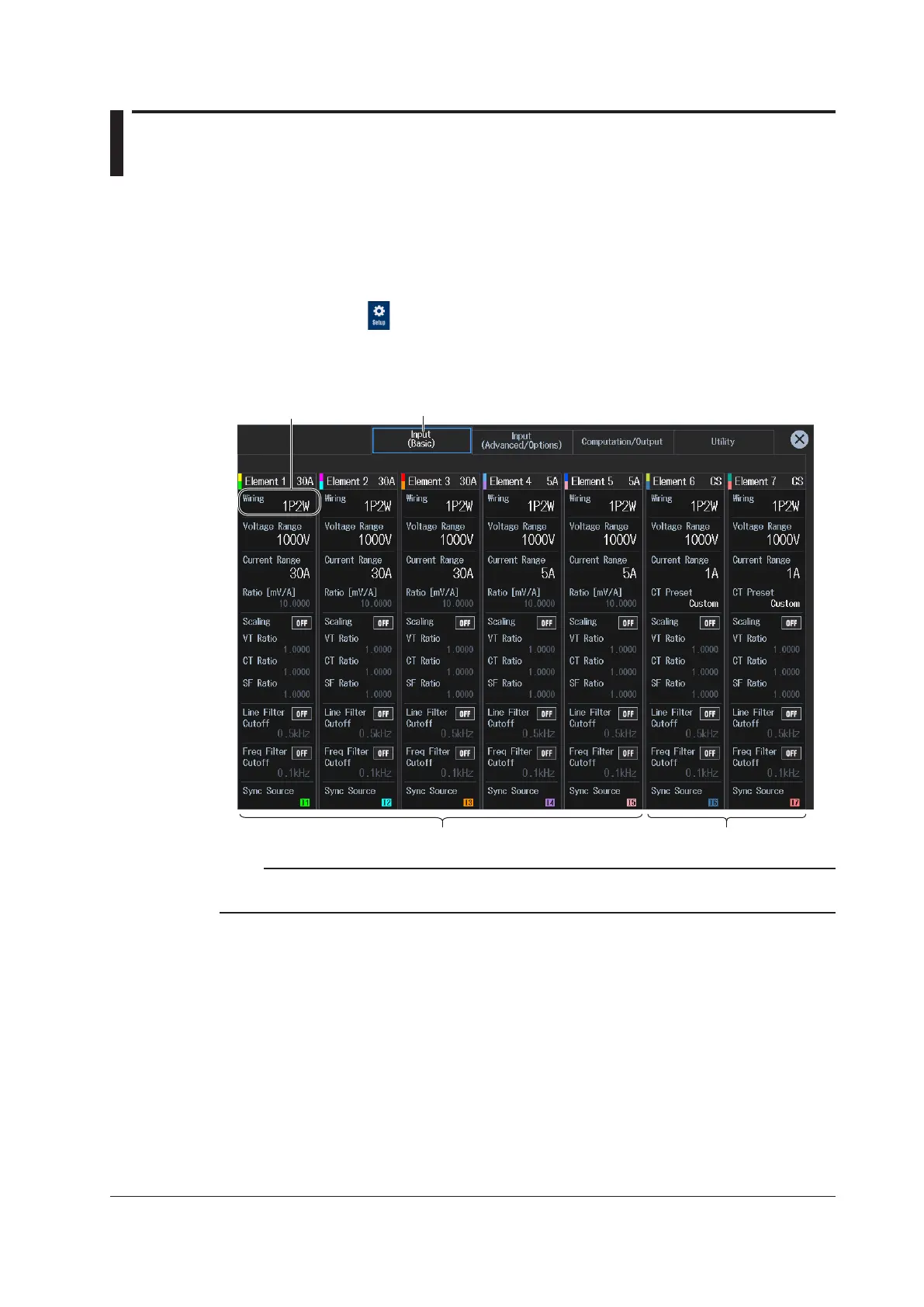

Tap the Input (Basic) tab. An input settings (basic measurement conditions) overview screen
appears.
Pressing ESC closes the overview screen.
Input (Basic) tab
When the input element is 760901 or 760902 When the input element is 760903
Set the wiring system.
Note
You can also display the input settings (basic measurement conditions) overview screen by moving the
cursor on the Input (Basic) tab using the arrow keys and then pressing SET.
Chapter 2 Setting Basic Measurement Conditions
To Next Page
