2-33
IM WT5000-02EN

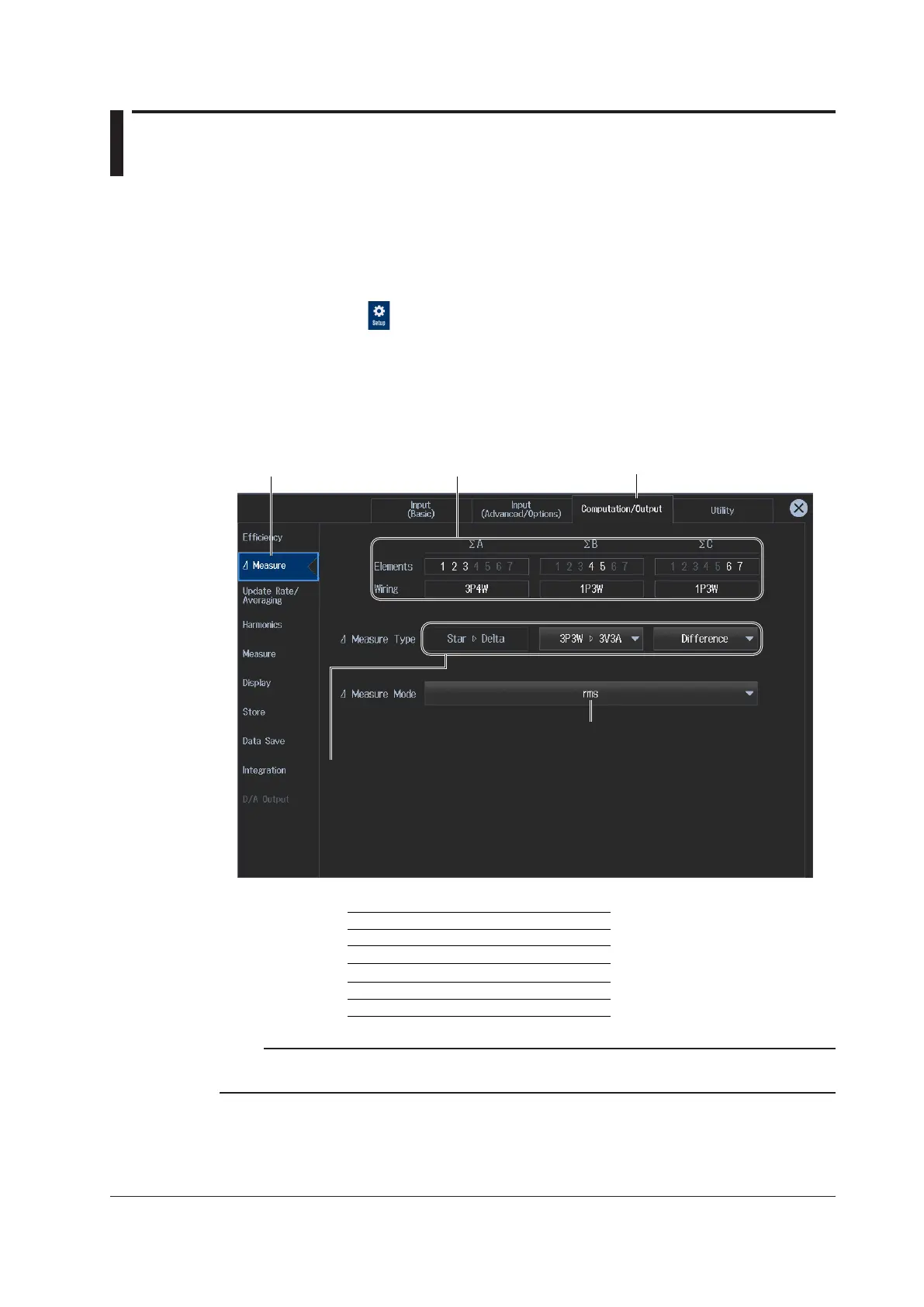

2.12 Setting the Delta Computation
► “Delta Computation (Δ Measure)” in the features guide
This section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.
Tap Computation/Output tab. A computation and output settings overview screen appears.
Pressing ESC closes the overview screen.
Setting Delta Computation (ΔMeasure)
3.
Tap ΔMeasure. A delta computation setup screen appears.
Computation/Output tab
Set the delta computation
equation.
Set the delta computation mode
(rms, mean, dc, r-mean, ac).
Set the delta computation type (ΣA, ΣB, ΣC).
The available options vary depending on the set wiring systems.
1
1 Delta computation type
1P3W
Wiring System
3P3W
3P4W
3P3W(3V3A)
Delta Computation Type
Difference, 3P3W>3V3A
Difference, 3P3W>3V3A
Star>Delta
Delta>Star
Wiring information
Note
You can also display the computation/output settings overview screen by moving the cursor on the
Computation/Output tab using the arrow keys and then pressing SET.
