3.6 Holding the Maximum Values
This instrument shows on the screen the maximum values of measurements (measurement functions)
of the voltage, current, power, and the like applied to the input elements or wiring units.
► “MAX Hold (Max Hold)” in the features guide
Using an example, this section explains how to display the maximum values of measurements.
The following maximum values are displayed as an example.
• Maximum value of the true rms voltage (Max Urms)
• Maximum value of the true rms current (Max Irms)
• Maximum value of the active power (Max P)
In addition, this section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
• Procedure Using the Menu Icons (see page iii)

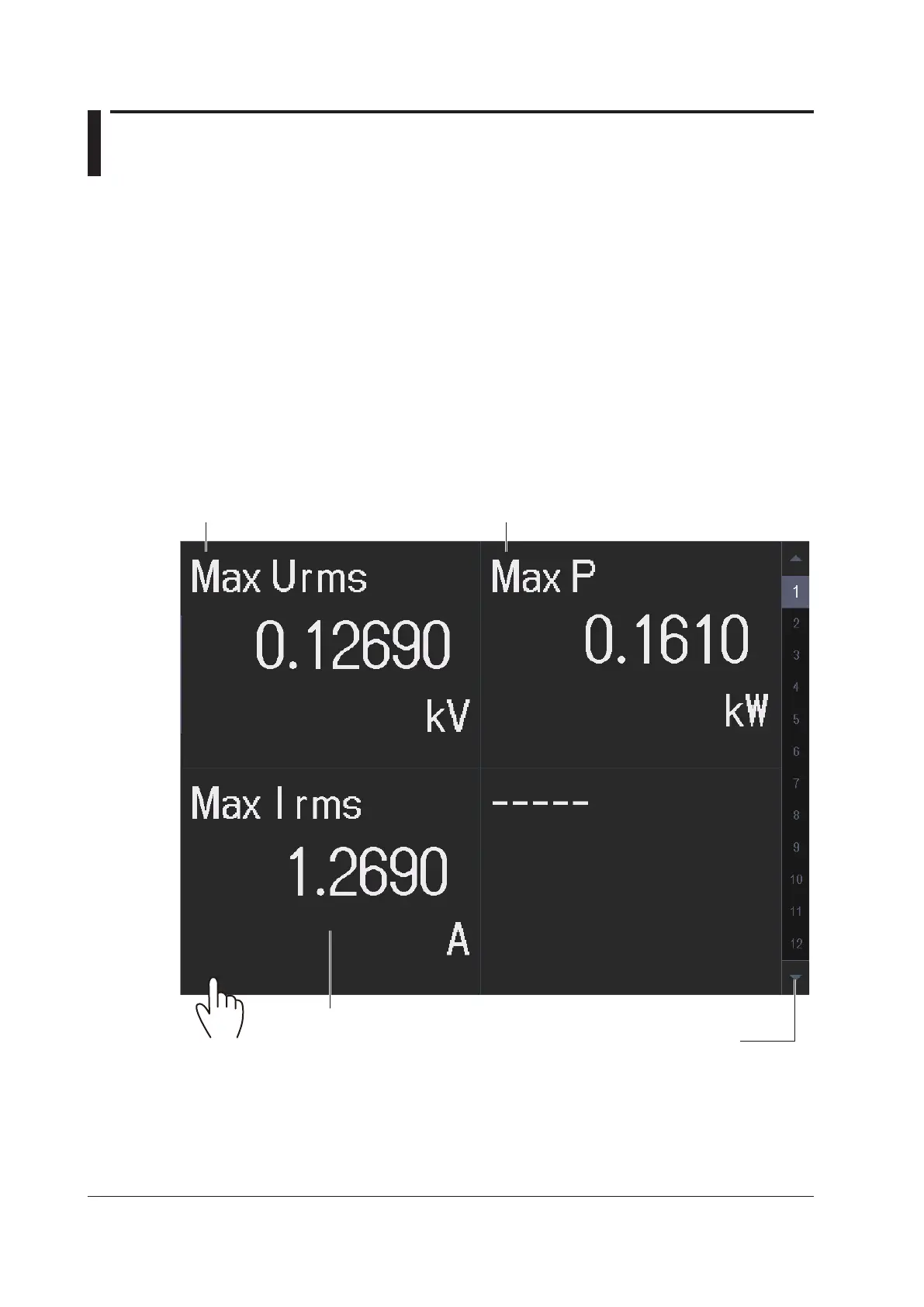

Measurement Display Screen (Example of a 4 items display)
Measurement display of input element 1
Maximum voltage (true rms) Maximum power (active power)
Maximum current (true rms)
Switches the displayed page (Page Up/Page Down)
Switches to the measurement display of another input element
Tap ▲ or ▼ to change the displayed page in order from the
current number. Tap the number directly to change to the number
display page.
If you hold your finger down on the 4-,
8-, 16-value, matrix or harmonics
display for at least 1 second, you can
perform the operations described in
“Switching the Displayed Items (Items),”
To Next Page
