8.4 Setting the Format of Saved Screen Images
► “Conditions for Saving Screen Images” in the features guide
This section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
• Procedure Using the Menu Icons (see page iii)
• Procedure Using the Keys (other than SETUP) (see section 1.2 in IM WT5000-03EN)
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.
Tap Computation/Output tab. A computation and output settings overview screen appears.
Pressing ESC closes the overview screen.
Setting the Save Conditions (Data Save)
3.
Tap Data Save.
An save condition setup screen appears.
Computation/Output tab
Set the save conditions.

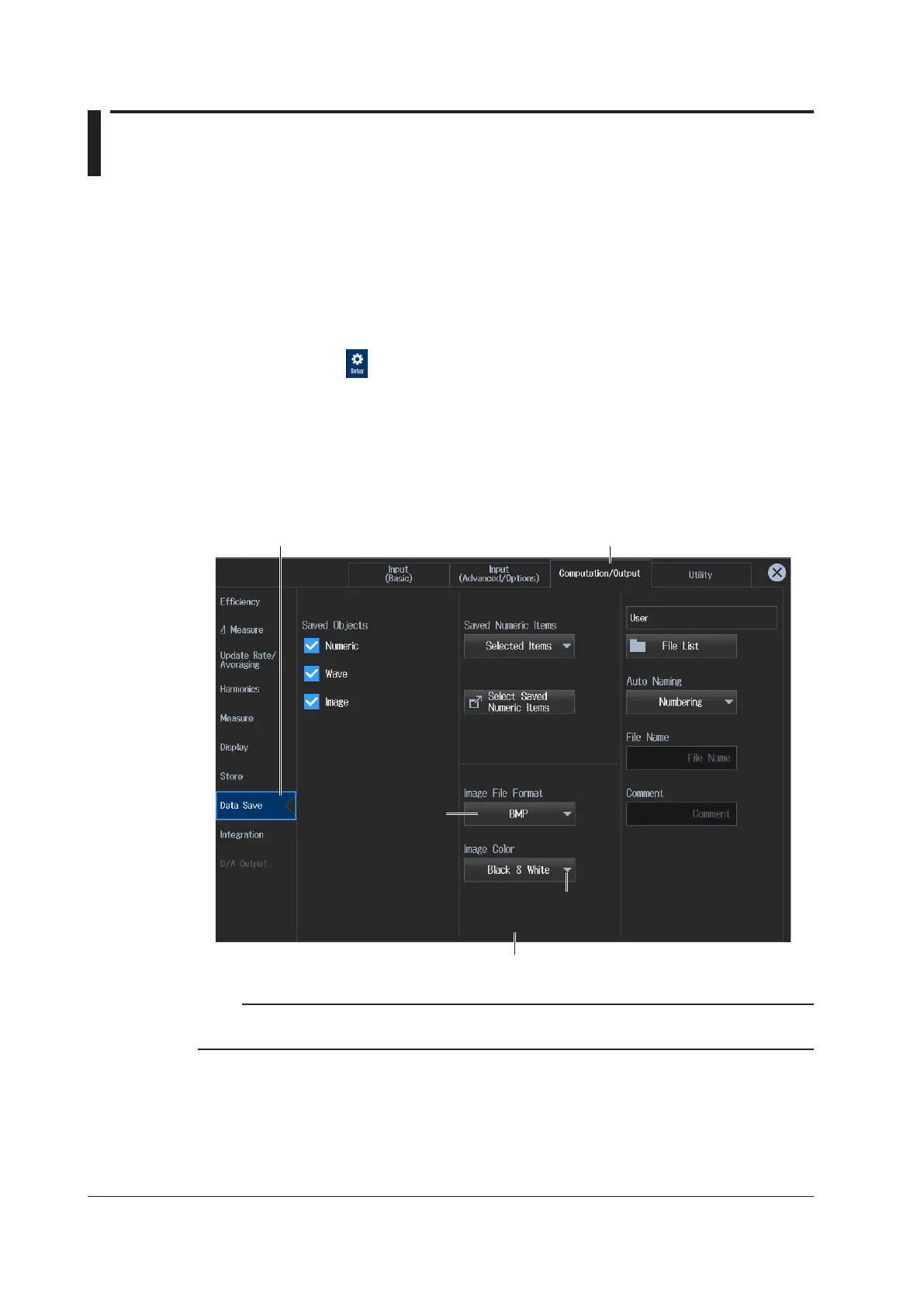

Image setup screen
Set the colors (Black & White, Color,
Reverse, Gray).
Set the data format
(BMP, PNG, JPEG).
Note
You can also display the computation/output settings overview screen by moving the cursor on the
Computation/Output tab using the arrow keys and then pressing SET.
