YOKOGAWA WT5000 User Manual

8-7
IM WT5000-02EN
8.3 Setting the Numeric Data Items to Save

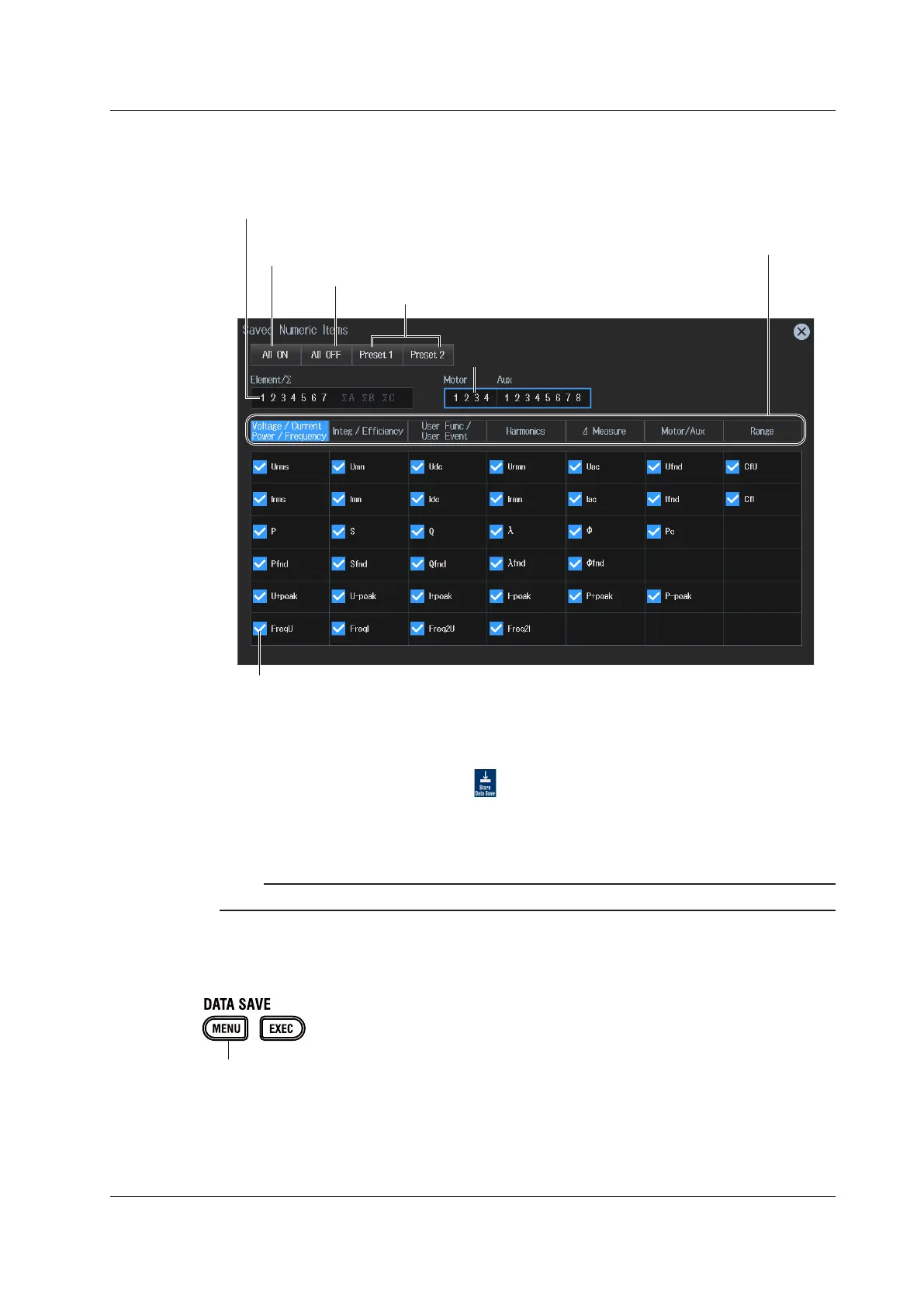

Selecting Numeric Data Items (Select Saved Numeric Items)
Tap Select Saved Numeric Items for selecting the numeric data items. A Saved Numeric Items
screen appears.
Selects all the numeric data items
Clears the selection of all the numeric data items
Selects the preset numeric data items
Select the numeric items that you want to save.
Measurement function group selection buttons
Switch the displayed numeric data items to be saved.
Select the input elements or wiring units to be saved.
Select the motor evaluation configuration
channels to be saved.
Procedure Using the Menu Icons
You can also use the menu icons shown on the right side of the screen to set numeric data saving.
1.
Tap the Store/Data Save menu icon . A Store/Data Save menu appears in the sub menu
area on the right side of the screen.
By tapping the displayed items, you can specify the same settings as when using the screen explained
earlier.
Note
For details on the Store/Data Save menu, see page xi.
Procedure Using Keys
You can also use the front panel keys to set numeric data saving.
Set the save destination.
The Setup menu appears.
