3-25
IM WT5000-02EN
3.7 User Display
You can display an illustration (.bmp) that you created on a PC or the like or a photo (.bmp) as a
background of the screen and arrange numeric data boxes on top of the background to configure the
screen.
► “User Display (User)” in the features guide
This section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
• Procedure Using the Menu Icons (see page iii)
• Procedure Using the Keys (other than SETUP) (see section 1.2 in IM WT5000-03EN)
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.
Tap the Computation/Output tab. A computation and output settings overview screen appears.
Pressing ESC closes the overview screen.

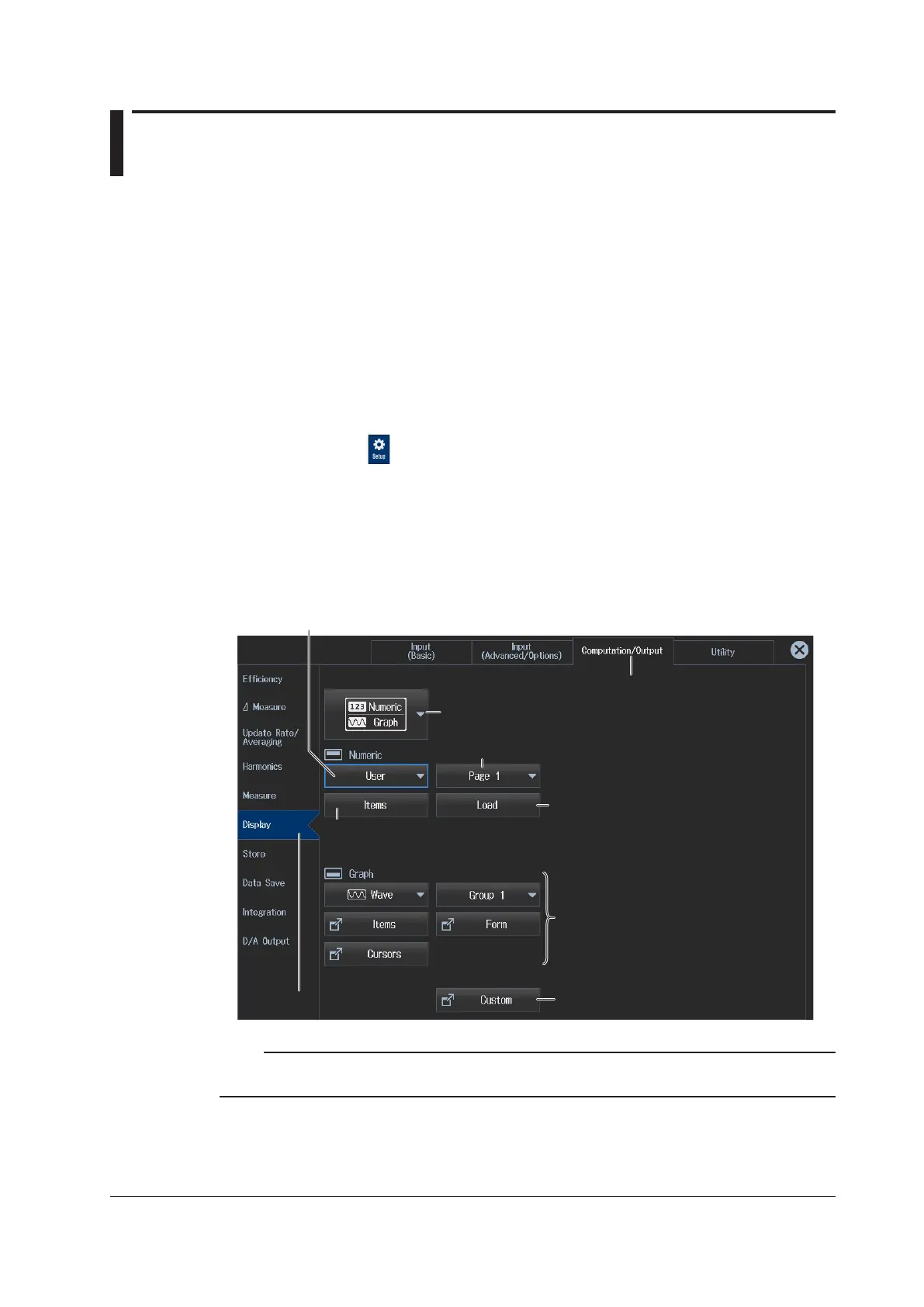

Setting the Display Format (Display)
3.
Tap Display.
A display format setting screen appears.
Computation/Output tab
Display button
Set the numeric display format to User.
Switches the displayed page
Switches the numeric data screen shown in each display format.
Configure the display configuration.
Set the measured value (measurement function) to display, display position, character
size, character color, and so on.
Configure the display (see section 3.1).
Graph display (see section 6.1)
Register the custom display (see
Load the background and display
configuration of the numeric display screen.
Note
You can also display the computation/output settings overview screen by moving the cursor on the
Computation/Output tab using the arrow keys and then pressing SET.
To Next Page
