YOKOGAWA WT5000 User Manual

2-35
IM WT5000-02EN
2.14 Master/slave Synchronous Measurement
► “Master/Slave Synchronous Measurement (Sync Measure)” in the features guide
This section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.
Tap Computation/Output tab. A computation and output settings overview screen appears.
Pressing ESC closes the overview screen.

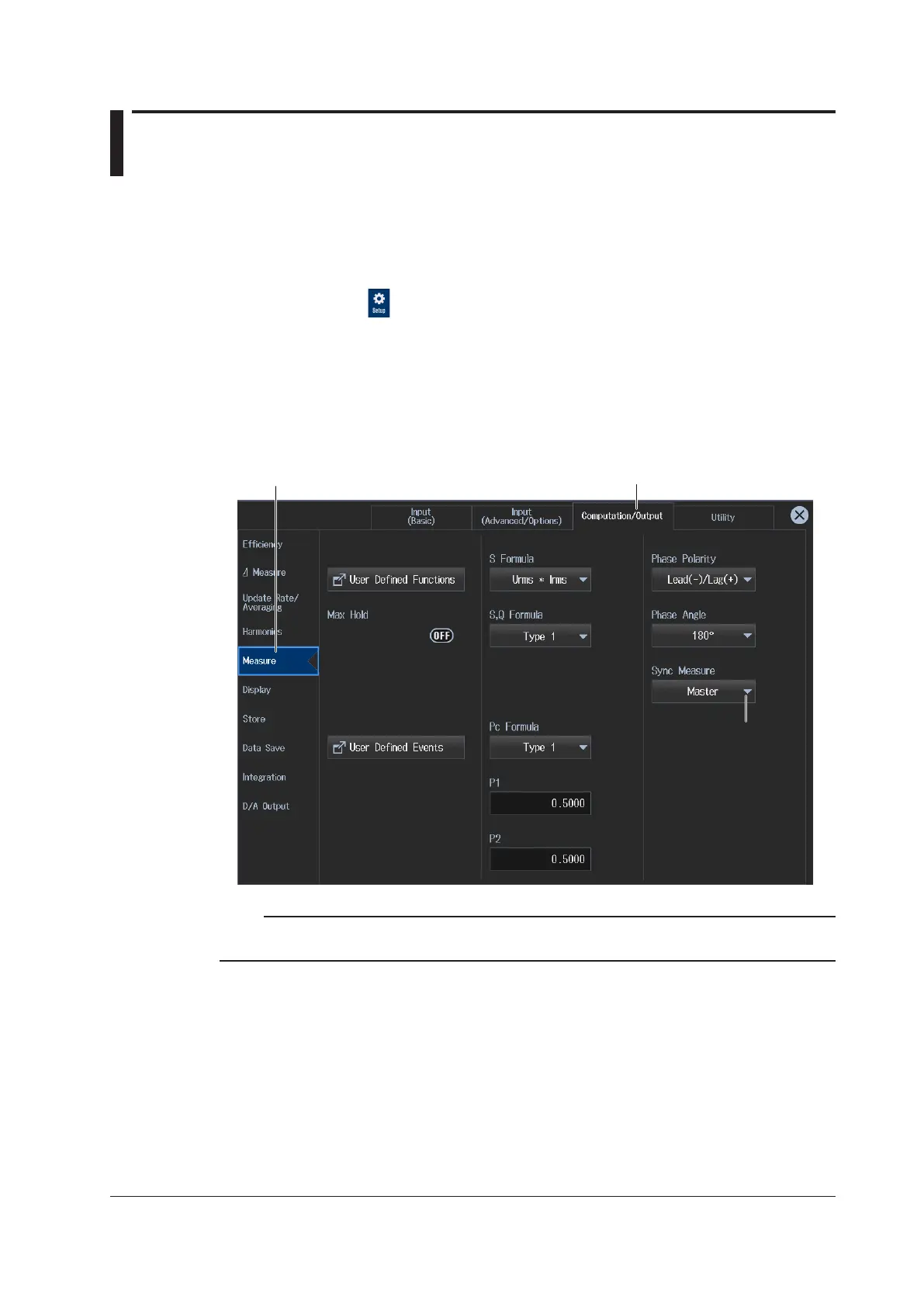

Setting the Master and Slave (Sync Measure)
3.
Tap Measure.
An equation (computation) setup screen appears.
Computation/Output tab
Set the equation (measurement).
Select master or slave
(Master, Slave).
Note
You can also display the computation/output settings overview screen by moving the cursor on the
Computation/Output tab using the arrow keys and then pressing SET.

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
