YOKOGAWA WT5000 User Manual

6-7
IM WT5000-02EN
6.3 Trend display
This instrument shows on the screen the trend graphs of the voltage, current, and the like applied to
the input elements or wiring units.
► “Trend Display (Trend)” in the features guide
► “Display Format (Form, Trend)” in the features guide
► “Display Items (Items, Trend)” in the features guide
Using an example, this section explains how to display measurement results with trend graphs.
In addition, this section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
• Procedure Using the Menu Icons (see page iii)

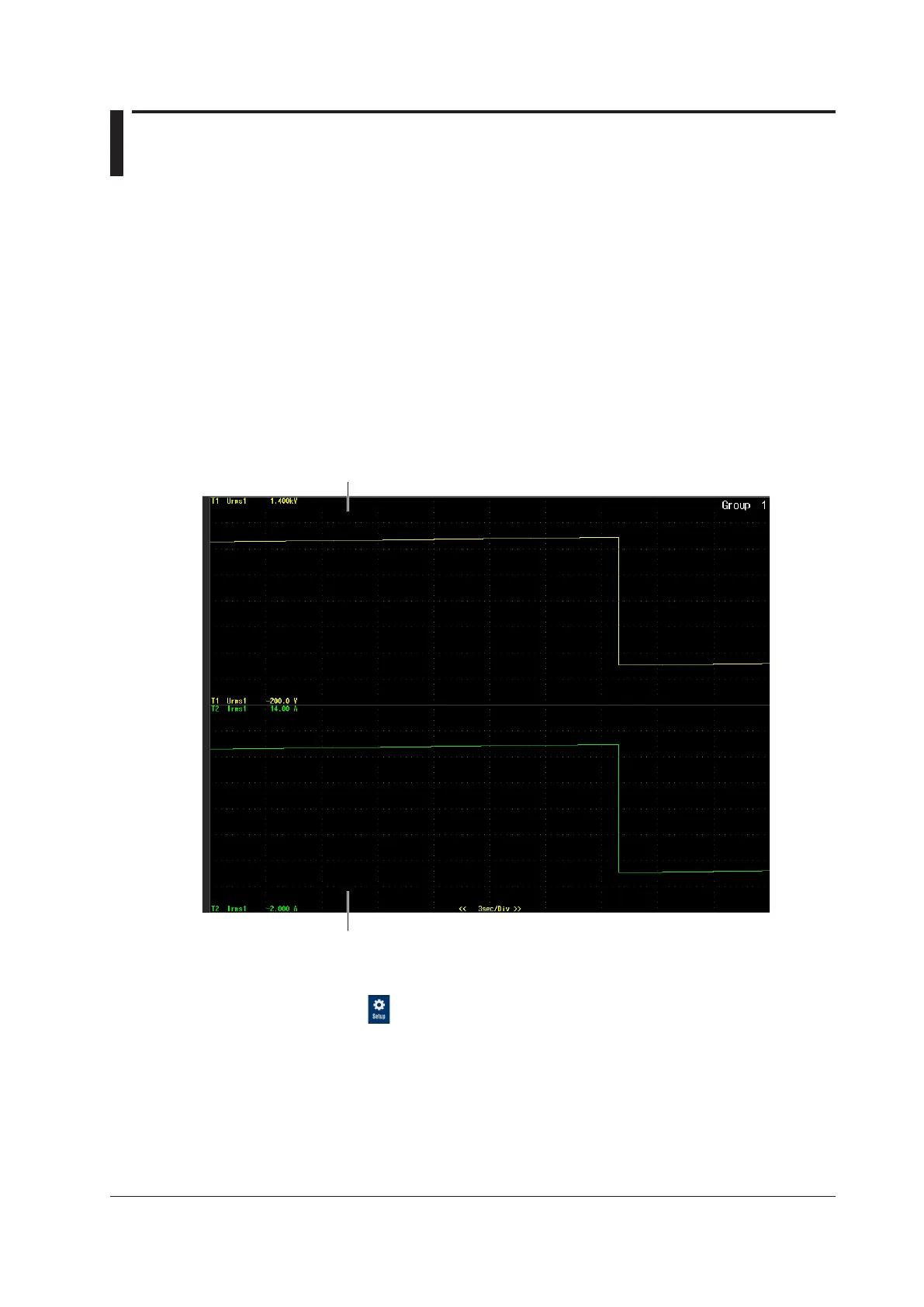

Trend Display Screen (Example of group1 dual display)
Trend display of input element 1
Voltage trend
Current trend
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.
Tap Computation/Output tab. A computation and output settings overview screen appears.
Pressing ESC closes the overview screen.
3.
Tap Display.
A display format setup screen (Numeric/Graph) appears. For details, see section 6.1.

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
