YOKOGAWA WT5000 User Manual

6-6
IM WT5000-02EN

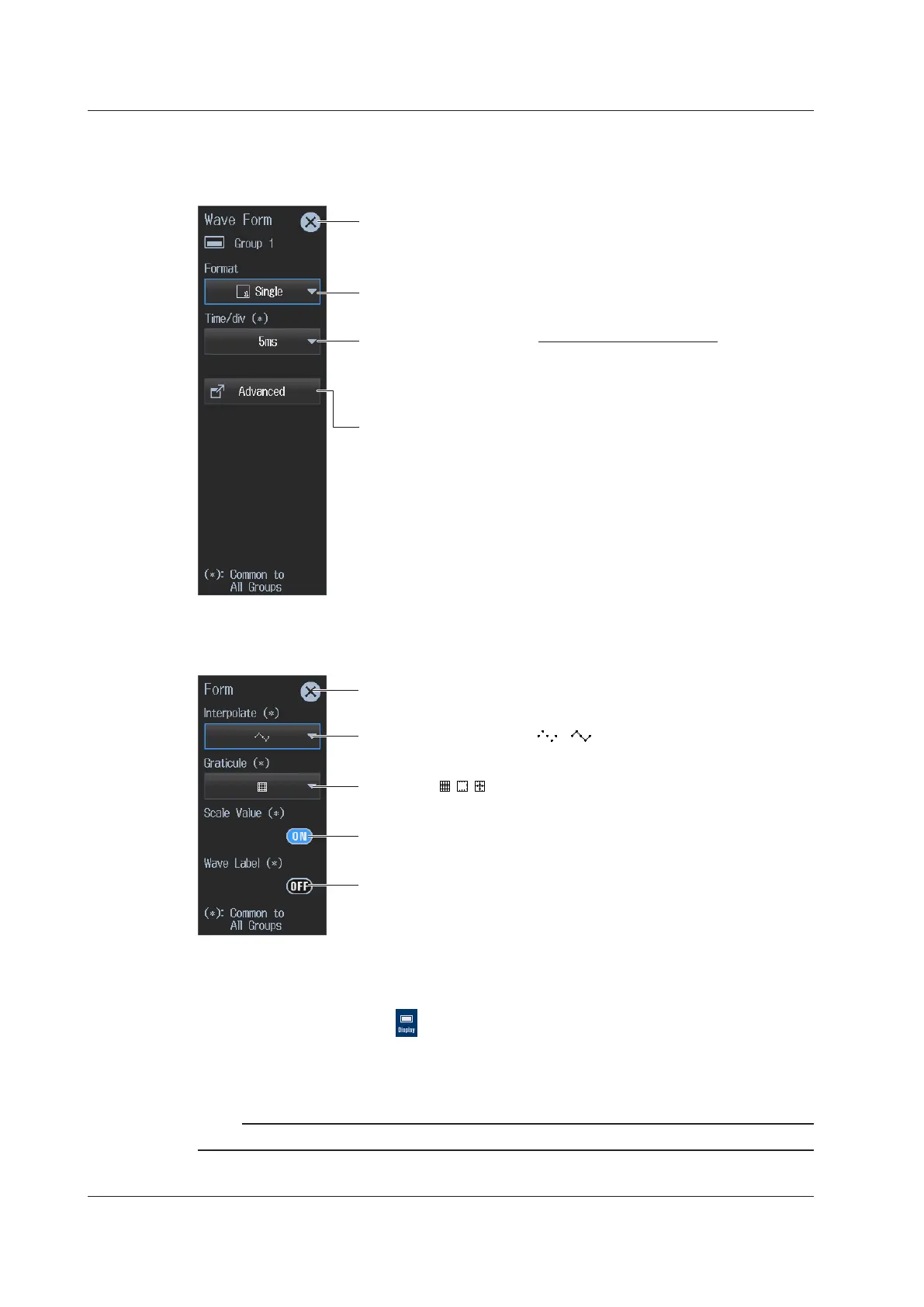

Setting the Display Format (Form)
Set the division of the waveform display screen and time scale (Time/div).
6.
Tap Form. A Wave Form screen appears.
Closes the menu
Set the number of divisions of the waveform screen
(Single, Dual, Triad, Quad, Hexa).
10
Configure the detailed settings of the waveform display.
1 For information on how to set the data update interval, see section 2.10.
Items that are marked with (*) are shared among all groups.
If you pinch in or pinched out on the Graph screen, the time scale setting
changes stepwise according to the amount of pinching. The time scale after
switching is shown highlighted for a few seconds in the group display area in the
upper right of the Graph screen.
Set the time scale (0.01 ms to
specified data update interval
1
).
Advanced Waveform Display (Advanced)
7.
Tap Advanced. A Form screen appears.
Closes the menu
Set the scale value display (OFF, ON).
Set the display interpolation ( , ).
Set the grid ( , , ).
Set the waveform label display (OFF, ON).
Items that are marked with (*) are shared among all groups.
Procedure Using the Menu Icons
You can also use the menu icons shown on the right side of the screen to switch the displayed items.
1.
Tap the Display menu icon . A Display menu appears in the sub menu area on the right side
of the screen.
By tapping the displayed items, you can specify the same operation as explained in “Switching the
Displayed Items” described earlier.
Note
For details on the Display menu, see page iv.
6.2 Waveform Display

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
