6-5
IM WT5000-02EN
Setting the Graph Display Type (Graph)
4.
Tap Graph to select Wave.
Switching the Displayed Group (Group)
5.
Tap Group to select a group from Group1 to Group4.
You can select up to four groups. The Item and Form settings, explained later, are applied to the group
numbers you select in this step.
Switching the Display Group When Displaying Graphs
Flick the Graph screen up or down to switch the display group.
The group number after switching is shown highlighted for a few seconds in the group
display area in the upper right of the Graph screen.
Switching the Displayed Items (Items)
Select the voltages and currents of the input elements to be displayed with waveforms.
6.

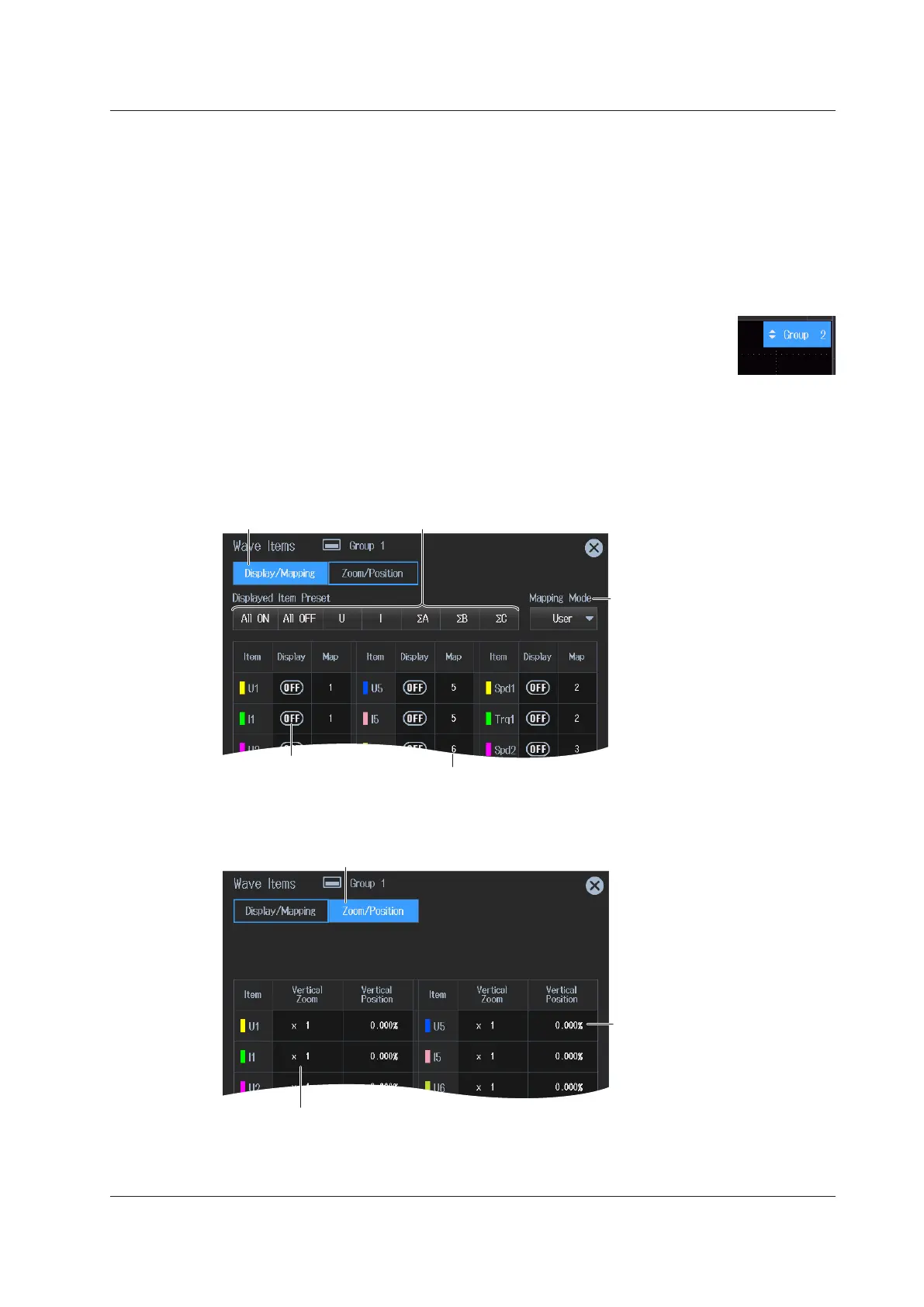

Tap Items. A Wave Items screen appears.
7.
Tap the Display/Mapping tab. Turn the display on or off, and map waveforms.
Display/Mapping tab
Set waveform mapping
(Auto, Fixed, User).
Displayed item preset buttons
Turns the preset item display on and off
The display can be turned
on or off for each item.
Waveform can be mapped for each
7.
Tap the Zoom/Position tab. Set the vertical zoom factor and vertical position.
Set the vertical zoom factor.
( x 0.1, x 0.2, x 0.25, x 0.4, x 0.5, x 0.75, x 0.8, x 1, x 1.14, x 1.25, x 1.33, x 1.41, x
1.5, x 1.6, x 1.77, x 2, x 2.28, x 2.66, x 2.83, x 3.2, x 3.54, x 4, x 5, x 8, x 10,
x 12.5, x 16, x 20, x 25, x 40, x 50, x 100)
Set the vertical position
(0.000% to ±130.000%).
6.2 Waveform Display
