2.8 Set the Measurement Period
► “Measurement Period (Sync Source)” in the features guide
This section explains operating procedures using the following setup methods.
• Procedure Using the Setup Menu (see chapter 1)
Depending on the measurement mode or the method of computing measurement values (computing
method), the settings may be different from the description in this section, the settings may be invalid,
or the settings may not be configurable. For details, see the features guide.
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.

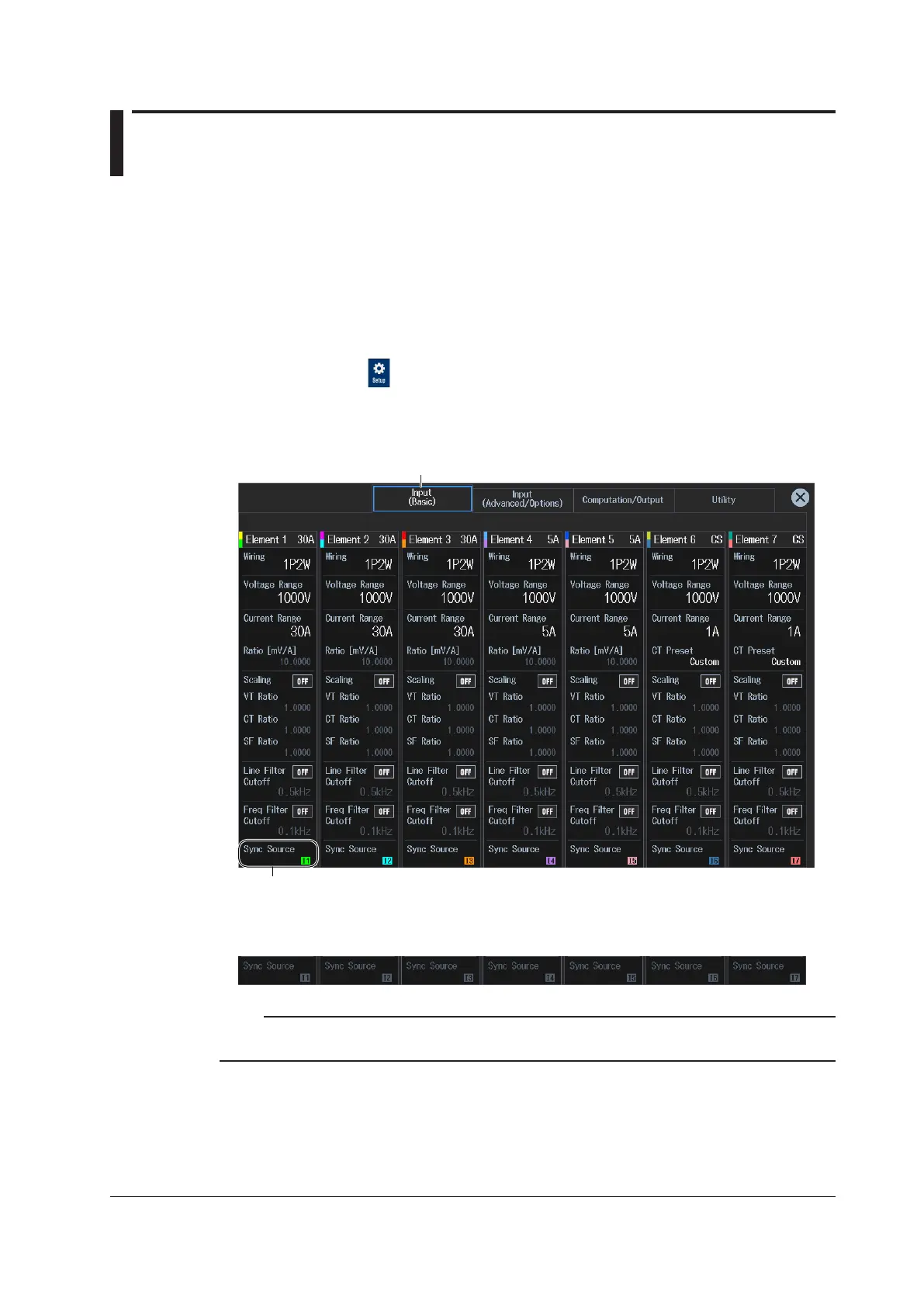

Tap the Input (Basic) tab. An input settings (basic measurement conditions) overview screen
appears.
Pressing ESC closes the overview screen.
Input (Basic) tab
Set the Sync Source.
If the computing method (Measurement Method) of the data update interval setup screen (see section
2.10) is set to Digital Filter Average, the menu appears dimmed as shown in the following figure and
cannot be used.
Note
You can also display the input settings (basic measurement conditions) overview screen by moving the
cursor on the Input (Basic) tab using the arrow keys and then pressing SET.
