2-28
IM WT5000-02EN

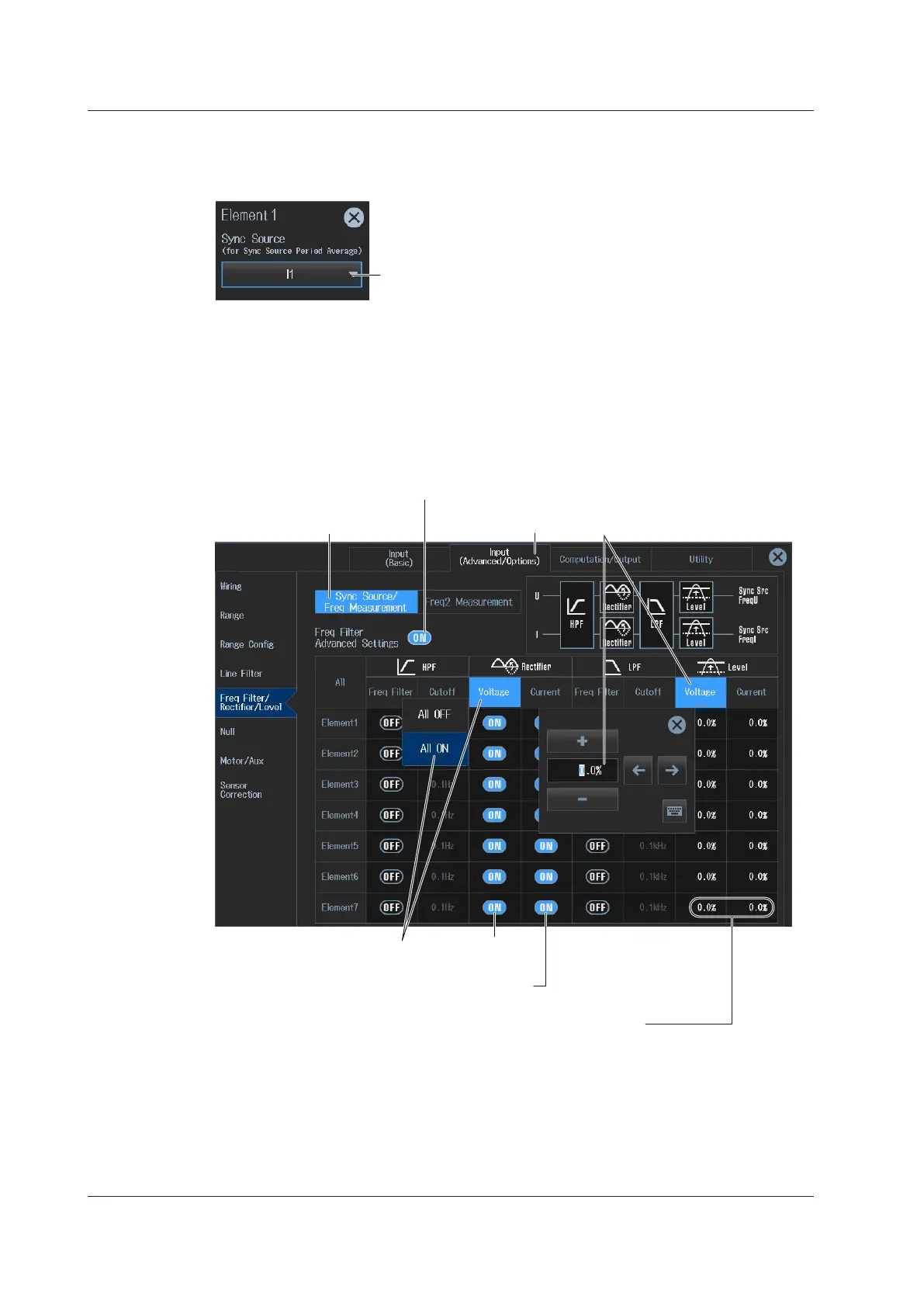

2.8 Set the Measurement Period
Setting the Sync Source (Sync Source)
3.
Tap Sync Source. A sync source setup screen appears.
Sync source (example of element 1)
Set the sync source (U1 to U7, I1 to I7, Ext Clk, Z Phase1 (Ch D),
Z Phase3 (Ch H), None).
Setting the Cross Level (Level)
4.
Tap the Input (Advanced/Options) tab. An input settings (advanced/options) overview screen
appears.
Pressing ESC closes the overview screen.
5.
Tap Freq Filter/Rectifier/Level. A frequency filter setup screen appears.
6.
Tap Sync Source/Freq Measurement. A Sync Source/Freq Measurement (sync source/
frequency measurement) screen appears.
Input (Advanced/
Options) tab
Turns freq filter advanced settings on or off
Sync Source/Freq Configure
the measurement.
By tapping Voltage or Current,
you can turn on or off the
feature on all elements
collectively.
Turns the voltage
rectifier on or off
Turns the current
rectifier on or off
Set the voltage or current cross level.
When the rectifier feature is off: -100.0% to 100.0%, in 0.1% steps
When the rectifier feature is on: 0.0% to 100.0%, in 0.1% steps
By tapping Voltage or Current, you
can set the value collectively for
all elements.
You can use the voltage and current cross level settings
when the high-pass filter (HPF) is set to OFF or when
the rectifier feature is set to ON.
To Next Page
