6.3 Trend Display
Setting the Graph Display Type (Graph)
4.
Tap Graph to select Trend.
Switching the Displayed Group (Group)
5.
Tap Group to select a group from Group1 to Group4.
You can select up to four groups. The Item and Form settings, explained later, are applied to the group
numbers you select in this step.
Switching the Display Group When Displaying Trends
Like the graph display, flick to switch the display group (see section 6.2).
Switching the Displayed Items (Items)
Select the voltages and currents of the input elements to be displayed with trends.
6.

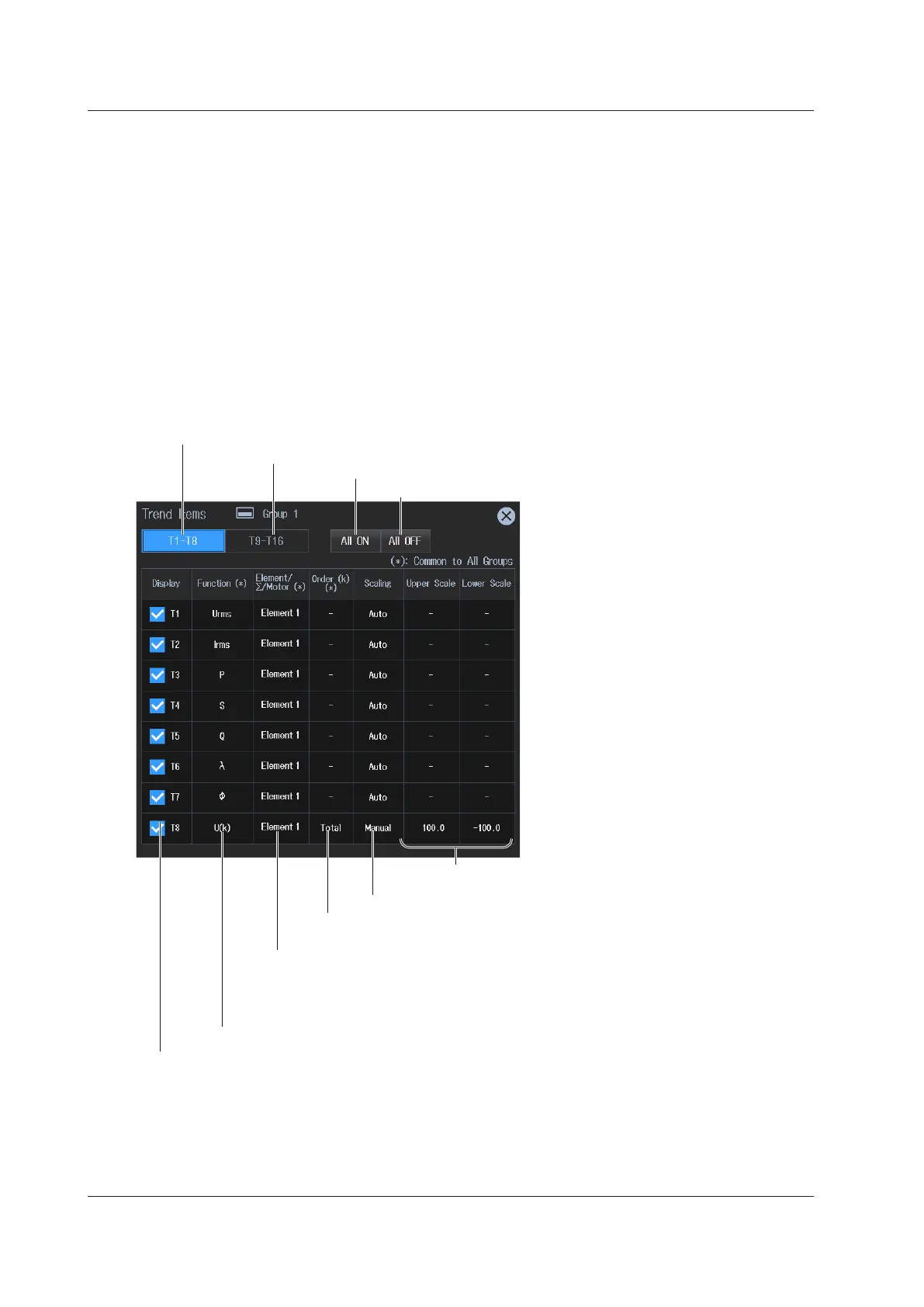

Tap Items. A Trend Items screen appears.
Turns the display of all waveforms on
Turns the display of all waveforms off
Set the graphs of trend 1 to trend 8.
Set the graphs of trend 1 to trend 8.
Set the upper and lower limits (–9.999 T to 9.999 T).
These settings can be set when vertical scale mode is set to Manual.
Select the vertical scale's setup method (Auto, Manual).
Set the harmonic order (Total, 0 to 500).
You can set this setting when the measurement function includes a harmonic order.
Set the measurement function (for details on the various measurement functions, see “Items
That This Instrument Can Measure” in the features guide).
Select the trends that you want to display.
Items that are marked with (*) are
shared among all groups.
Selects the input element or wiring unit to be configured
• Input element options
When the displayed item is set to something other than motor evaluation: Element1 to Element7
When the displayed item is set to motor evaluation: Motor1 to Motor4
• Wiring unit options: ΣA, ΣB, ΣC
