1-8
IM WT5000-02EN
Sensor Correction Settings (Sensor Correction) ► section 2.6
3.

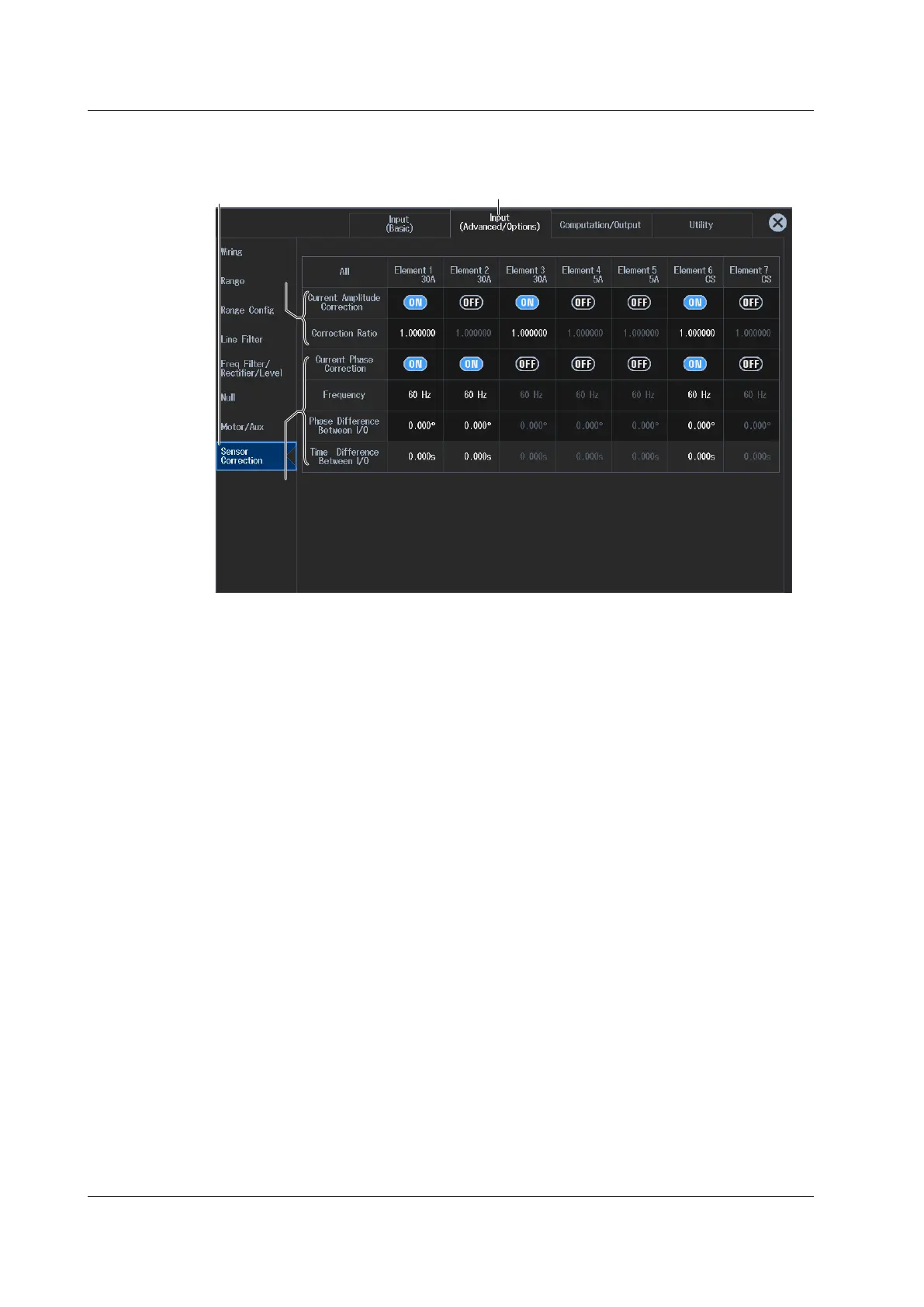

Tap Sensor Correction. A sensor correction screen appears.
Input (Advanced/Options) tab
Sensor Correction button
Current
amplitude
correction
Current phase
correction
1.2 Input Settings Overview
