37
Introduction
Control Panel Display
8/23/12 P1051584-002

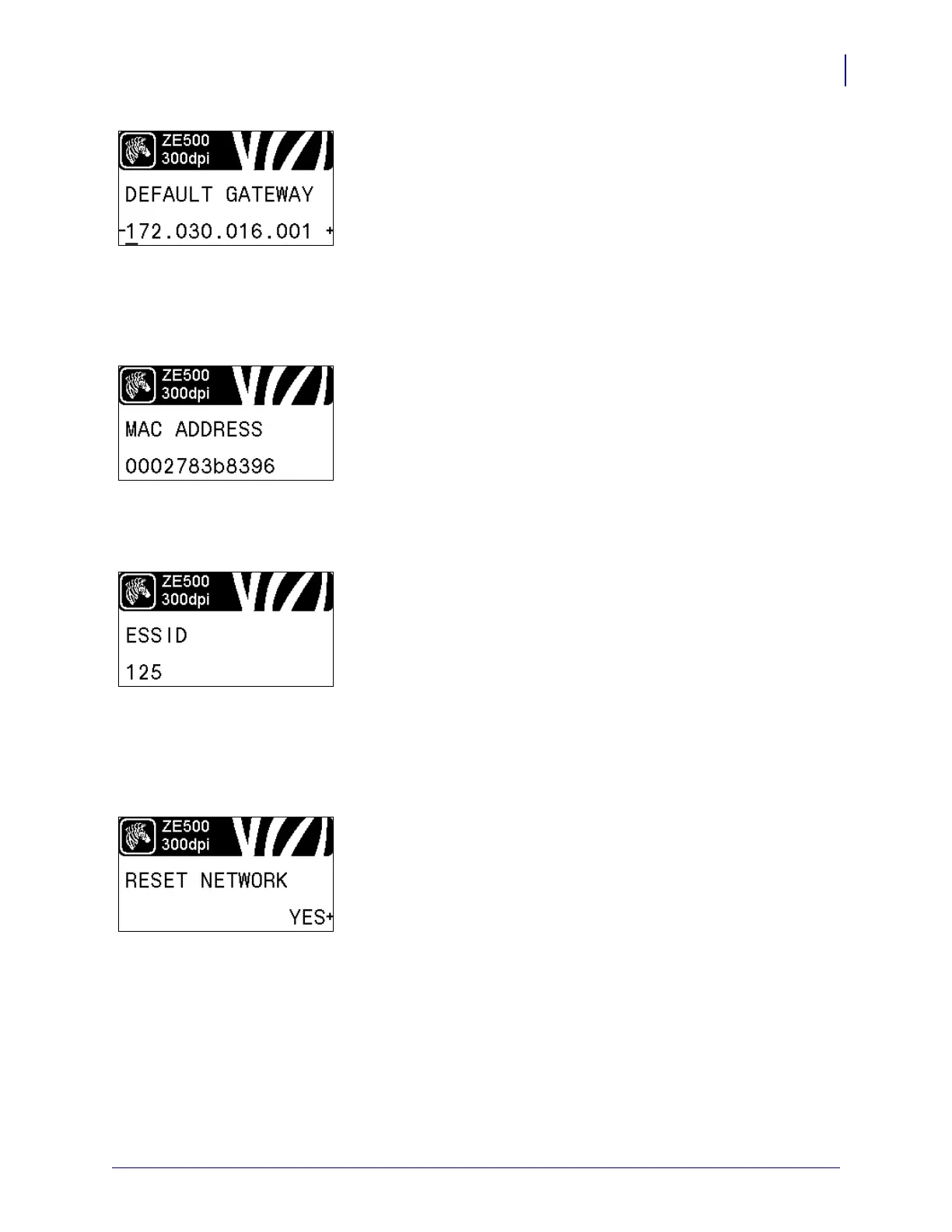

Set the Default Gateway*
View and, if necessary, change the default gateway.
Changes are saved only if IP PROTOCOL is set to PERMANENT.
To allow any saved changes to take effect, use
RESET NETWORK
on page 37 to reset the print server.
See Default Gateway on page 91 for more information.
* This menu item appears only if a wired or wireless print server
is installed in your printer.
View the MAC Address*
View the Media Access Control (MAC) address of the print server
that is installed in the printer (wired or wireless).
See MAC Address on page 91 for more information.
* This menu item, which cannot be modified from the control
panel, appears only if a wired or wireless print server is
installed in your printer.
View the ESSID Value*
The Extended Service Set Identification (ESSID) is an identifier
for your wireless network. This setting, which cannot be modified
from the control panel, gives the ESSID for the current wireless
configuration.
See ESSID on page 92 for more information.
* This menu item, which cannot be modified from the control
panel, appears only if a wireless print server is installed in your
printer.
Reset the Network Settings*
This option resets the wired or wireless print server. You must reset
the print server to allow any changes to the network settings to take
effect.
See Reset Network on page 92 for more information.
* This menu item appears only if a wired or wireless print server
is installed in your printer.
