Chapter 2 User Setup Guide
Basic Home Station VDSL2 P8701T User’s Guide
57

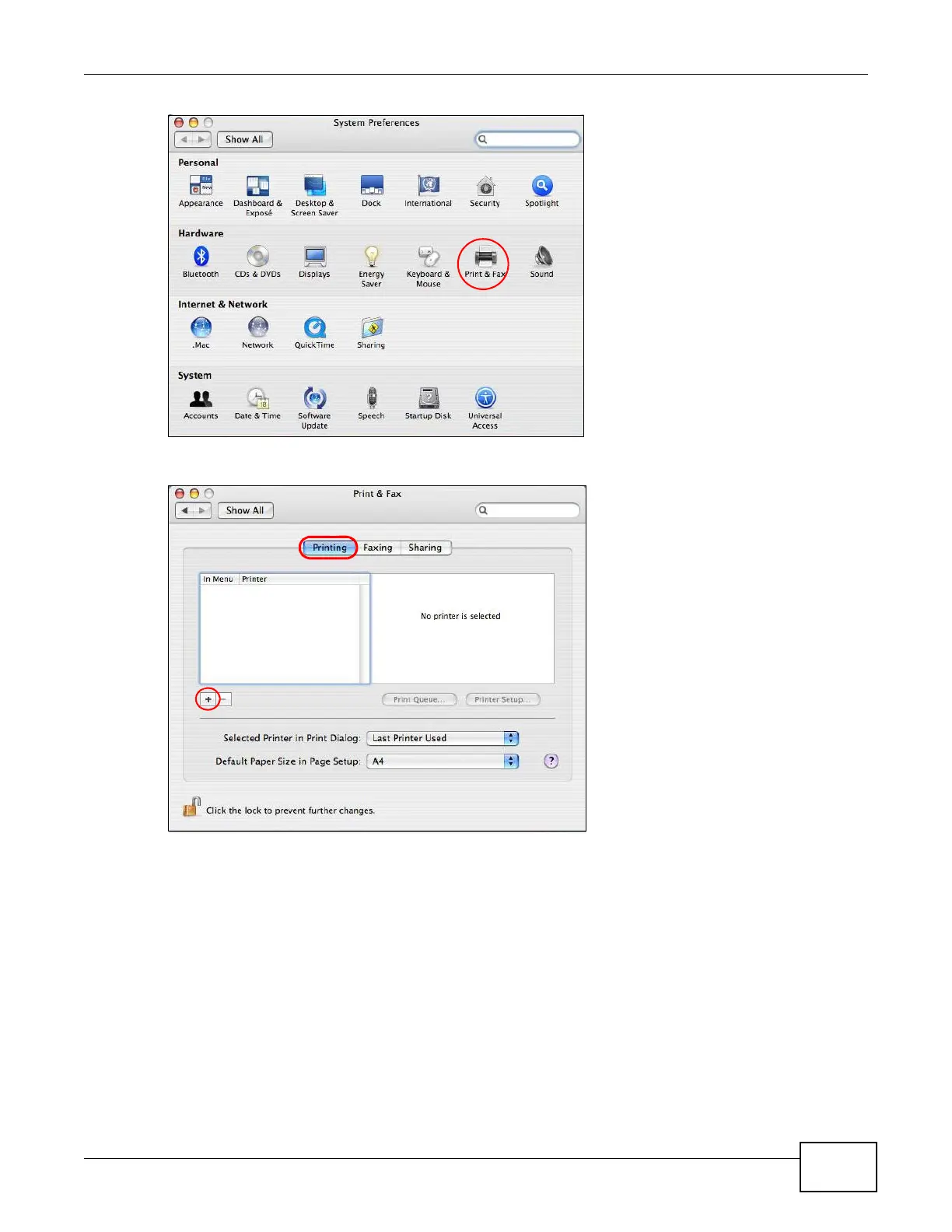

5 Select the Printing tab and click the + icon to add a new printer.
6 Click the Advanced button on the Add Printer toolbar to set up your printer.
If the Advanced button doesn’t appear, Ctrl-click the toolbar, select Customize Toolbar... and
then drag the Advanced button onto the toolbar.
•Select Internet Printing Protocol (HTTP) from the Type drop-down list.
•Select Another Device from the Device drop-down list.
•In the URL field, enter “http://192.168.1.1:631/printers/USB_PRINTER” as the URL to
access the print server (VDSL Router).
Note: If you change the VDSL Router’s LAN IP address, use the new IP address in the URL
to access the print server.
• Enter a descriptive name for the printer and where it is located.
