3D Systems ProX 800 User Manual

3D Systems, Inc.
73

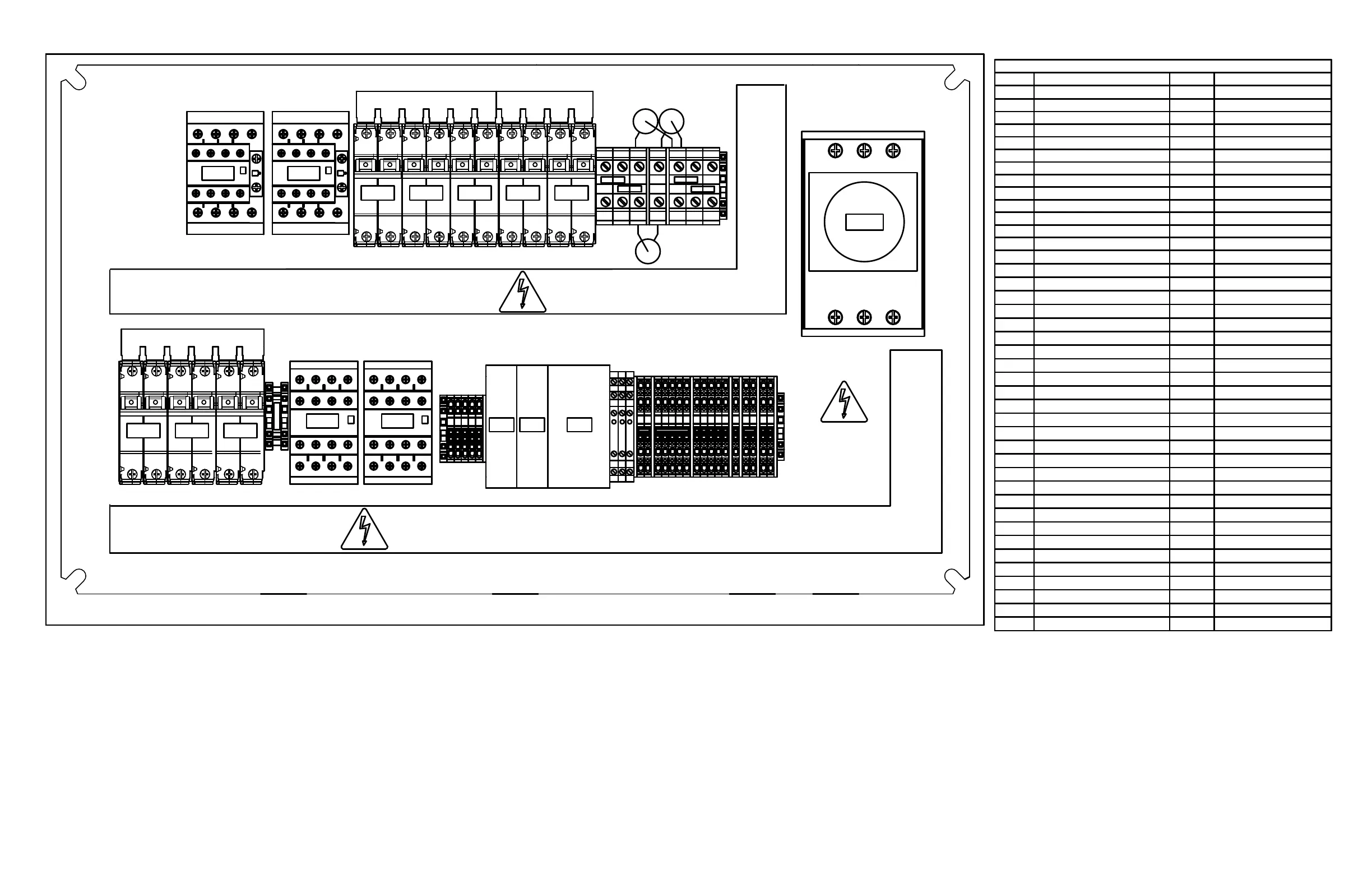

POWER PANEL LAYOUT PLACARD
CB2 CB3 CB4 CB5 CB6
CB1
CB7 CB8
K1
K2
ES1 ES2 ES3
K3
K4
TB2
CR1
CR3
1 1 2
2 2
2
2
3
4 5
6
7
8
9 9
10 11
1
1 1
CR2
TB2
TB1
2
2 2
GND
A B C
D E
287372-00
CB9
Component Component Specication Load Rating Load
CB1
30A, 480VAC IC=35kA
28A MAIN BREAKER
CB2
20A, 240VAC IC=10kA
2250W ESTOP CIRCUIT LOADS
CB3
6A, 240VAC IC=10kA
400W COMPUTER
CB4
8A, 240VAC IC=10kA
1000W CCB POWER
CB5
6A, 240VAC IC=10kA
600W MDB POWER
CB6
5A, 240VAC IC=10kA
1450W LASER
CB7
5A, 240VAC IC=10kA
850W AIR HEATER
CB8
8A, 240VAC IC=10kA
1200W RDM HEATER
CB9
5A, 240VAC IC=10kA
200W ELEVATOR
K1
IEC CONTACTOR 30A, 24V COIL
2250W ESTOP CIRCUIT
K2
IEC CONTACTOR 30A, 24V COIL
2250W ESTOP CIRCUIT
K3
IEC CONTACTOR 12A, 24V COIL
200W DOOR SWITCH CIRCUIT
K4
IEC CONTACTOR 12A, 24V COIL
200W DOOR SWITCH CIRCUIT
CR1
RELAY 3A SPST, 24V COIL
< 1W ESTOP CIRCUIT
CR2
RELAY 3A SPST, 24V COIL
< 1W DOOR SW CIRCUIT
CR3
RELAY 6A SPST, 24V COIL
1.5W DOOR SW CIRCUIT
TB1-1
TERMINAL BLOCK, ST6 52A
46A LINE
TB1-2
TERMINAL BLOCK, ST6 52A
46A LINE
GND
GND TERMINAL BLOCK, ST6
N/A
GND
TB2-1
TERMINAL BLOCK PIT2.5 QUAT
N/A
24VDC
TB2-2
TERMINAL BLOCK PIT2.5 QUAT
N/A
24R
TB2-3
TERMINAL BLOCK PIT2.5 QUAT
N/A
ESTOP
TB2-4
TERMINAL BLOCK PIT2.5 QUAT
N/A
211
TB2-5
TERMINAL BLOCK PIT2.5 QUAT
N/A
111
TB2-6
TERMINAL BLOCK PIT2.5 QUAT
N/A
215
TB2-7
TERMINAL BLOCK PIT2.5 QUAT
N/A
115
TB2-8
TERMINAL BLOCK PIT2.5 QUAT
N/A
24V-ES1
TB2-9
TERMINAL BLOCK PIT2.5 QUAT
N/A
24V-ES3
TB2-10
TERMINAL BLOCK PIT2.5 QUAT
N/A
DSTAT
TB2-11
TERMINAL BLOCK PIT2.5 QUAT
N/A
24V-SOL
TB2-A TERMINAL BLOCK ST2.5
N/A
BYPASS
TB2-B TERMINAL BLOCK ST2.5
N/A
SSL
TB2-C TERMINAL BLOCK ST2.5
N/A
START LT
TB2-D TERMINAL BLOCK ST2.5
N/A
CLS
TB2-E TERMINAL BLOCK ST2.5
N/A
ENA STAT
ES1 ESTOP MONITOR
N/A
ESTOP SWITCHES
ES2 DOOR SWITCH MONITOR
N/A
DOOR & WINDOW SWITCHES
ES3 DOOR SWITCH MONITOR
N/A
IPM DOOR SWITCHES
