ABB ACS880-104

Parameters 193
11.09 DIO2 function Selects whether DIO2 is used as a digital output or input, or a
frequency output.
Output
Output DIO2 is used as a digital output. 0
Input DIO2 is used as a digital input. 1
Frequency DIO2 is used as a frequency output. 2
11.10 DIO2 output source Selects a drive signal to be connected to digital input/output
DIO2 when parameter 11.09 DIO2 function is set to Output.
For the available selections, see parameter 11 .06 DIO1
output source.
Running

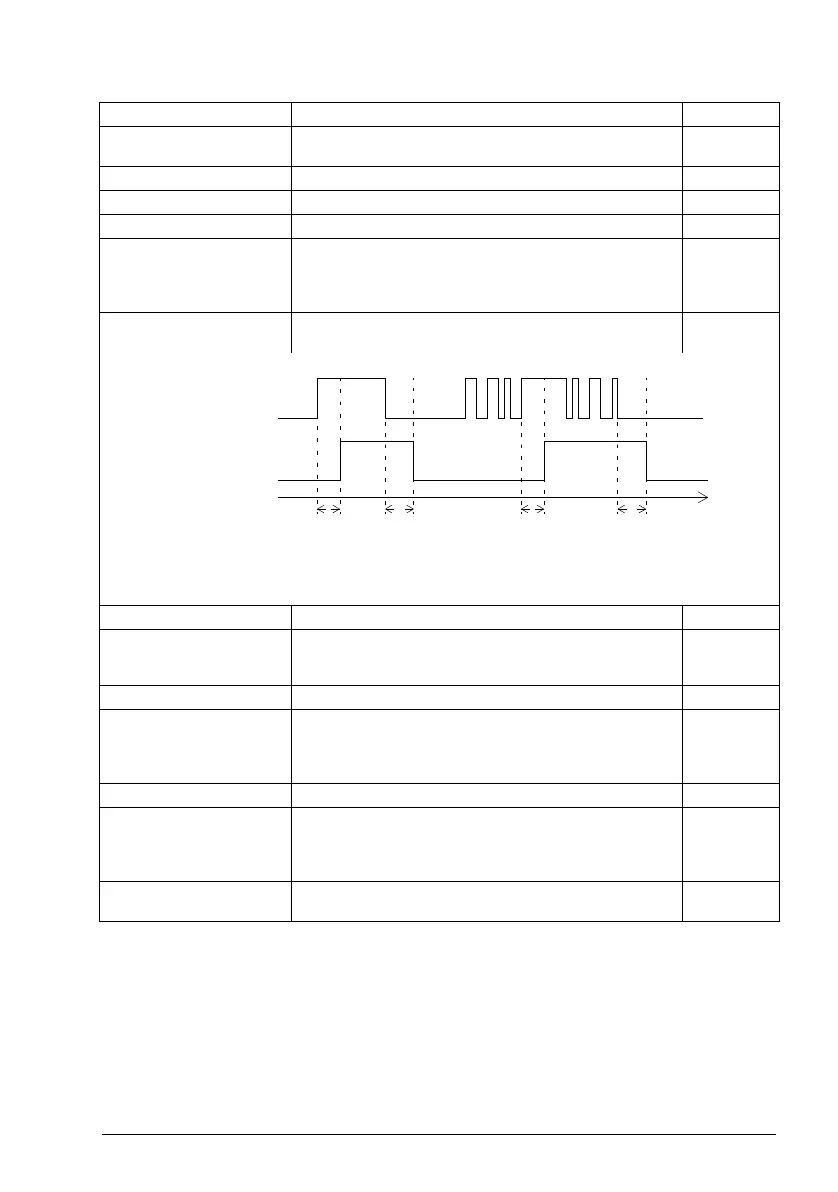

11.11 DIO2 ON delay Defines the activation delay for digital input/output DIO2
(when used as a digital output or digital input).
0.0 s
t
On
= 11.11 DIO2 ON delay
t
Off
= 11.12 DIO2 OFF delay
*Electrical status of DIO (in input mode) or status of selected source (in output mode). Indicated by 11.01 DIO status.
**Indicated by 11.02 DIO delayed status.
0.0 … 3000.0 s Activation delay for DIO2. 10 = 1 s
11.12 DIO2 OFF delay Defines the deactivation delay for digital input/output DIO2
(when used as a digital output or digital input). See parameter
11.11 DIO2 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for DIO2. 10 = 1 s
11.38 Freq in 1 actual
value
Displays the value of frequency input 1 (via DIO1 when it is
used as a frequency input) before scaling. See parameter
11.42 Freq in 1 min.
This parameter is read-only.
-
0 … 16000 Hz Unscaled value of frequency input 1. 1 = 1 Hz
11.39 Freq in 1 scaled Displays the value of frequency input 1 (via DIO1 when it is
used as a frequency input) after scaling. See parameter 11.42
Freq in 1 min.
This parameter is read-only.
-
-32768.000 …
32767.000
Scaled value of frequency input 1. 1 = 1
No. Name/Value Description Def/FbEq16
1
0
1
0
t
On
t
Off
t
On
t
Off
*DIO status
**Delayed DIO status
Time
