ABB ACS880-104

Parameters 207
RO/DIO control
word bit8
Bit 8 of 10.99 RO/DIO control word (see page 191). 43
RO/DIO control
word bit9
Bit 9 of 10.99 RO/DIO control word (see page 191). 44
Other [bit] Source selection (see Terms and abbreviations on page 148). -

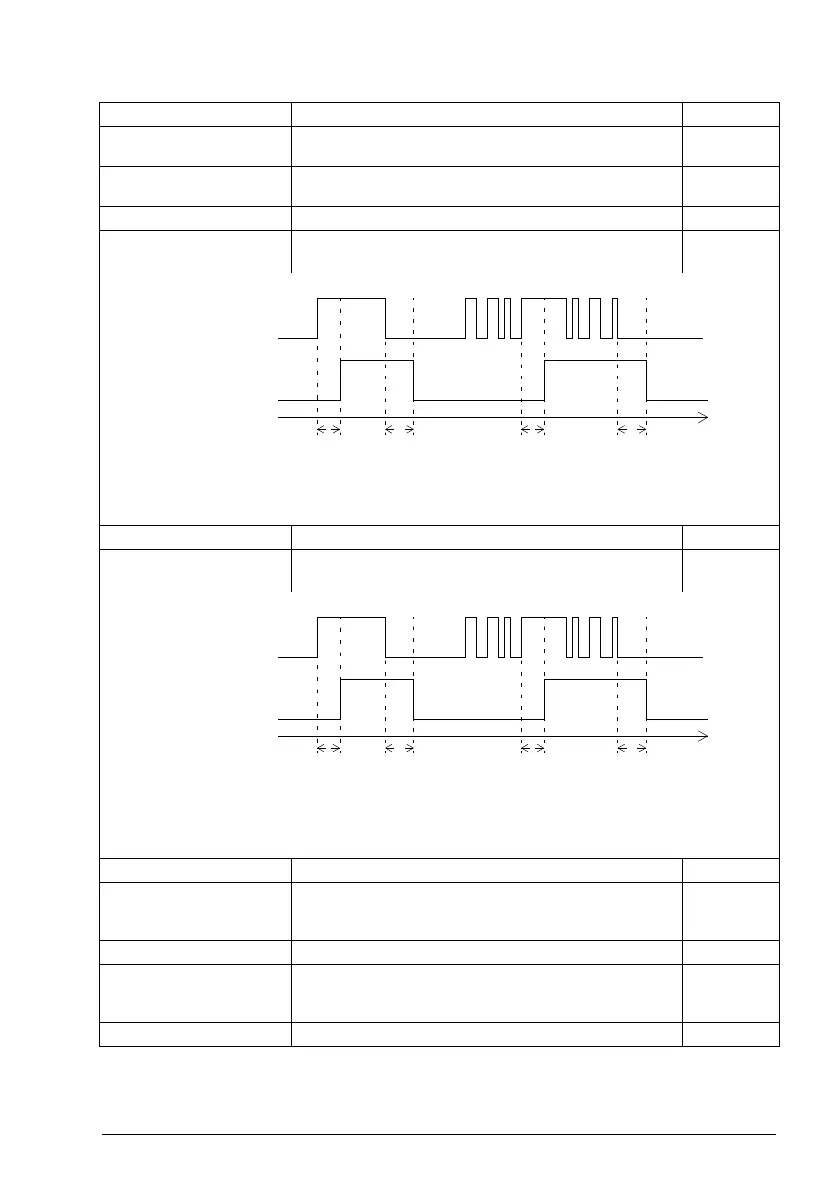

14.12 DI1 ON delay (Visible when 14.01 Module 1 type = FDIO-01)
Defines the activation delay for digital input DI1.
0.00 s
t
On
= 14.12 DI1 ON delay
t
Off
= 14.13 DI1 OFF delay
*Electrical status of DI or status of selected source (in output mode). Indicated by 14.05 DI status.
**Indicated by 14.06 DI delayed status.
0.00 … 3000.00 s Activation delay for DI1. 10 = 1 s
14.12 DIO1 ON delay (Visible when 14.01 Module 1 type = FIO-01 or FIO-11)
Defines the activation delay for digital input/output DIO1.
0.00 s
t
On
= 14.12 DIO1 ON delay
t
Off
= 14.13 DIO1 OFF delay
*Electrical status of DIO (in input mode) or status of selected source (in output mode). Indicated by 14.05 DIO
status.
**Indicated by 14.06 DIO delayed status.
0.00 … 3000.00 s Activation delay for DIO1. 10 = 1 s
14.13 DI1 OFF delay (Visible when 14.01 Module 1 type = FDIO-01)
Defines the deactivation delay for digital input DI1. See
parameter 14.12 DI1 ON delay.
0.00 s
0.00 … 3000.00 s Deactivation delay for DI1. 10 = 1 s
14.13 DIO1 OFF delay (Visible when 14.01 Module 1 type = FIO-01 or FIO-11)
Defines the deactivation delay for digital input/output DIO1.
See parameter 14.12 DIO1 ON delay.
0.00 s
0.00 … 3000.00 s Deactivation delay for DIO1. 10 = 1 s
No. Name/Value Description Def/FbEq16
1
0
1
0
t
On
t
Off
t
On
t
Off
*DI status
**Delayed DI status
Time
1
0
1
0
t
On
t
Off
t
On
t
Off
*DIO status
**Delayed DIO status
Time
