Parameters 217
mA Milliamperes. 10
14.60 AI3 unit selection (Visible when 14.01 Module 1 type = FIO-11)
Selects the unit for readings and settings related to analog
input AI3.
Note: This setting must match the corresponding hardware
setting on the I/O extension module (see the manual of the
I/O extension module). The hardware setting is shown by
parameter 14.59 AI3 HW switch position. I/O module reboot
either by cycling the power or through parameter 96.08
Control board boot is required to validate any changes in the
hardware settings.
mA
VVolts. 2
mA Milliamperes. 10
14.61 AI3 filter gain (Visible when 14.01 Module 1 type = FIO-11)
Selects a hardware filtering time for AI3.
See also parameter 14.62 AI3 filter time.
1 ms
No filtering No filtering. 0
125 us 125 microseconds. 1
250 us 250 microseconds. 2
500 us 500 microseconds. 3
1 ms 1 millisecond. 4
2 ms 2 milliseconds. 5
4 ms 4 milliseconds. 6
7.9375 ms 7.9375 milliseconds. 7

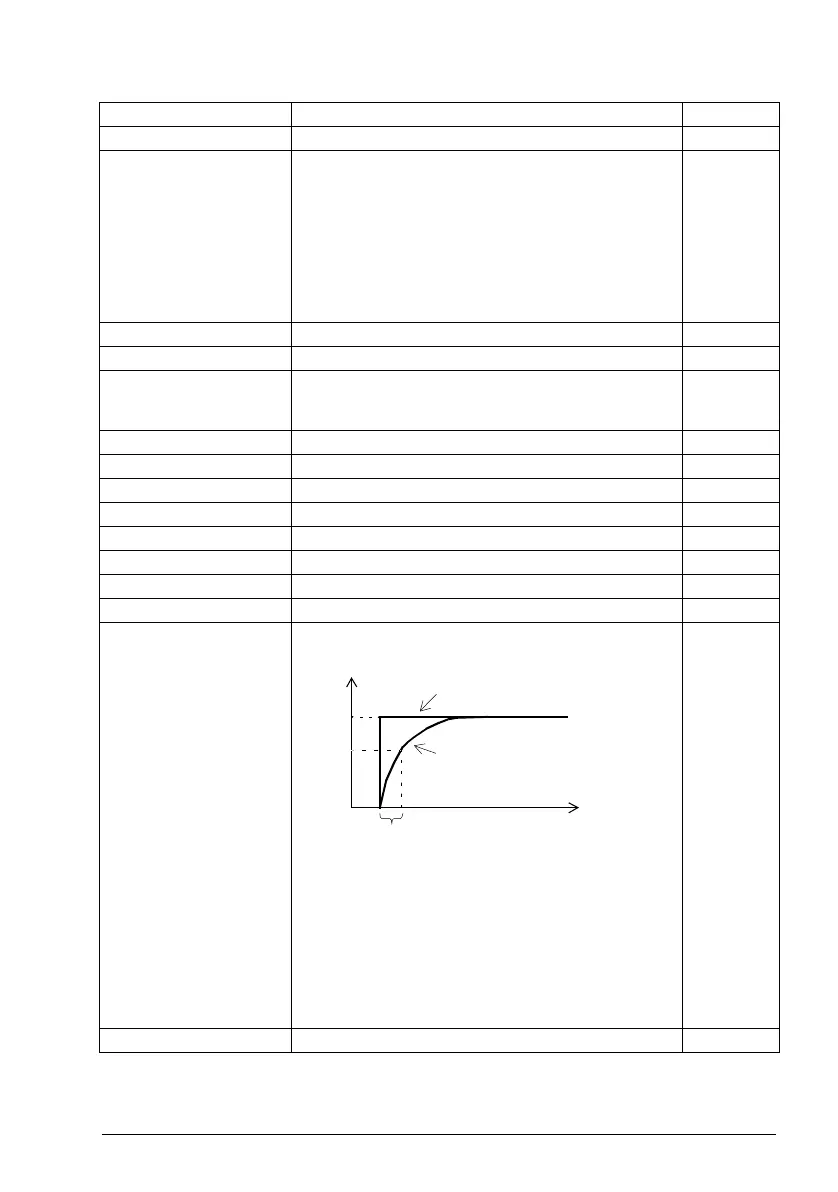

14.62 AI3 filter time (Visible when 14.01 Module 1 type = FIO-11)
Defines the filter time constant for analog input AI3.
Note: The signal is also filtered due to the signal interface
hardware. See parameter 14.61 AI3 filter gain.
0.100 s
0.000 … 30.000 s Filter time constant. 1000 = 1 s
No. Name/Value Description Def/FbEq16
63
%
100
T
t
O = I × (1 - e
-t/T
)
I = filter input (step)
O = filter output
t = time
T = filter time constant
Unfiltered signal
Filtered signal
