ABB ACS880-104

216 Parameters
14.50 AI2 scaled at AI2
min
(Visible when 14.01 Module 1 type = FIO-11 or FAIO-01)
Defines the real value that corresponds to the minimum
analog input AI2 value defined by parameter 14.48 AI2 min.
0.000
-32768.000 …
32767.000
Real value corresponding to minimum AI2 value. 1 = 1
14.51 AI2 scaled at AI2
max
(Visible when 14.01 Module 1 type = FIO-11 or FAIO-01)
Defines the real value that corresponds to the maximum
analog input AI2 value defined by parameter 14.49 AI2 max.
See the drawing at parameter 14.50 AI2 scaled at AI2 min.
100.000
-32768.000 …
32767.000
Real value corresponding to maximum AI2 value. 1 = 1
14.56 AI3 actual value (Visible when 14.01 Module 1 type = FIO-11)
Displays the value of analog input AI3 in mA or V (depending
on whether the input is set to current or voltage).
This parameter is read-only.
-
-22.000 … 22.000
mA or V
Value of analog input AI3. 1000 = 1 mA
or V
14.57 AI3 scaled value (Visible when 14.01 Module 1 type = FIO-11)
Displays the value of analog input AI3 after scaling. See
parameter 14.65 AI3 scaled at AI3 min.
This parameter is read-only.
-
-32768.000 …
32767.000
Scaled value of analog input AI3. 1 = 1
14.58 AI3 force data (Visible when 14.01 Module 1 type = FIO-11)
Forced value that can be used instead of the true reading of
the input. See parameter 14.22 AI force selection.
0.000 mA
-22.000 … 22.000
mA or V
Forced value of analog input AI3. 1000 = 1 mA
or V
14.59 AI3 HW switch
position
(Visible when 14.01 Module 1 type = FIO-11)
Shows the position of the hardware current/voltage selector
on the I/O extension module.
Note: The setting of the current/voltage selector must match
the unit selection made in parameter 14.60 AI3 unit selection.
I/O module reboot either by cycling the power or through
parameter 96.08 Control board boot is required to validate
any changes in the hardware settings.
-
VVolts. 2
No. Name/Value Description Def/FbEq16

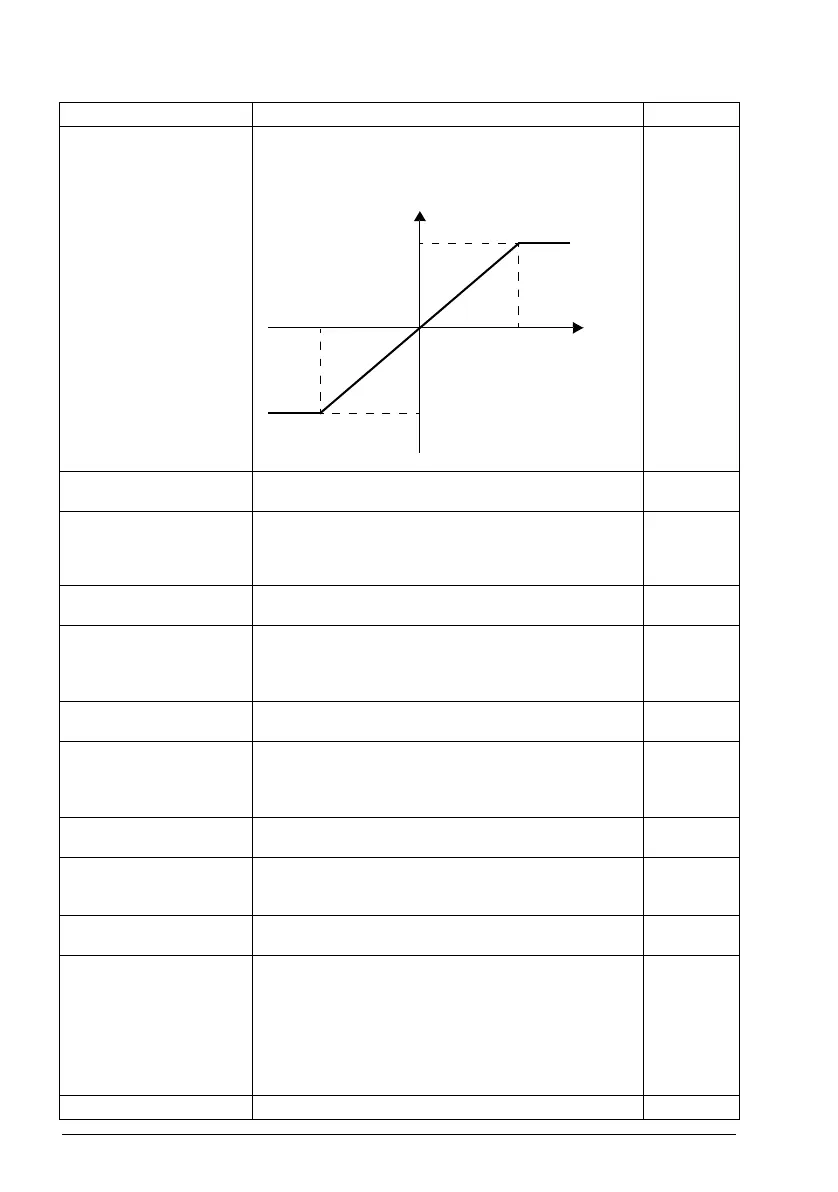

14.51
14.49
14.48
14.50
AI
in
(14.41)
AI
scaled
(14.42)
