14.80 AO1 source min (Visible when 14.01 Module 1 type = FIO-11 or FA IO - 0 1)
Defines the real value of the signal (selected by parameter
14.77 AO1 source) that corresponds to the minimum AO1
output value (defined by parameter 14.82 AO1 out at AO1 src
min).
0.0
-32768.0 …
32767.0
Real signal value corresponding to minimum AO1 output
value.
1 = 1
14.81 AO1 source max (Visible when 14.01 Module 1 type = FIO-11 or FA IO - 0 1)
Defines the real value of the signal (selected by parameter
14.77 AO1 source) that corresponds to the maximum AO1
output value (defined by parameter 14.83 AO1 out at AO1 src
max). See parameter 14.80 AO1 source min.
100.0
-32768.0 …
32767.0
Real signal value corresponding to maximum AO1 output
value.
1 = 1
14.82 AO1 out at AO1 src
min
(Visible when 14.01 Module 1 type = FIO-11 or FA IO-0 1)
Defines the minimum output value for analog output AO1.

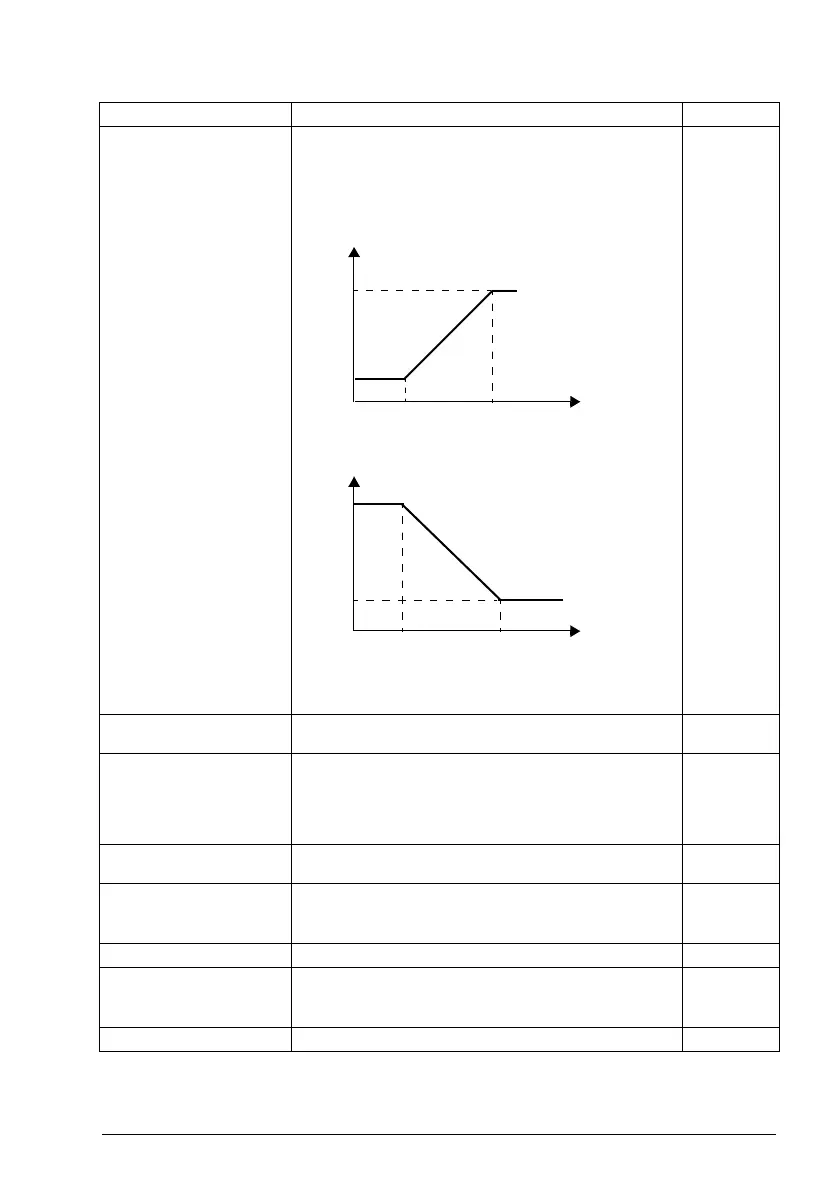

See also drawing at parameter 14.80 AO1 source min.
0.000 mA
0.000 … 22.000 mA Minimum AO1 output value. 1000 = 1 mA
14.83 AO1 out at AO1 src
max
(Visible when 14.01 Module 1 type = FIO-11 or FA IO-0 1)
Defines the maximum output value for analog output AO1.
See also drawing at parameter 14.80 AO1 source min.
10.000 mA
0.000 … 22.000 mA Maximum AO1 output value. 1000 = 1 mA
No. Name/Value Description Def/FbEq16
I
AO1
(mA)
14.83
14.82
14.81 14.80
14.8114.80
14.83
14.82
Signal (real)
selected by par.
14.77
I
AO1
(mA)
Signal (real)
selected by par.
14.77
