ABB ACSM1 Firmware Manual

Appendix B – Drive-to-drive link
394

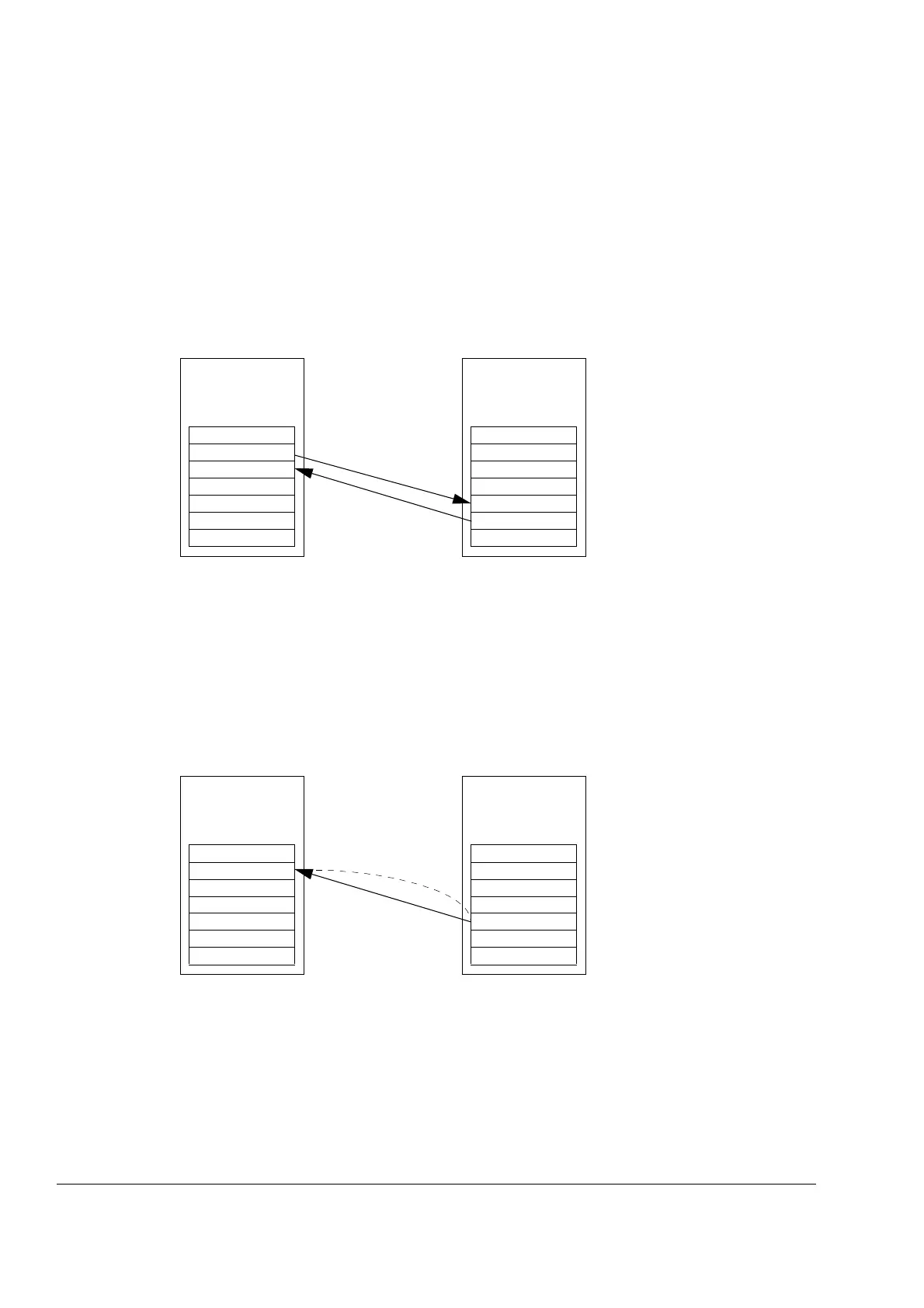

Master point-to-point messaging
In this type of messaging, the master sends one dataset (LocalDsNr) from its own
dataset table to the follower’s. TargetNode stands for the node address of the
follower; RemoteDsNr specifies the target dataset number.
The follower responds by returning the contents of the next dataset. The response is
stored into dataset LocalDsNr+1 in the master.
Note: Master point-to-point messaging is only supported at the master because the
response is always sent to node address 0 (the master).
Read remote messaging
The master can read a dataset (RemoteDsNr) from a follower specified by
TargetNode. The follower returns the contents of the requested dataset to the
master. The response is stored at dataset LocalDsNr in the master.
Note: Read remote messaging is only supported at the master because the
response is always sent to node address 0 (the master).
Master
Dataset table
(LocalDsNr)
(LocalDsNr+1)
TargetNode = X
57.03 NODE ADDRESS = X
Follower
Dataset table
(RemoteDsNr)
(RemoteDsNr+1)
Master
Dataset table
(LocalDsNr)
TargetNode = X
57.03 NODE ADDRESS = X
Follower
Dataset table
(RemoteDsNr)

ABB ACSM1 Specifications

General

Protection Class	IP20
Voltage Range	380 V to 480 V
Product Type Designation	ACSM1
Input Voltage	380-480 V AC
Communication Interfaces	Modbus RTU
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit, overload, overtemperature
Operating Temperature	-10°C to +40°C
Storage Temperature	-40°C to +70°C
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m
