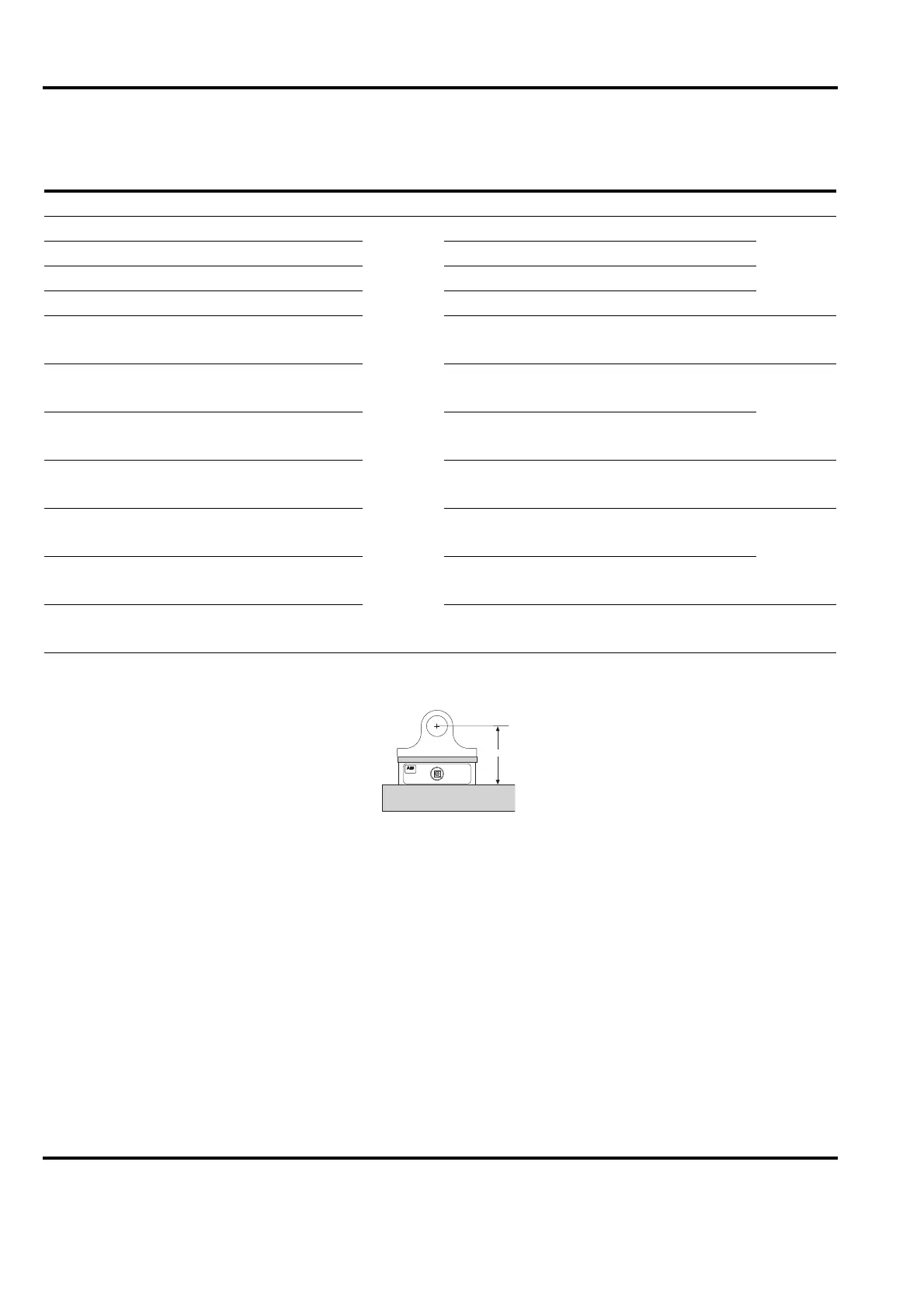

Appendix F PFCL 201 - Designing the Load Cell Installation
F-12 3BSE029382R0101 Rev C
Figure F-6. Building Height
Accuracy
Accuracy class
C/CD/CE
± 0.5
%
Linearity deviation < ± 0.3
Repeatability error < ± 0.05
Hysteresis < 0.2
Compensated temperature range +20 - +80
(+68 - +176)
C
F)
Zero point drift 50
(28)
ppm/K
(ppm/
F)
Sensitivity drift 100
(56)
Working temperature range –10 - +90
(+14 - +194)
C
F)
Zero point drift 100
(56)
ppm/K
(ppm/
F)
Sensitivity drift 200
(111)
Storage temperature range –40 - +90
(–40 - +194)
C
F)
Table F-3. Technical Data
Type PFCL 201 Unit
Pressductor
System
h
h
1) Definitions of direction designations “
V
”and “
A
” in
F
V
and F
A
are given in Section A.2.1.
2) F
max
and F
Vmax
are allowed at the same time.
3) Max. permitted load for the load cell is 10 × F
nom
.
The overload capacity for the total installation may
be limited by the screws.
