Tension Electronics PFEA113, User Manual
Chapter 2 Installation
2-10 3BSE029382R0101 Rev C
2.6 Installing Junction Box PFXC 141
PFXC 141 are normally used for connection of Pressductor
®
load cells. The cables fixed to the
load cells and the cable to the control unit are to be connected to the junction box.
The junction box PFXC 141 shall be mounted adjacent to the load cells and located in a
protected position easily accessible for service.
The junction box is mounted according to an order-specific drawing.
The dimensions of the junction box are shown in Figure 2-10.
Holes not used must be plugged.
For circuit diagram see Appendix A.6.4 Junction Box PFXC 141.

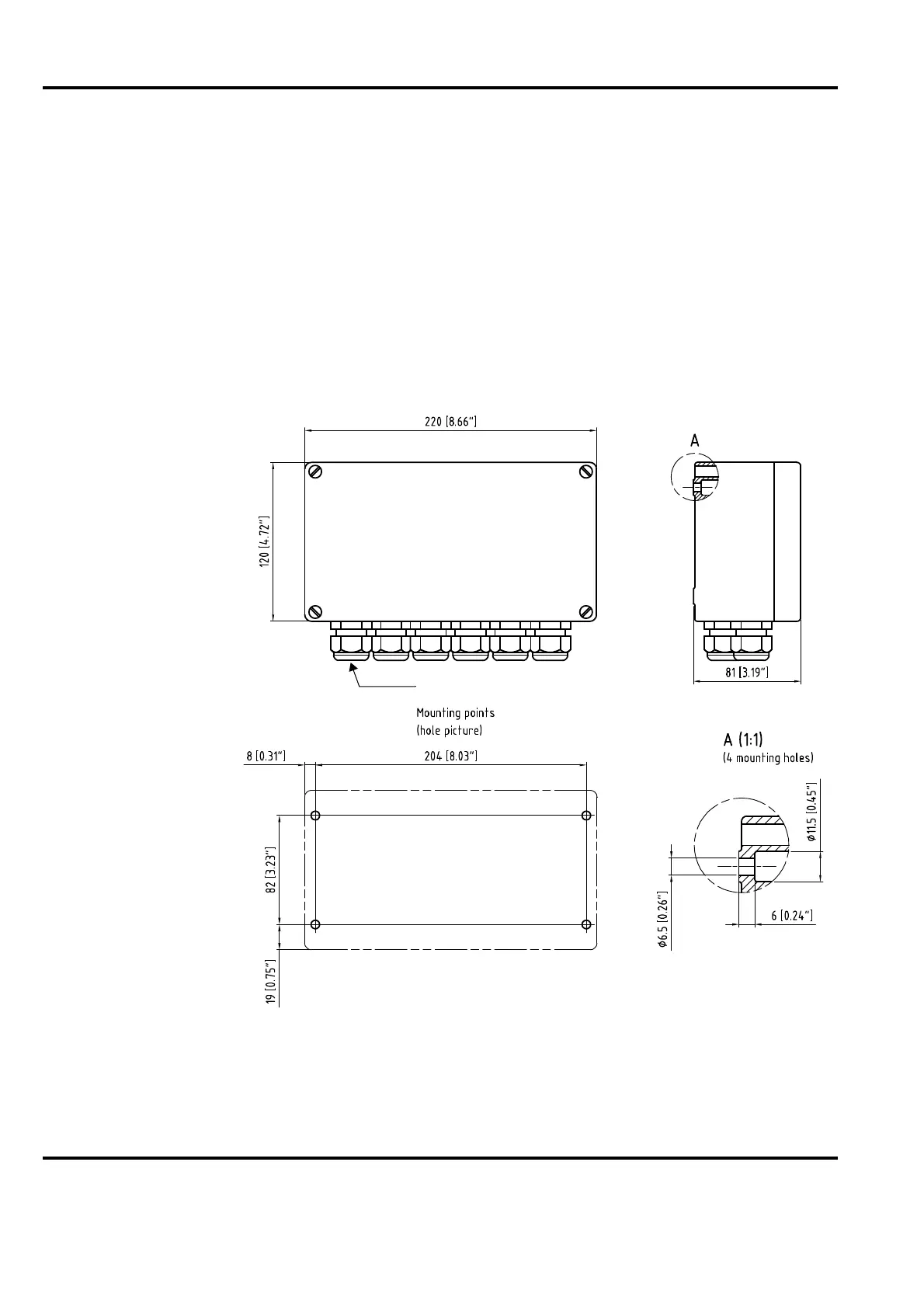

Figure 2-10. Dimensions of Junction Box PFXC 141
D = 6–12 mm (Cable gland Pg16)
(6 x)
