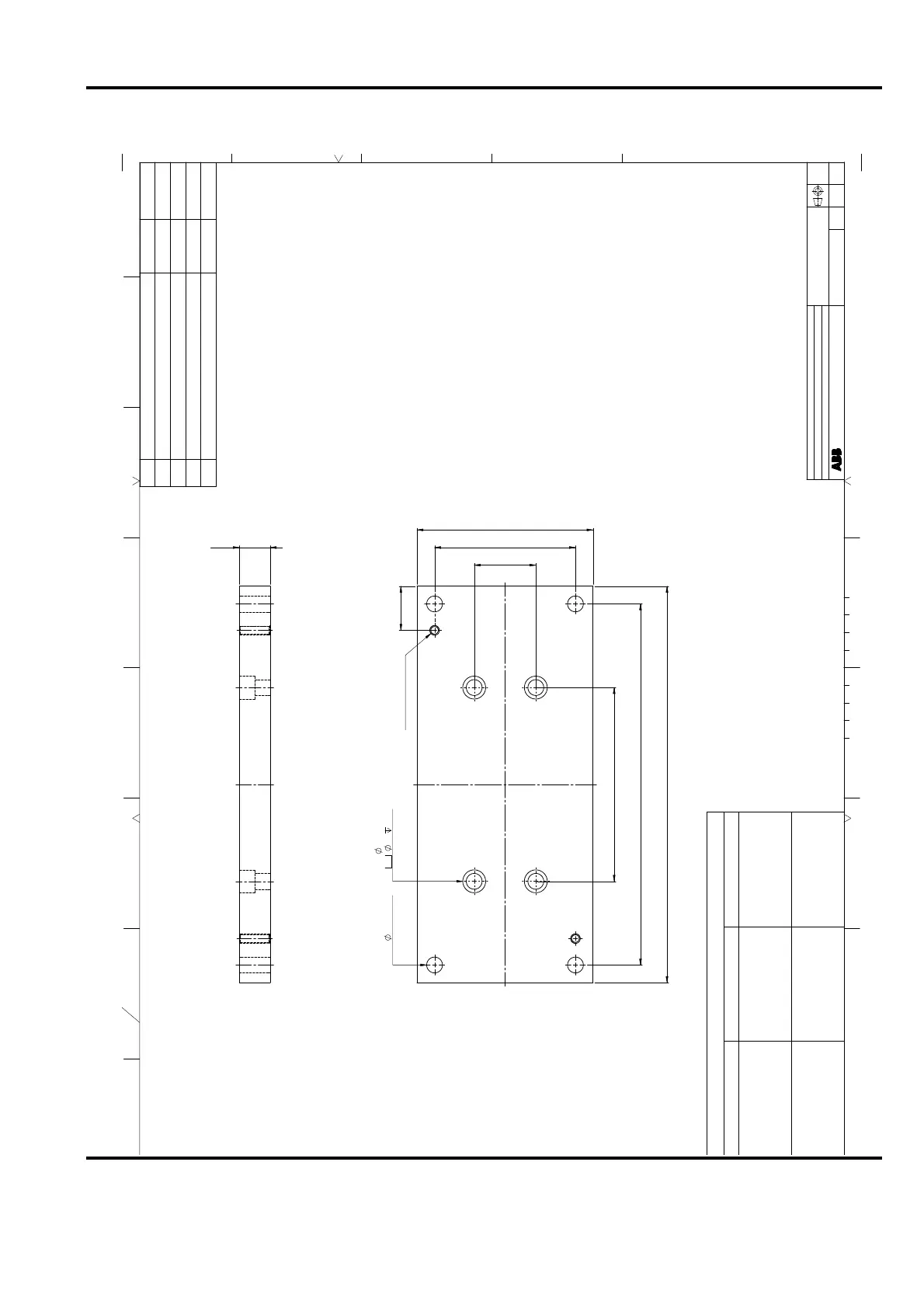

Upper adapter plate for:
PFCL 101 A•
PFCL 101 AE•
PFCL 201 C•
PFCL 201 CD•
PFCL 201 CE•
Manufacturing drawing: 3BSE030638D3000
Mass (weight): App. 24kg
REV DESCRIPTION DATE DEPT./INIT.
E Redrawn; PFCL201D added 2003-09-09 ATCE/FM/GF/RL
F Redrawn to match standard adapter plate manufacturing drawing 2009-04-22 PA/FM/GF/JK
G Drawing in S.W. was autocad 2011-04-14 PA/FM/GF/SF
H Table "Technical material" added 2012-12-18 PA/FM/GF/SF
Technical material
Material description Material specification Material designation
Steel, through
hardened
Hardness 300-400 HB
Yield stress > 500MPa (N/mm²)
CTE 11-13 μm/m/°C
Remanent magnetism of
finished detail must be less
than 2 Gauss (0-0,2mT)
34CrNiMo6+QT900
Toolox 33, Toolox 44
S690(+QT)
W.nr. 1.6582+QT900
ASTM 4340
or equivalent
Martensitic stainless
Steel
Hardness 300-400 HB
Yield stress > 400MPa (N/mm²)
CTE 11-13 μm/m/°C
Remanent magnetism of
finished detail must be less
than 2 Gauss (0-0,2mT)
X12CrMoS13+AT
X20Cr13+A
W.nr.1.4005+AT, 1.4021+A
ASTM 416, 420
or equivalent
!
!!
!
"
""
"
2012-12-20
Cont.sh./
No of sh.
SheetLang. Rev.
Project or order number :
Modify date :
Document number
Appr.
Prep.
Resp.dept
Product type designation :
Product information :
Product family :
661130 Bansp.mätare VPBT/HPBT
ABB AB
Håkan F Wintzell
2012-12-19Sven Fischer
1
1H
en
Öv.adapterplatta PFCL lastcell
Up.adapter plate PFCL loadcell
Dimension drawing
3BSE006699D0004
PA
PA
PA
FM/GF
FM/GF
FM/GF
Document status:
Approved
/
/
/
Customer erference :
26
18
(4x) 18 THRU
(4x)
18 THRU
220
410
450
70
160
200
50
for lifting eye bolt
(2x) M10
35
