3.4 Using the Panel Buttons
3.4.1 Navigating and Confirming
3.4.2 Changing Numerical Values and Parameters
• X indicates a numerical value.
• Z indicates that a parameter can be chosen from a list.
To change a numerical value, X, or parameter, Z, press . The numerical value or parameter is
then placed within brackets [XXXXXX] or [ZZ] to show that it can be changed.
If it is a “Z” parameter, use and to move up or down in the list. When the desired value
is shown on the display press . When is pressed the new parameter value is saved and
the brackets around the value disappear.
If you have pressed so that the parameter is enclosed by brackets, you can cancel the
entering mode by pressing . The selections made with and will not be stored. If
is pressed the old value is displayed without brackets.
To change a numerical value, press so that brackets appear around the value. Then the first
digit can be changed with and . When the first digit has the desired value press , then
the second digit can be changed with and . When pressing after the last digit has
been set, the new value is saved and displayed without brackets.
Using when entering a numerical value means returning to the previous digit. By pressing
a sufficient number of times you will leave the entering mode and the old value will be
displayed without brackets.

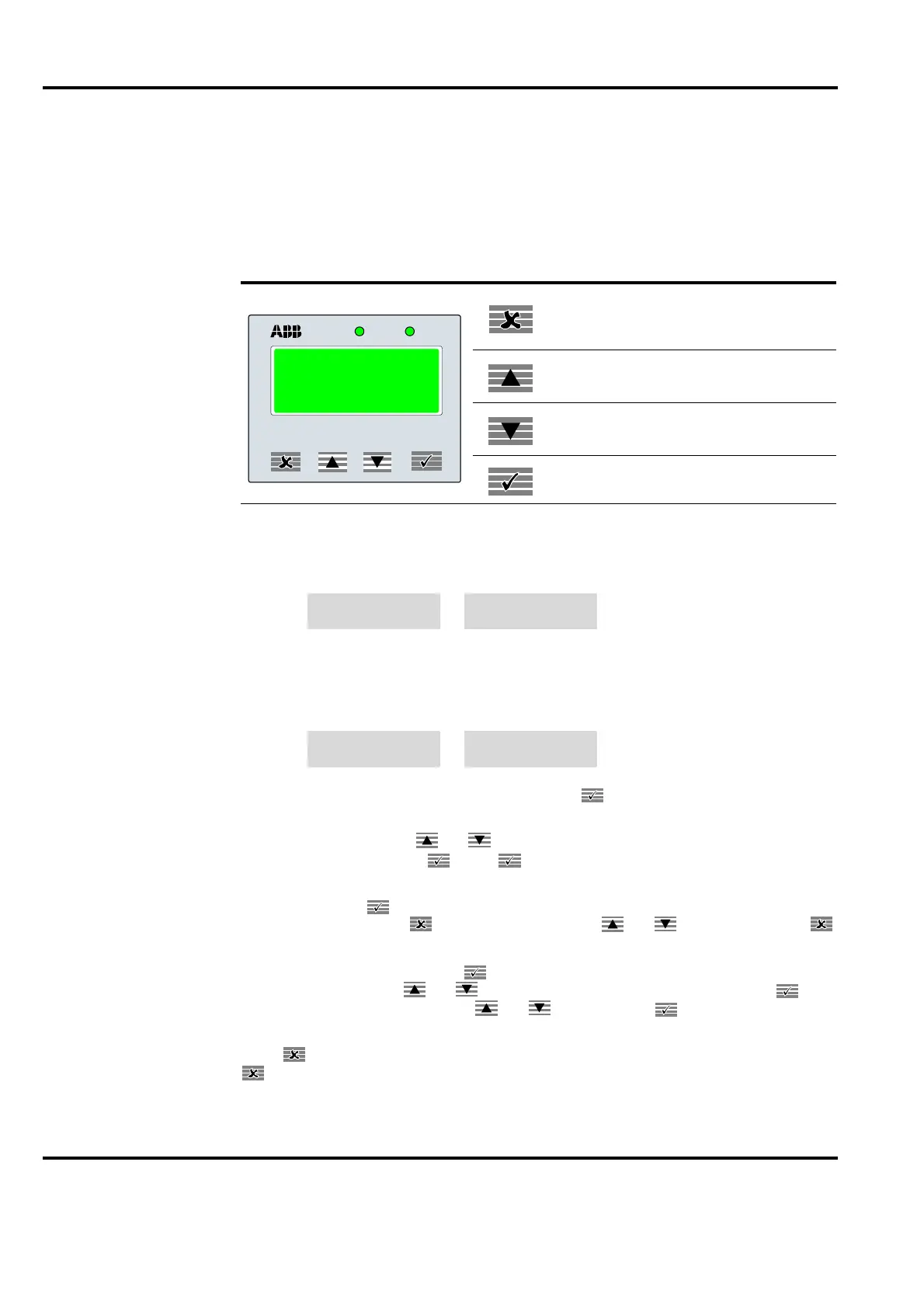

Display Button How to use it
Returns to previous menu. Sometimes
this button must be pressed repeatedly
to get back to the desired menu.
Steps up in a list.
Steps down in a list.
Steps to next main menu.
OK (acknowledgment) button. Confirms
a selection or a parameter setting.
Set language
[English]
Power Status
SetTensionAt10V
XXXXXX N
NominalLoad
ZZ kN ZZ lbs
SetTensionAt10V
[XXXXXX] N
Nominal load
[ZZ kN ZZ lbs]
