3.12 Complete Setup Sequence
This section provides a step-by-step description with detailed information about all available
setup menus with related parameters, data and settings.
3.12.1 Presentation Menu

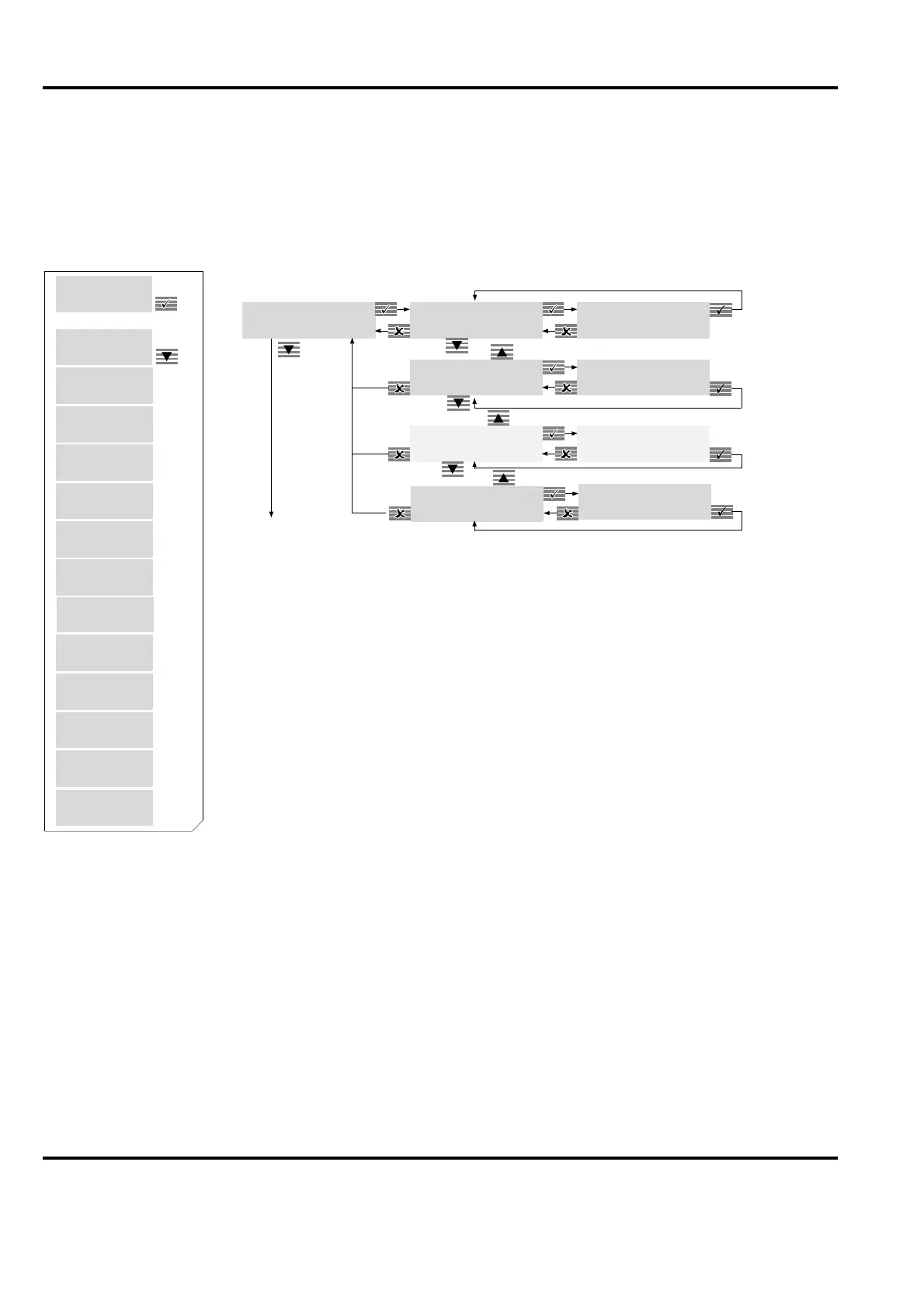

Figure 3-3. Main and Sub Menus of the Presentation Menu
Use up and down keys to select language [ZZ], unit [ZZZZ] and number of decimals [Z] from list.
The menu SetWebWidth will only be available when unit N/m, kN/m, kg/m or pli is selected.
3.12.1.1 Set Language
The following languages are available:
• English, German, Italian, French, Portuguese and Japanese
3.12.1.2 Set Unit
The following units can be set:
• N (Newton)
• kN (kiloNewton)
• kg (kilogram)
