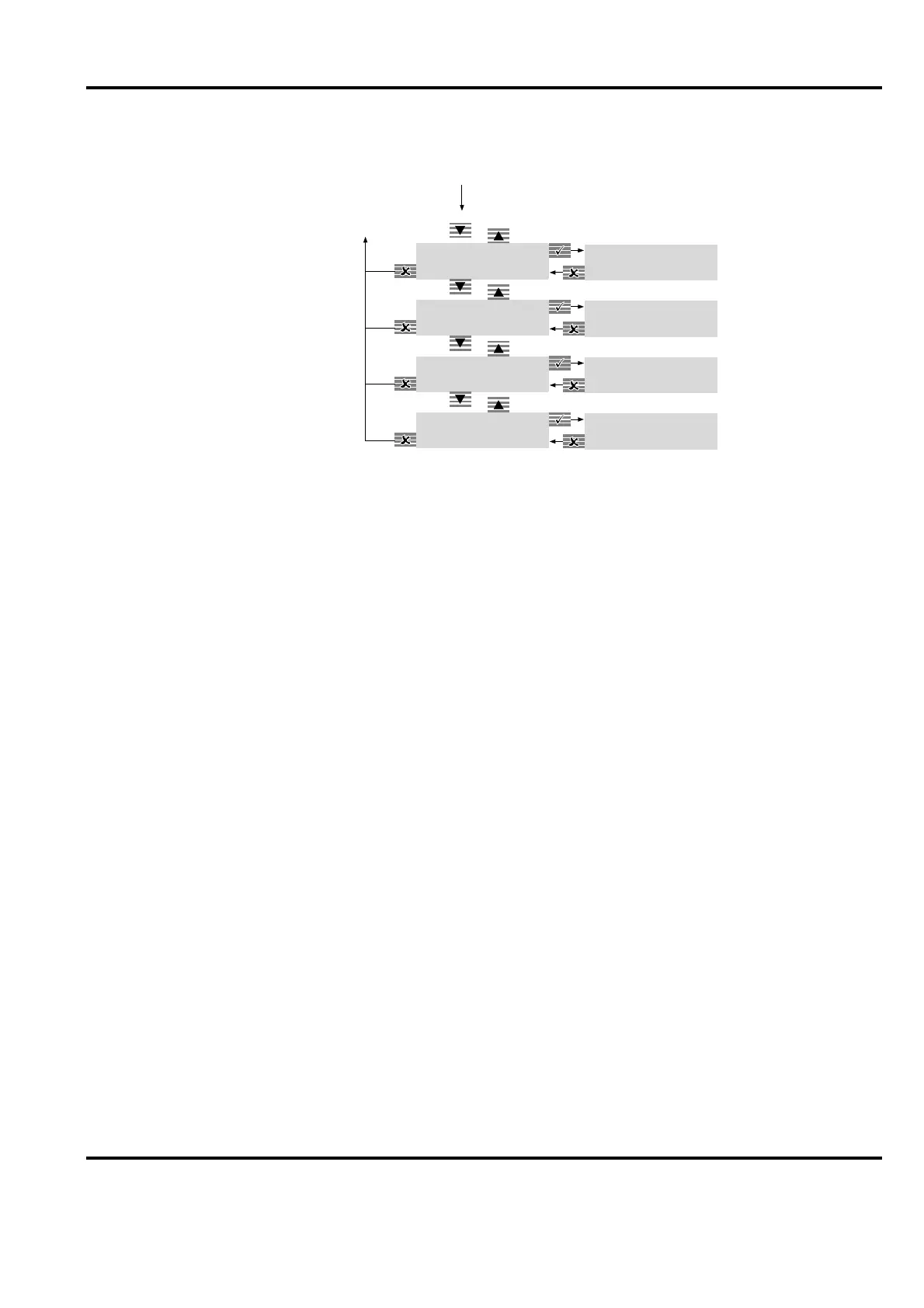

Figure 3-22. Service Menus (continued)
NOTE
Only menus for connected load cells are shown.
The service menu has parameters that can be viewed (displayed) only and parameters that can
be set.
• Parameters that can be viewed only:
– Version: XX.X
Displays PFEA113 software version.
– MaximumLoad A, MaximumLoad B, MaximumLoad C, MaximumLoad D
Displays maximum load (for connected load cells) since last reset.
– PresentOffset A, PresentOffset B, PresentOffset C, PresentOffset D
Displays zero offset (for connected load cells) at last zero set.
– Parameters that can be set for connected load cells:
Reset A zero sets MaximumLoad A
Reset B zero sets MaximumLoad B
Reset C zero sets MaximumLoad C
Reset D zero sets MaximumLoad D
PercentOfFnomA
XX %
PercentOfFnomA
[XX]
From
Simulation
To
Service menu
PercentOfFnomB
XX %
PercentOfFnomB
[XX]
PercentOfFnomC
XX %
PercentOfFnomC
[XX]
PercentOfFnomD
XX %
PercentOfFnomD
[XX]
