Product Overview
Product manual 2CKA001473B5343
29
Device overview (rear side)
8 7 6 5
10
4
21 3
12 1113
14
9

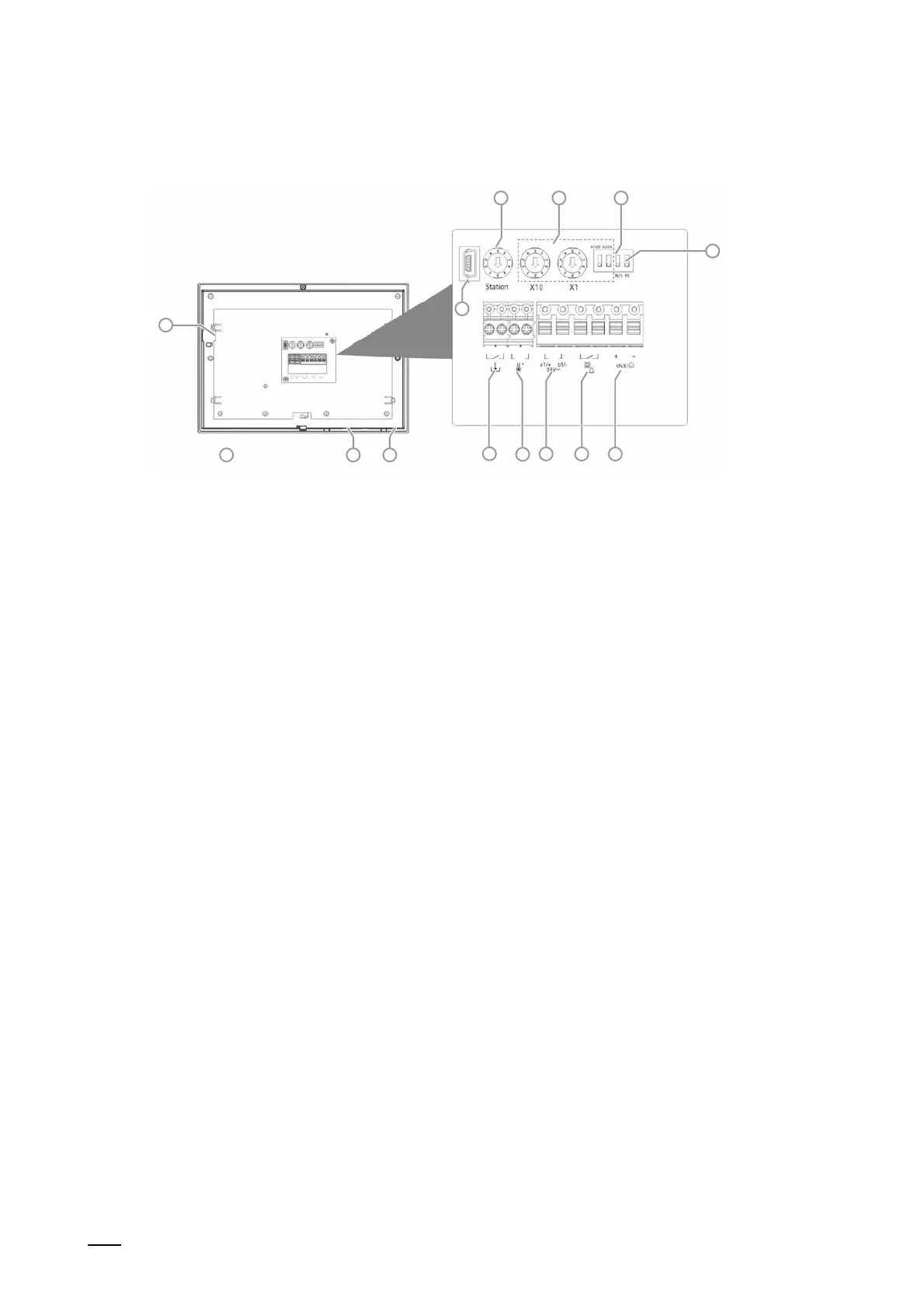

Fig. 3: Device overview ABB SmartTouch
®
rear side
Po
s.
Description
[1] Address of outdoor station
Setting of the address of the standard outdoor station.
[2] Indoor station address
Setting the address of the indoor station.
■
X10: Setting the tens digits.
■
X1: Setting the ones digits.
■
X100 and X200: setting the hundreds digits
(must only be set for ABB-Welcome
®
systems of type M range)
[3] Master/slave function
Only one indoor station in each apartment can be set as "Master" (ON=Master).
[4] Terminal resistor
In video installations or mixed audio and video installations, the switch on the last device of
the connection must be set on "RC on" (ON=RC on).
[5] KNX connection /ABB-free@home
®
[6] Floor call connection
[7] Connection of power input/bus connection
[8] Temperature sensor connection
[9] Binary input connection
[10
]
USB connection for firmware upgrade (only for factory use)
[11
]
Temperature sensor
[12
]
Loudspeaker
[13
]
Microphone
[14
]
SD card insertion position
