Technical data
Product manual 2CKA001473B5343
31
Parameter setting: Programming (KNX)
ETS 6 (from ETS 5.x) and ABB DCA
SmartTouch 10 via KNX bus or micro SD card
Parameter setting (free@home) Via SAP-S-1-84 (no SD card required)
Table 3: Technical data

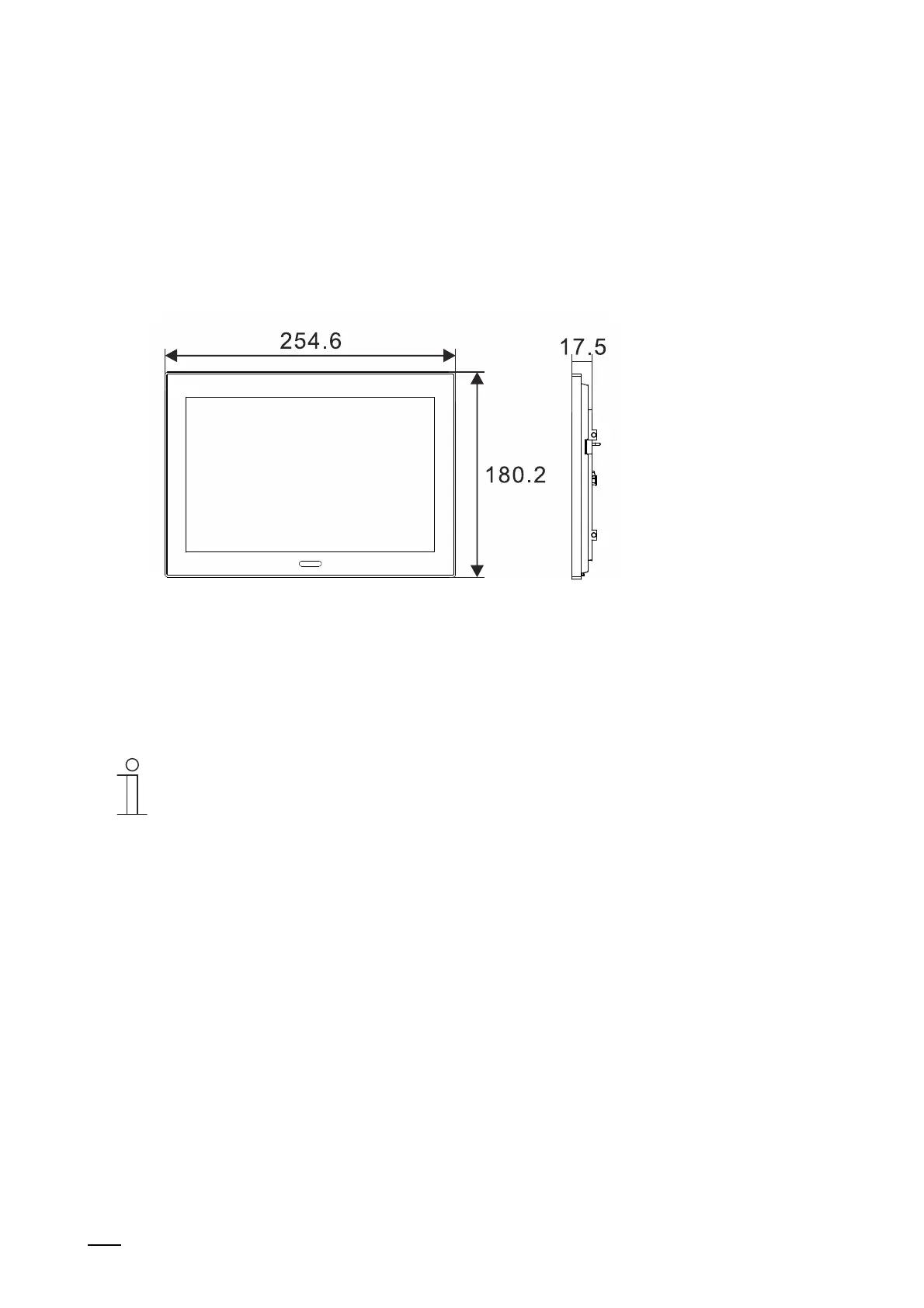

5.1 Dimensional drawings
Fig. 4: Dimensions
All dimensions are in millimetres.
The installation height of the device is 14 mm.
The installation depth is 10 mm.
Notice
The dimensions of the associated flush-mounted installation boxes (not included
in the scope of supply) are as follows:
■
Dimension for flush-mounting (H x W x D): 156 x 238 x 60.
■
Dimension for hollow wall mounting (H x W x D): 146 x 227 x 50.
The dimensions of the surface-mounted mounting frame (not included in the
scope of supply) are as follows:
■
(H x W x D): 176 x 250 x 10
