6.6.2 External power supply
If the panel is not operated via ABB-Welcome
®
, an external power supply is required. The
device can be operated with the power supply named in the following:
■
CP-D 24/2.5
Notice
If you supply three panels with current via a single power supply, you require a
separate power supply for the outdoor station. Alternatively, each panel can be
connected to its own power supply.
6.6.3 Installation

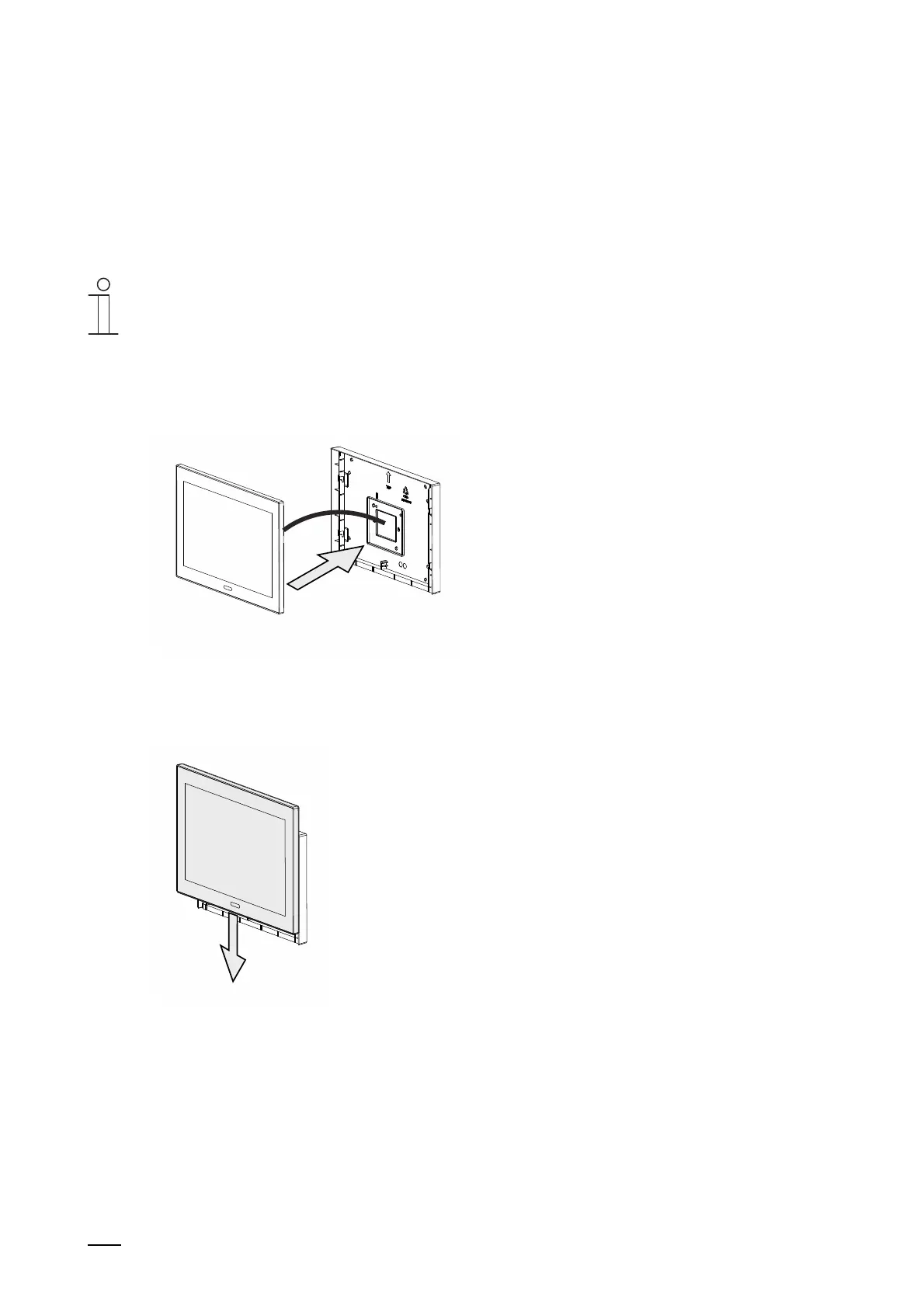

Fig. 15: Attaching the device (example illustration)
1. Attach the device on the installation box.
Fig. 16: Latching the device (example illustration)
2. Push the device downward until the bottom clamp latches in.
The device is now fully mounted.
