Operation
Product manual 2CKA001473B5343
308
12.2.1 Basic structures of control elements

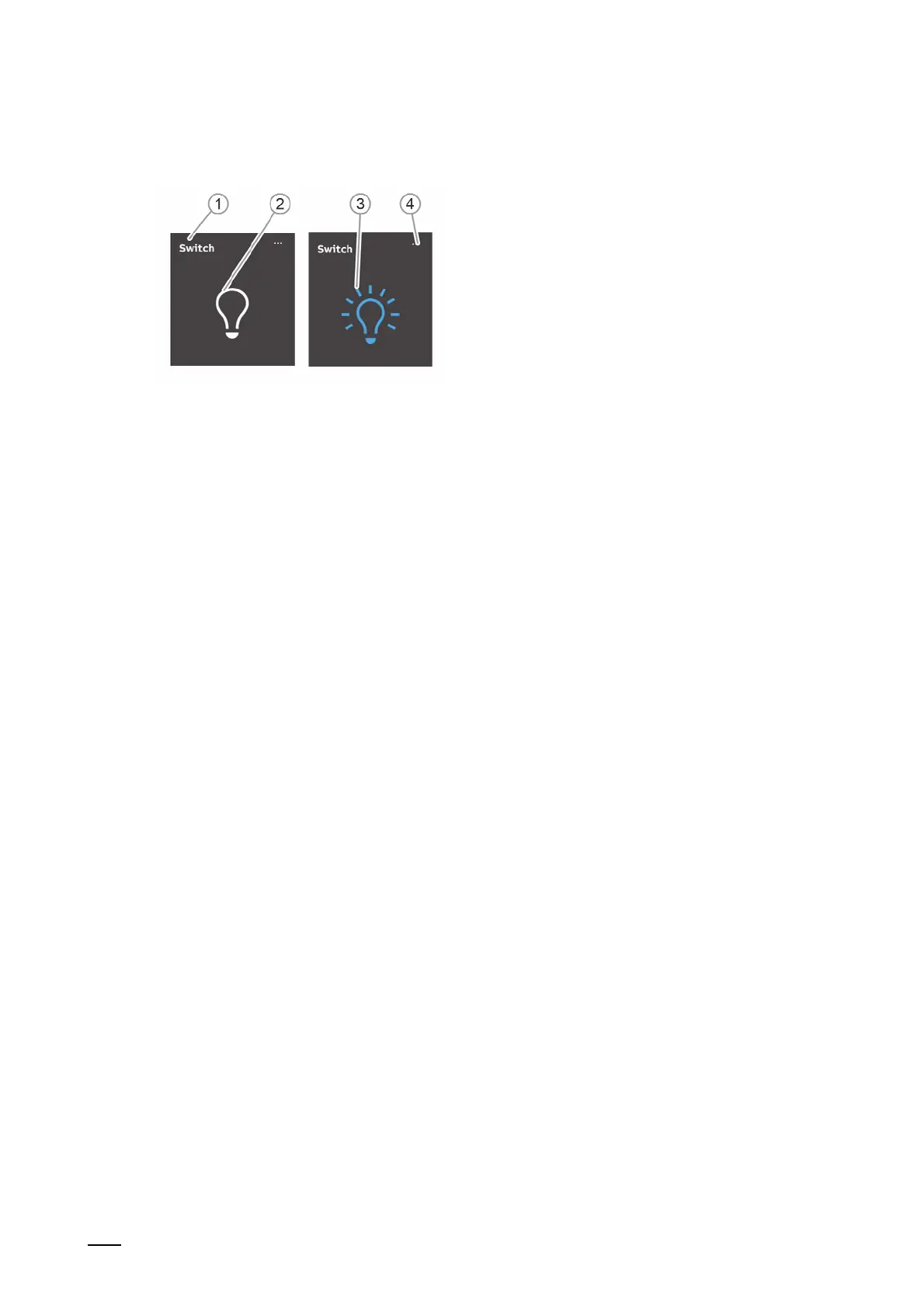

Fig. 45: Various conditions of the same control element
Po
s.
Description
[1] Name or channel designation of the device
[2] Device inactive
If the device is inactive, the button is displayed as follows:
■
Type of button "Icon"
– During inactivity the button is displayed white.
■
Type of button "Text"
– During inactivity the button is displayed black.
[3] Device is active
If the device is active, the button is displayed as follows:
■
Type of button "icon"
– During activity the button is displayed blue.
■
Type of button "Text"
– During activity the button is displayed white.
[4] Control element settings
