ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 99 -
G92 X0 Y0
G00 X100 Y50
G01 X30 Y90
M02
Current position of torch
Expected position of torch

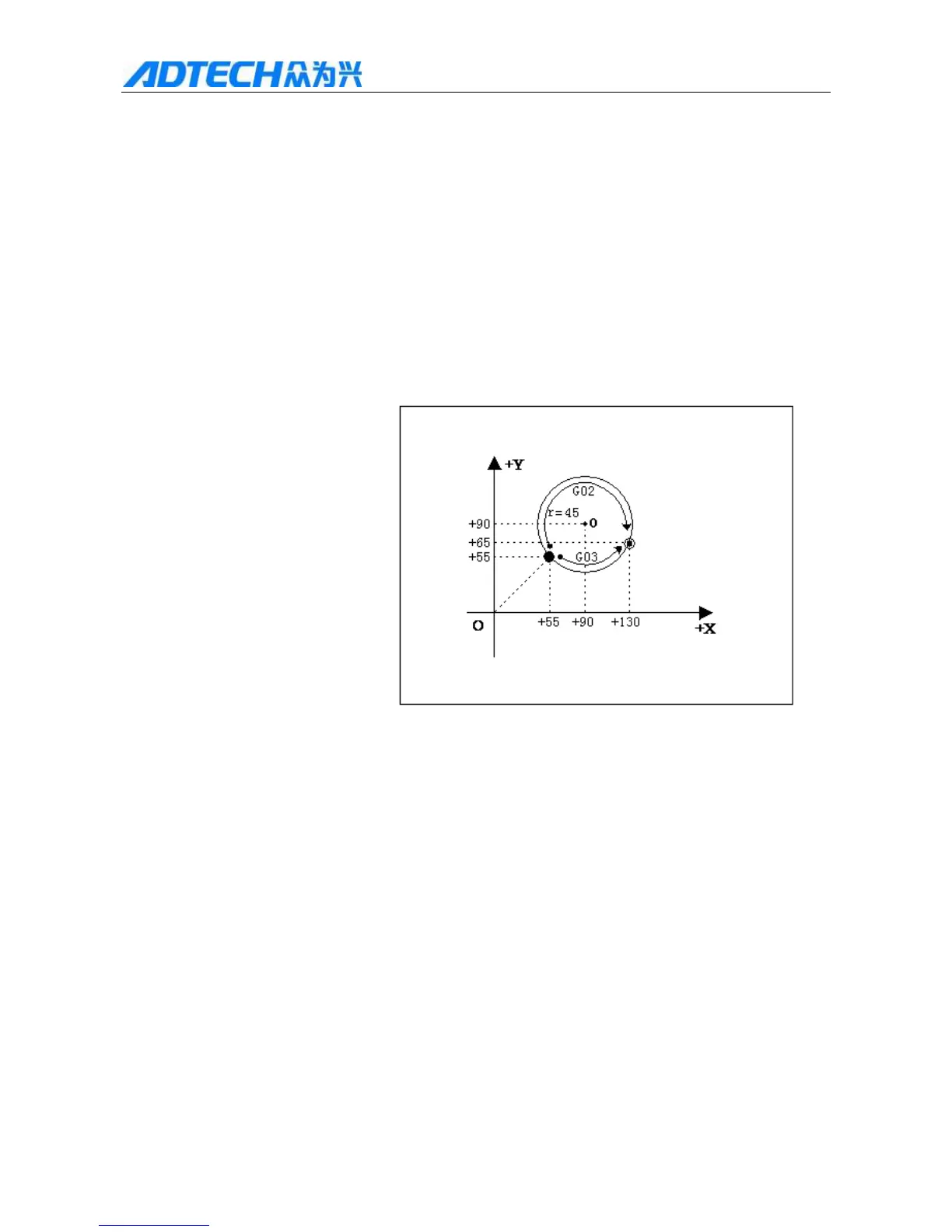

3.5. G02/G03 arc cutting
This instruction is used to cut a circle or arc, while circles include G02 (clockwise) and G03 (counterclockwise)
Format: G02 [03] In
For example (G02):
G92 X0 Y0
G00 X55 Y55
G02 I35
M02
For example (G03):
G92 X0 Y0
G00 X55 Y55
G03 I35
M02
Current position of torch
Expected position of torch
Note:
I and J are the increment of circle center relative to the start in X, Y axes direction. To simplify the manual
programming of processing file, type I50 directly to program a circle with 100MM diameter; type I75 directly to
program a circle with 150MM diameter.
3.6. G04 pause/delay instruction
This instruction is used to set the delay. When executing this instruction, the program delays the time (unit: sec)
specified by L.
Format: G04 Ln
For example: G04 L3.6 (delay: 3.6sec).
