ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 32 -
relationship between the graphics to be processed and the steel plate follows:

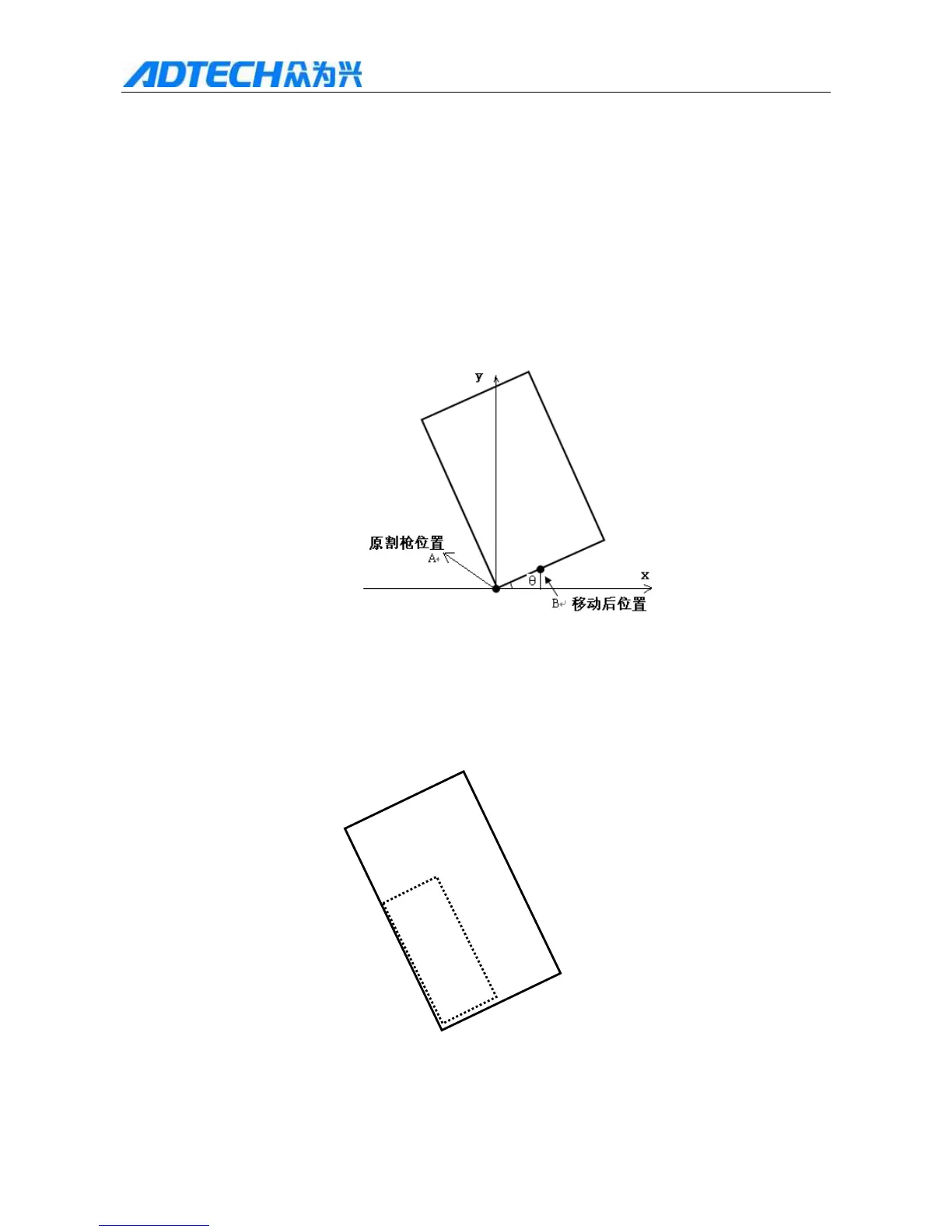

3) If the steel plate inclines to the left as in the figure below, the correcting method follows:
Original position of torch / Position after moving
Press [X+] and then press [Y+], or press [Y+] and then [X+], and then press [OK]. The relationship
between the graphics to be processed and the steel plate follows:
20. Selecting cutter point
In the Auto interface, press [F4] (Graphics) to enter graphics display and processing graphics tracking interface.
