ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 26 -
Current state: Array / Program name
Please enter the parameters:
1 1Line No.
2 2Row No.
3 3Line space
4 4Row space
5 5Plate width
6 6Plate height
X X. Vertical Y Y. S t a g g e r e d
Return / Turn / Select line / Select point / Array / Restore / Return

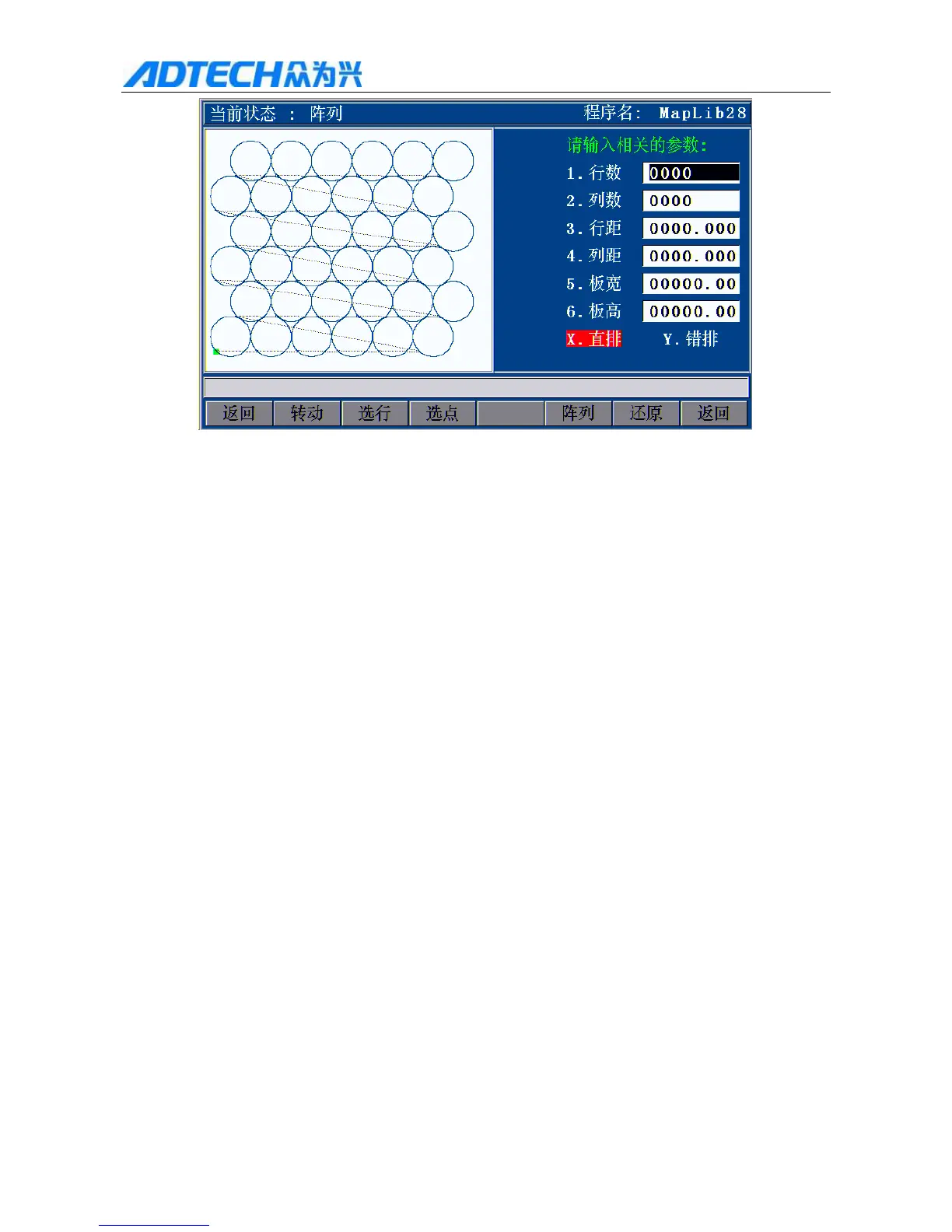

Fig. 2.16.3 Graphics after Array
During array, please pay attention to the following notice:
1) After array, all the processing states won’t be saved, e.g. pause coordinates, etc.
2) After array, press [Return] to check whether the size is suitable for the steel plate in the processing
interface; press [F6] (Restore) for re-array.
17. Mirror
Mirror is to symmetrize the graphics to be cut by X or Y axis to get a new processing file.
In the main menu interface, press [F1] (Auto) [F4] (Graphics) [F4] (Process) [F1] (Turn), and then
To Next Page
