ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 25 -
Current state: Array / Program name
Please enter the parameters:
1. 1Line No.
2. 2Row No.
3. 3Line space
4. 4Row space
5. 5Plate width
6. 6Plate height
Select array direction and then press [OK]
Width: Height:
Return / Turn / Select line / Select point / Array / Restore / Return

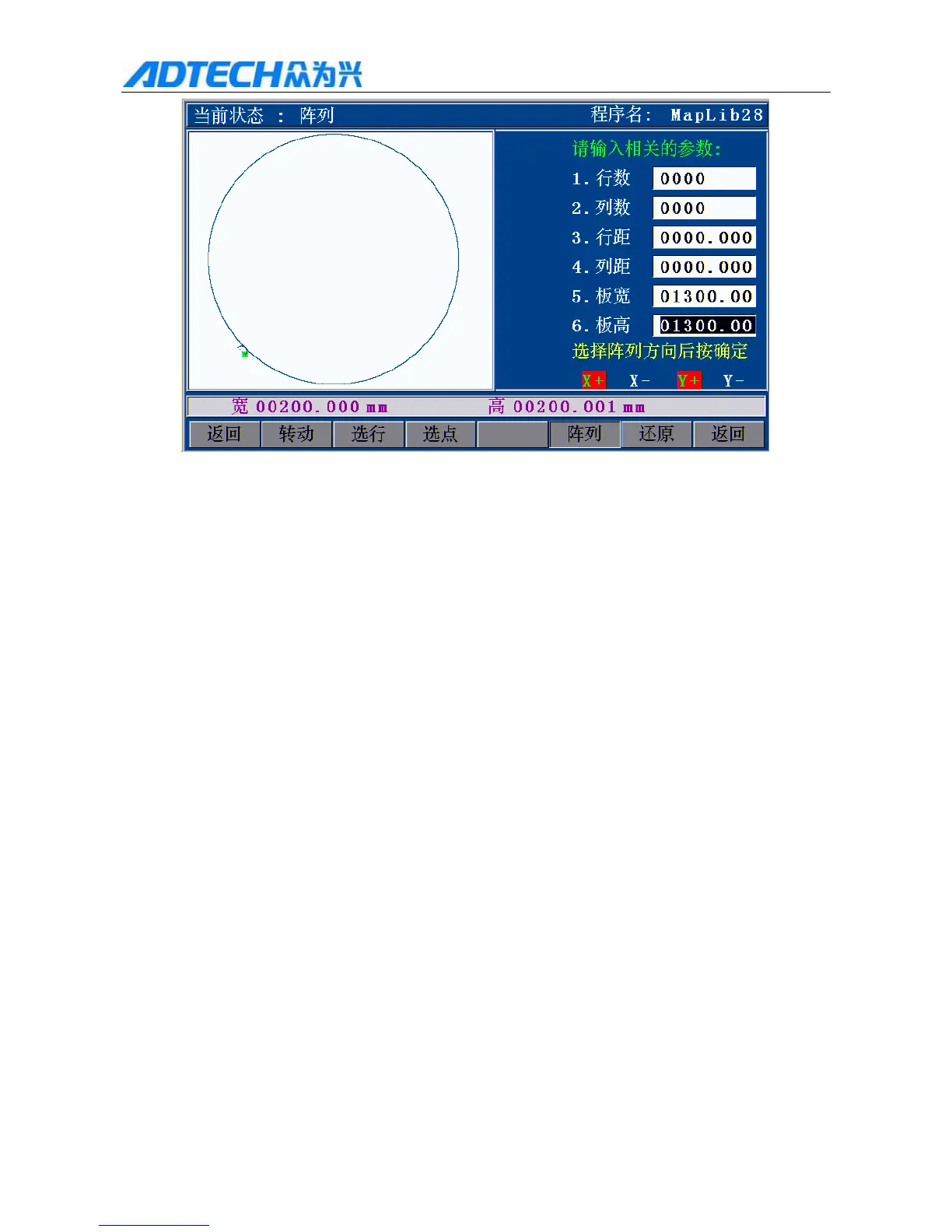

Fig. 2.16.2 Array Parameter Setting
Press [X+], [X-], [Y+], [Y-] to move cursor to the direction for array, select the direction and then press [OK] to
complete all array steps and start array processing.
