ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 24 -
Current state : Array / Program name:
Please enter the parameters:
1. 1Line No.
2. 2Row No.
3. 3Line space
4. 4Row space
5. 5Plate width
6. 6Plate height
X X. Vertical Y Y. S t a g g e r e d
Width: Height:
Return / Turn / Select line / Select point / Array / Restore / Return

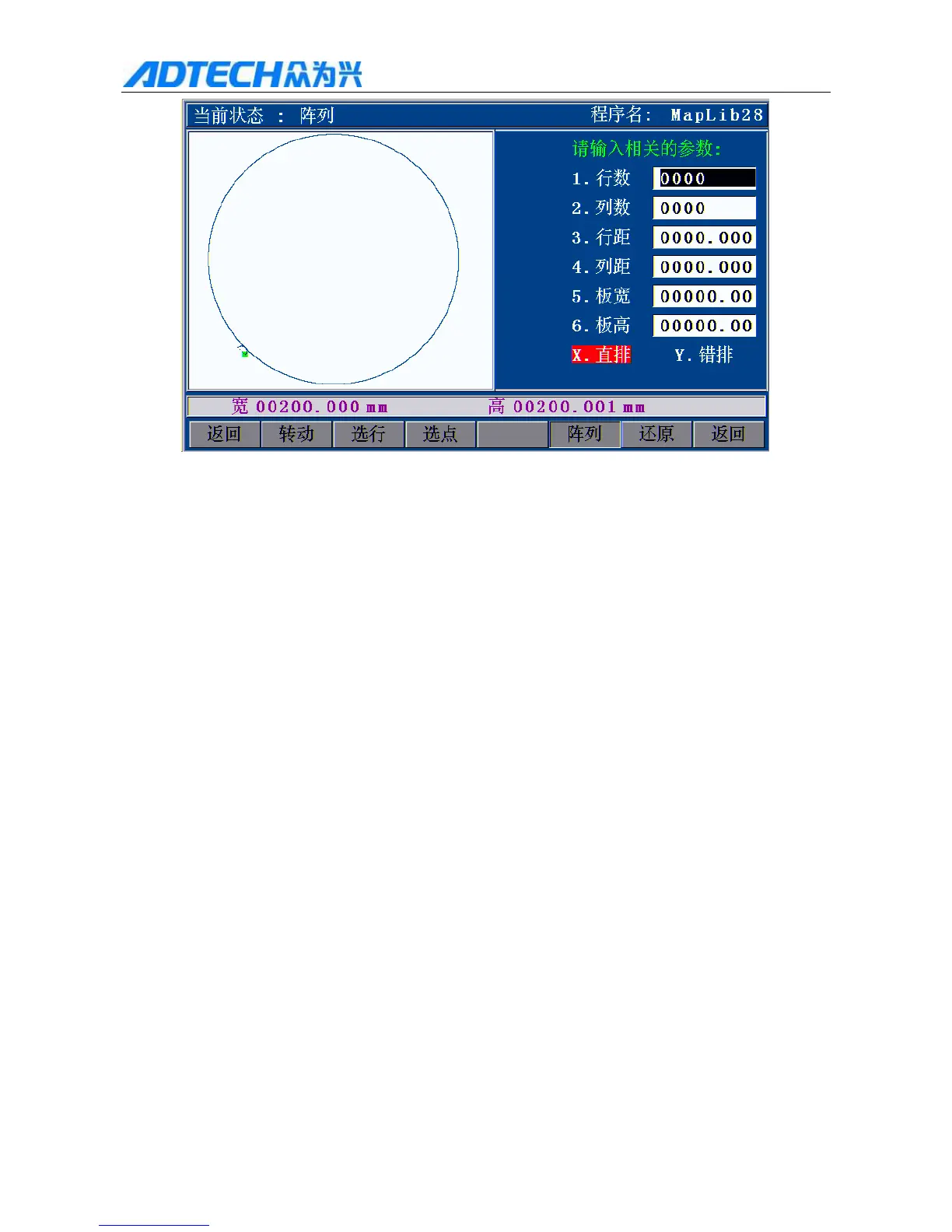

Fig. 2.16.1 Before Array (Processing Interface)
The default offset is the size covered by the picture element, i.e. height and width of single graphics; adjust
these two values to make the array more reasonable.
Press the number keys to enter the parameter value, press [Y+], [Y-] to select a parameter, enter the valid
parameter, and then press [OK] to select array direction.
To Next Page
