ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 31 -

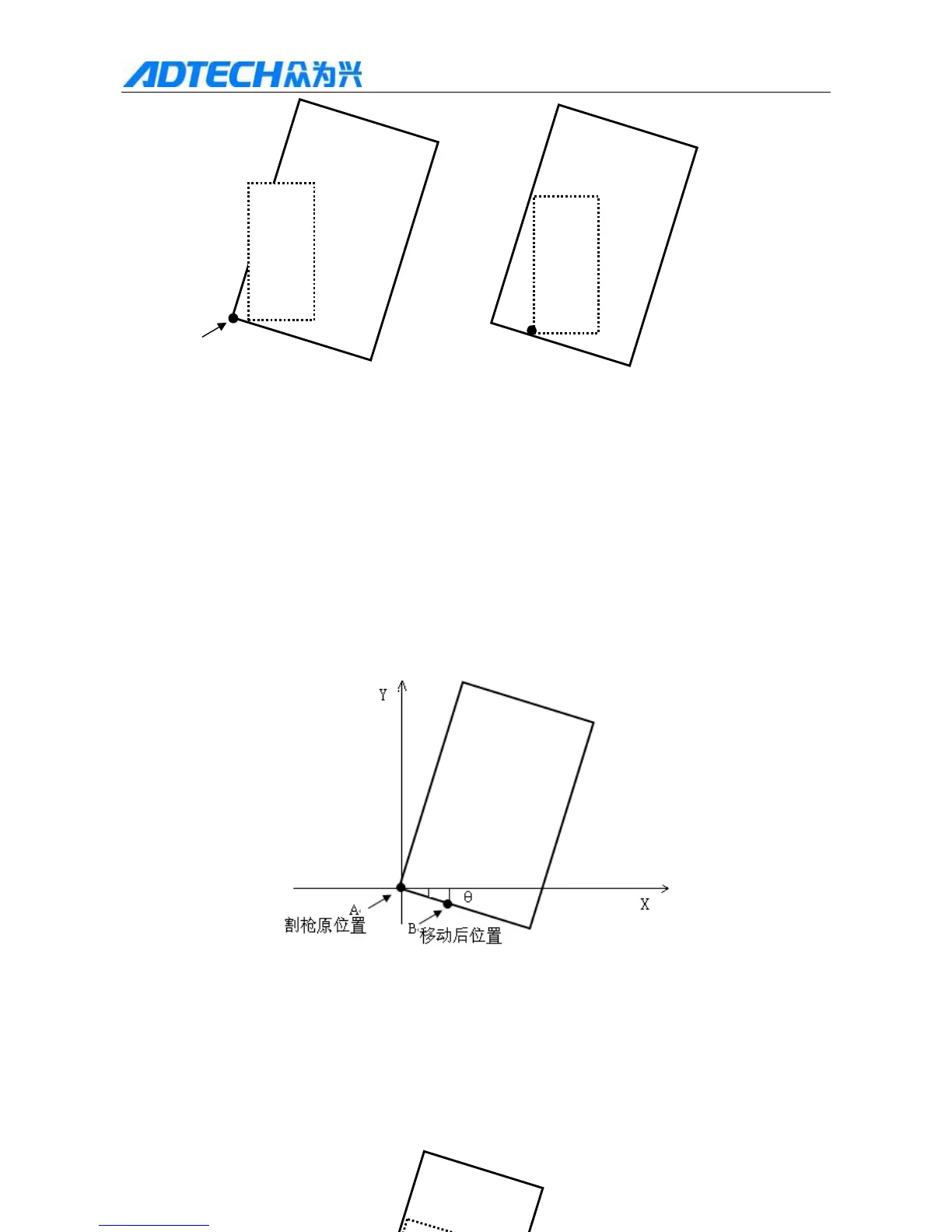

Fig. 1 Fig. 2
1) In Fig. 1 above, the bigger frame (real line) is the steel plate, the smaller frame (broken line) is the
graphics to be cut, and point A is the start position of the torch. If cutting according to the position in Fig.
1, certain part of the graphics can’t be cut; if cutting according to Fig. 2, move the start point to the
center of the steel plate and cut; in this way, the steel plate can’t be utilized reasonably and will cause
waste.
2) At this moment, calculate the inclination of the steel plate without moving it, and then incline the
processing graphics for corresponding angle to utilize the steel plate effectively.
Steel plate correcting method follows:
Original position of torch / Position after moving
1) As in the figure above, point A is the start point of torch; just move the torch to any point in the base side
of the steel plate to calculate the inclination of the plate, press [X+] and then [Y-], or press [Y-] and
then [X+], and then press [OK].
2) At this moment, the graphics displayed by the controller will be rotated for certain angle, and the
A
