ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 30 -
plate and axis X of reference coordinates.
If axis Y is the reference axis: the offset angle of the steel plate is the angle between axis Y of the steel
plate and axis Y of reference coordinates.
After selecting, press [OK] to confirm.
Press [X+][X-][Y+][Y-] to move the torch, and the system will calculate the angle automatically. The
following correction principle will describe how to move the torch and calculate the correct angle.
Current state: Correct / Program name
Please select the reference axis for correction:
1 X 1Axis X
2 Y 2Axis Y
X+, X-, Y+ Y- Please press X+, X-, Y+ or Y- to move
X X offset:
Y Y offset:
Angle:
Press [OK] after moving
Return /X X mirror / Y Y mirror/XY XY mirror / Rotate / Correct / Restore /
Return

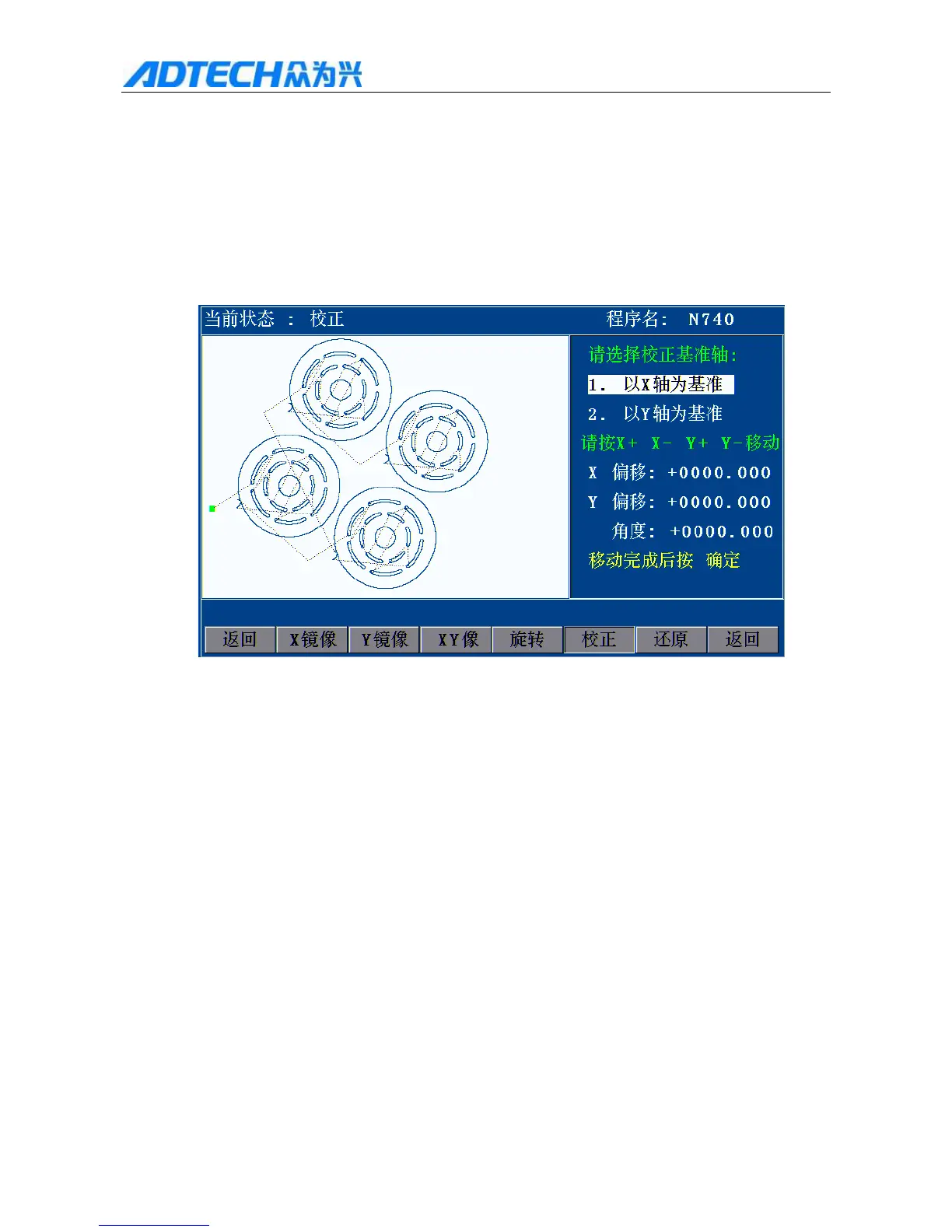

Fig. 2.19.1 Correct
The following correction principle is to correct with axis X as the reference.
The correction principle with axis X as the reference axis follows:
