ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 108 -
supply
8 5V- Negative end of internal 5V power supply; can’t connect to external power
supply

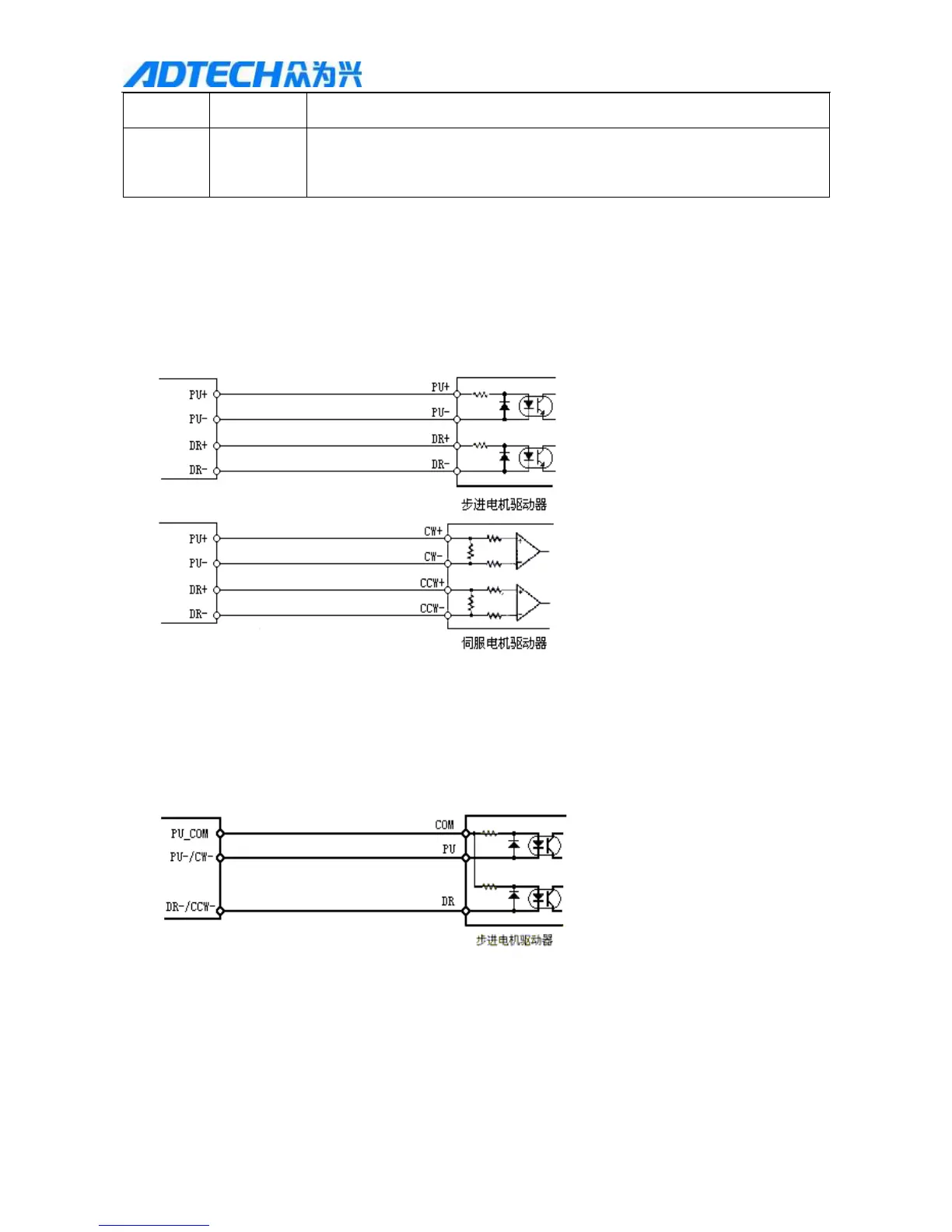

Wiring mode of pulse output signal:
Æ Differential mode:
This mode is recommended for step drives with independent pulse and direction input and most servo drives to
get better anti-interference.
Step motor drive
Servo motor drive
Æ Single end mode:
Suitable for step drives that pulse is connected to anode of direction
Step motor drive
Note: Not suitable for step drives that pulse is connected to cathode of direction
PU_COM and 5V- are specially designed for step drives or servo drives whose control signals are not differential.
The drives are connected in common anode or common cathode. If the control signals of the drive are connected
