ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 35 -
󲝟 Auto /󳖔󰐛 Speed: /󱾀󰐄 Program name:
󱥸 GLOBAL
󰴟 Torch up /󰤜 Cutting Control
󰴟󳯂 Torch down / 󳅸󴁍󰤜 Height control
󰓈󰵼 Current coordinates
󲒒󲷚 Slot compensation
󱱭󰥅󱺯 Prompt:
󰍚󱠫󰕶 Working state: 󱃗 Stopped /󲂾󱼰󰃅 Plasma
󳕉 Return / 󱒉󱺯 Demonstrate /󰟀 Manual /󳕵 Back / 󱥻 Process / Return reference / 󰬢󱘮 Break
point /󳕉 Return

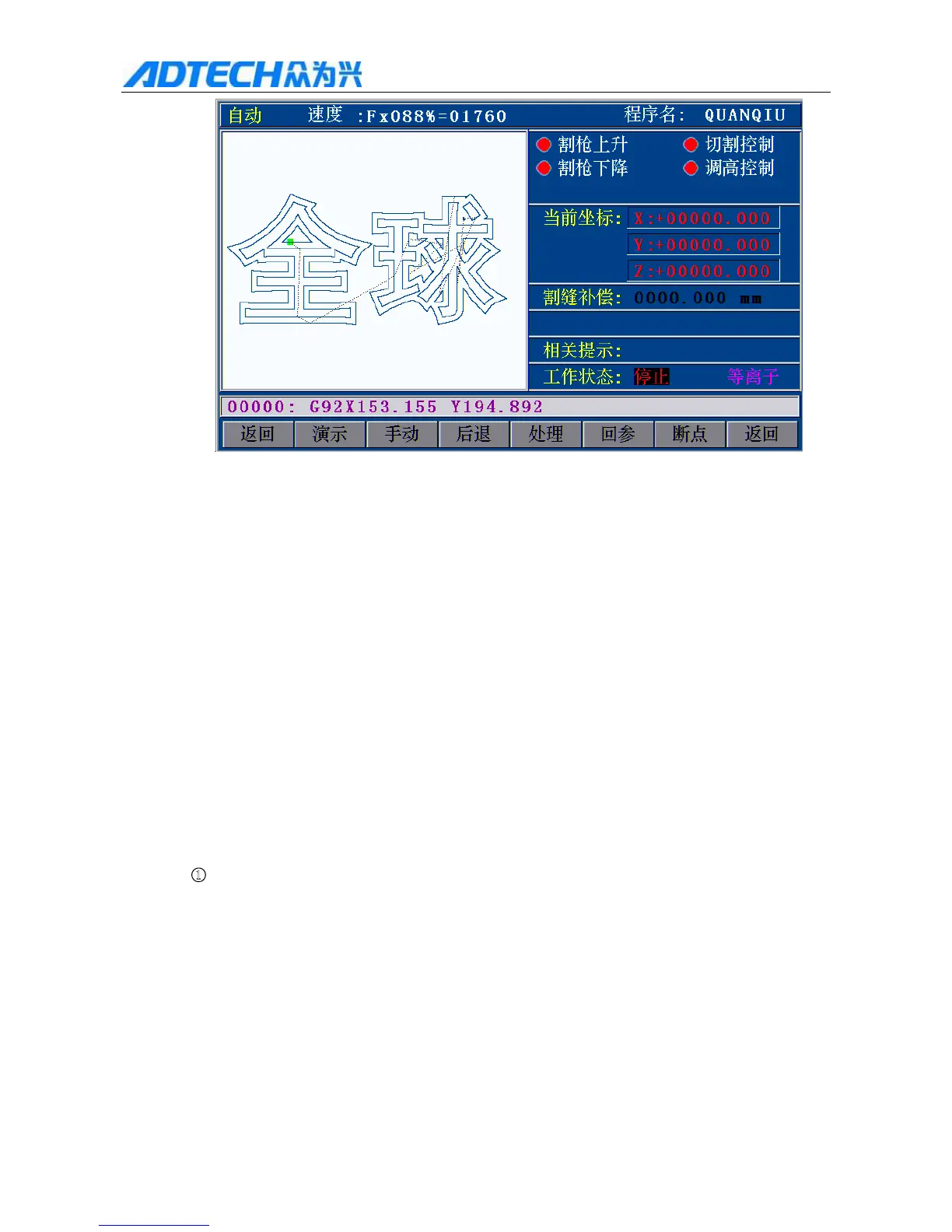

Fig. 3.1 q Plasma mode
Fig. 3.1 p
Flame mode interface description:
p Speed percentage, which is adjusted with [F], [F];
q Current moving speed;
r Name of processing file;
s ON/OFF state of electronic valves;
t Current coordinates of X, Y, Z;
u Slot radius compensation of current torch;
v Oxygen preheating time for perforating during flame cutting;
