󳅸󰫩󰫥󳄳󲓣󱫁󳳗 Parameter Setting Interface
󳓤󱃘󳯅 Soft positive limit
󳓤󳊔󳯅 Soft negative limit
󰲯󰏿󱘮 Machine tool origin
󳭩󳰎 Reverse clearance
󳕉 Return /󲉰󲑔 System /󳖔󰐛 Speed /󳅸󰫩 Adjust /󰤜 Control /󲈳󰐛 Precision /󰃍
Store /󳕉 Return

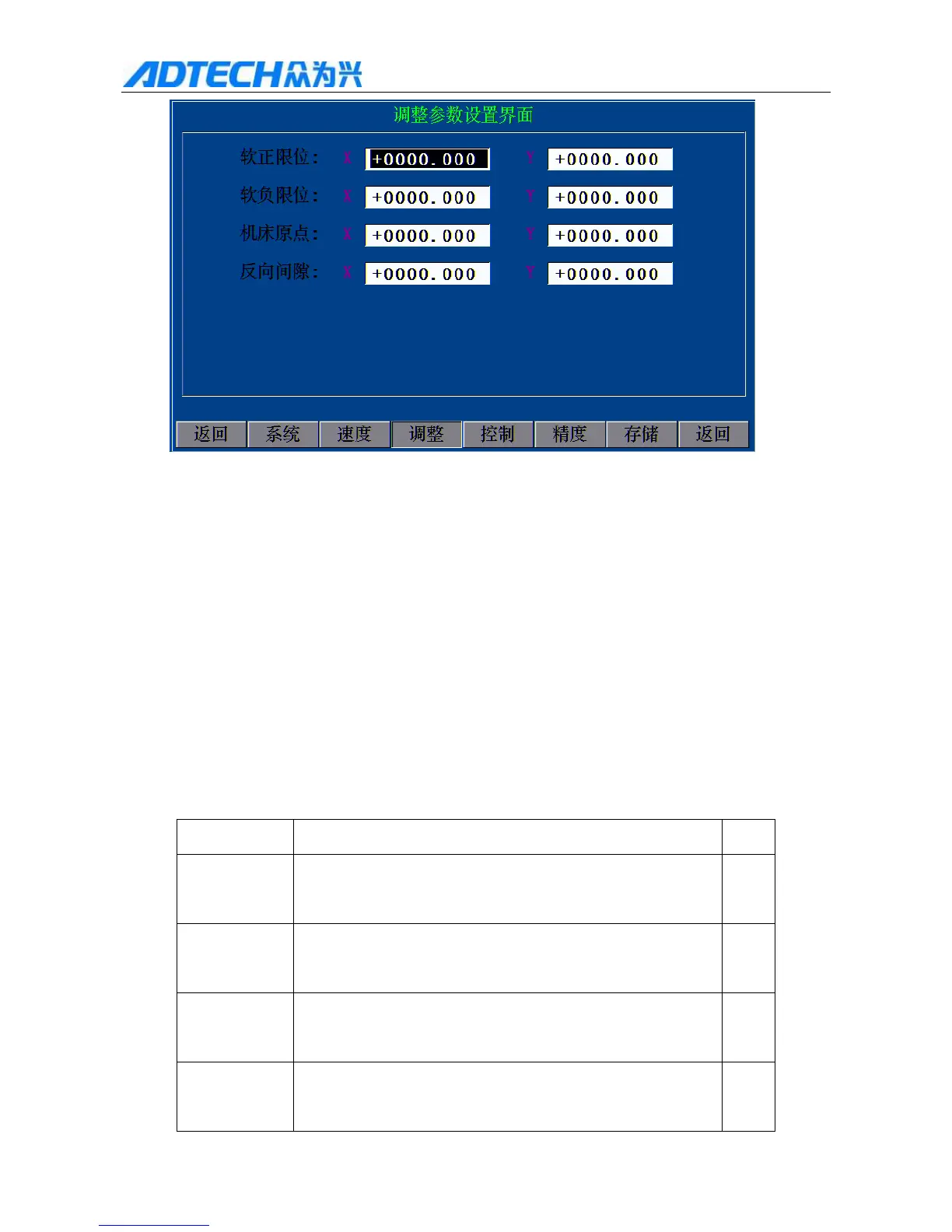

Fig. 4.3Parameter Setting Interface
4.3.1 Adjustment setting
Parameter Description Unit
Soft positive
limit
Positive limit of the system; if current position is larger than
this value, the system will stop automatically
mm
Soft negative
limit
Negative limit of the system; if current position is smaller
than this value, the system will stop automatically
mm
Machine tool
origin
Origin position of the machine tool mm
Reverse
clearance (X)
Clearance compensation for axis X during reverse direction
change
mm
