 23.07 Deceleration time 2
Range: 0.1 ~ 3000 Sec in 0.1 Sec
Initial value: 30.0 Sec
 '23.03' (Ramp set selection) is 0
Always off
 '23.03' (Ramp set selection) is 1
Always on
 '23.03' (Ramp set selection) is 2
It not works if the output frequency is below
'23.11' (Deceleration time transition frequency)
 '23.03' (Ramp set selection) is 3~9
It works by digital input which is selected
 Related Parameters: '23.06' ,'23.07', '23.10', '23.11'
 23.08 Acceleration pattern selection
0: Linear ----- Initial value
1: S Curve
2: U Curve

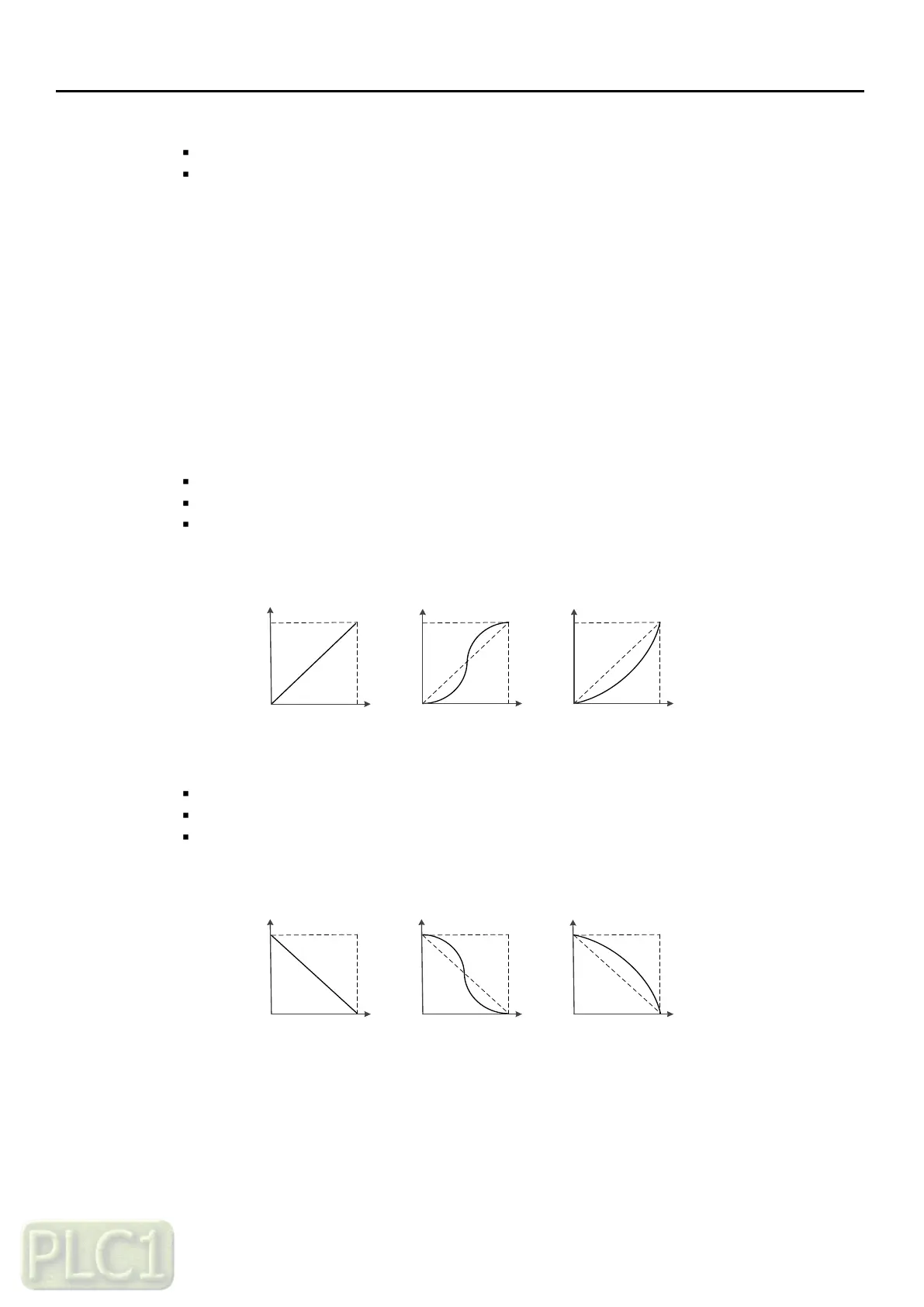

Select acceleration curve type
0: Linear
t
1: S curve 2: U curve
FF
t
F
t
 23.09 Deceleration pattern selection
0: Linear ----- Initial value
1: S Curve
2: U Curve
Select deceleration curve type
t
0: Linear 1: S curve 2: U curve
t t
F F
F
