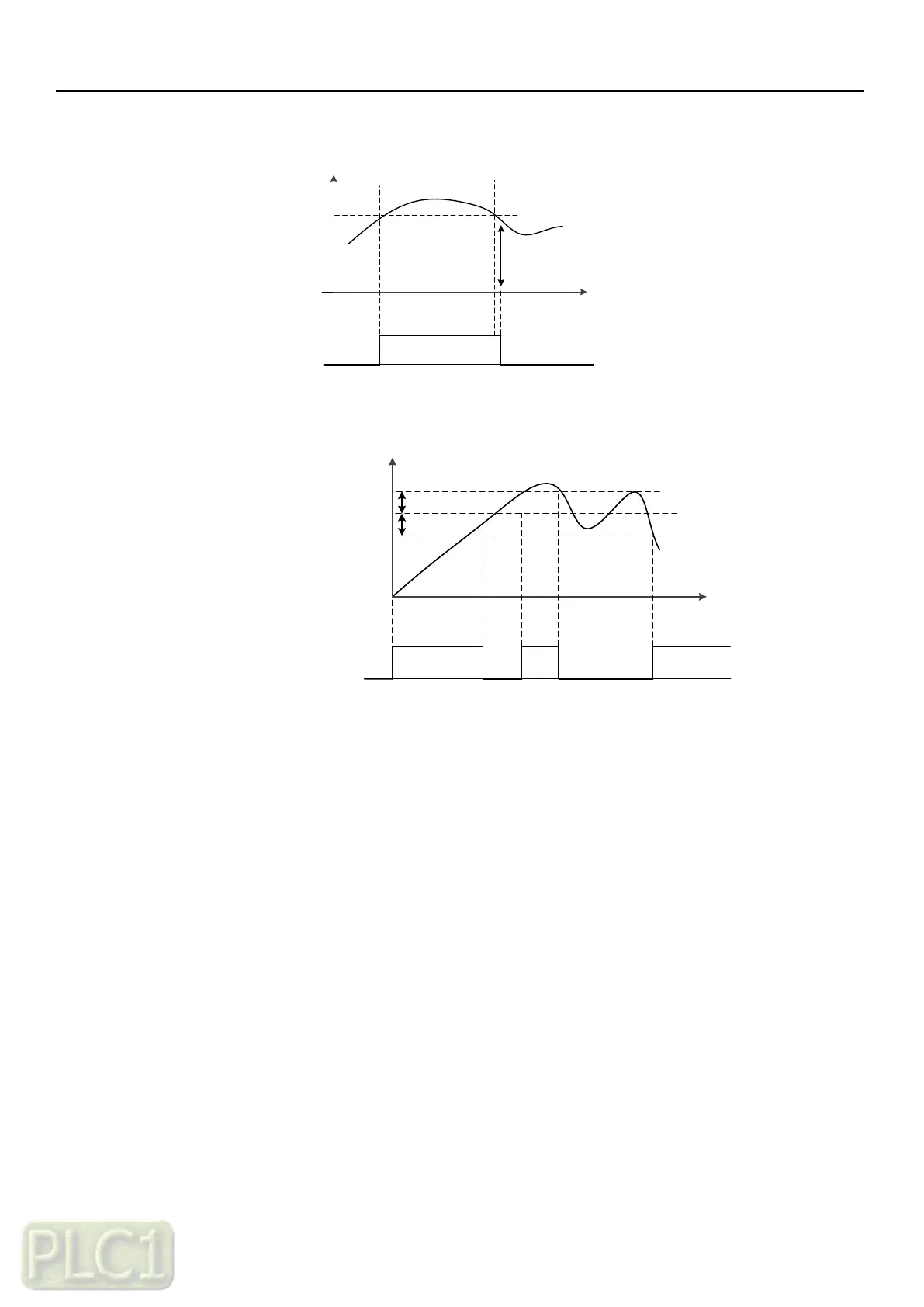

 Set 3: OL Overload Warning Signal
ON
VFD Overload warning signal
Out Current(A)
10.35 (VFD Overload warning level)
t
10.35 (VFD Overload warning level) * 97%
 Set 4: OD Output Deviation Excess for PID control
ONPID Error tolerance signal
PID output
t
ON ON
40.02 (PID reference)
10.38 (PID Error tolerance)
10.38 (PID Error tolerance)
 Set 5: AL Fault Signal
