Maintenance
7.11 Checking the Engine Oil
80
Operator’s Manual | SM100 | 5100064108 | 08/2022 | [en-US]
NOTICE
Prevent dirt and debris from contaminating the engine oil. Carefully clean the
oil cap, dipstick, and the surrounding area before removing the cap.
Do not mix different types of engine oil. This can adversely affect the lubri-
cating properties of the engine oil.
Environment
Use a suitable container to collect, store, and dispose of drained fluids and
lubricants in accordance with current environmental protection regulations.
When
Every 10 hours or daily
Requirements
• Machine parked on a level surface
• Machine shut down and cool to the touch
• Recommended oil (for oil specifications, see Engine Oil Viscosity on
page 74 and see Fluids on page 110)
• A clean, soft cloth
Overview
Maintaining the appropriate engine oil prevents excessive engine wear.

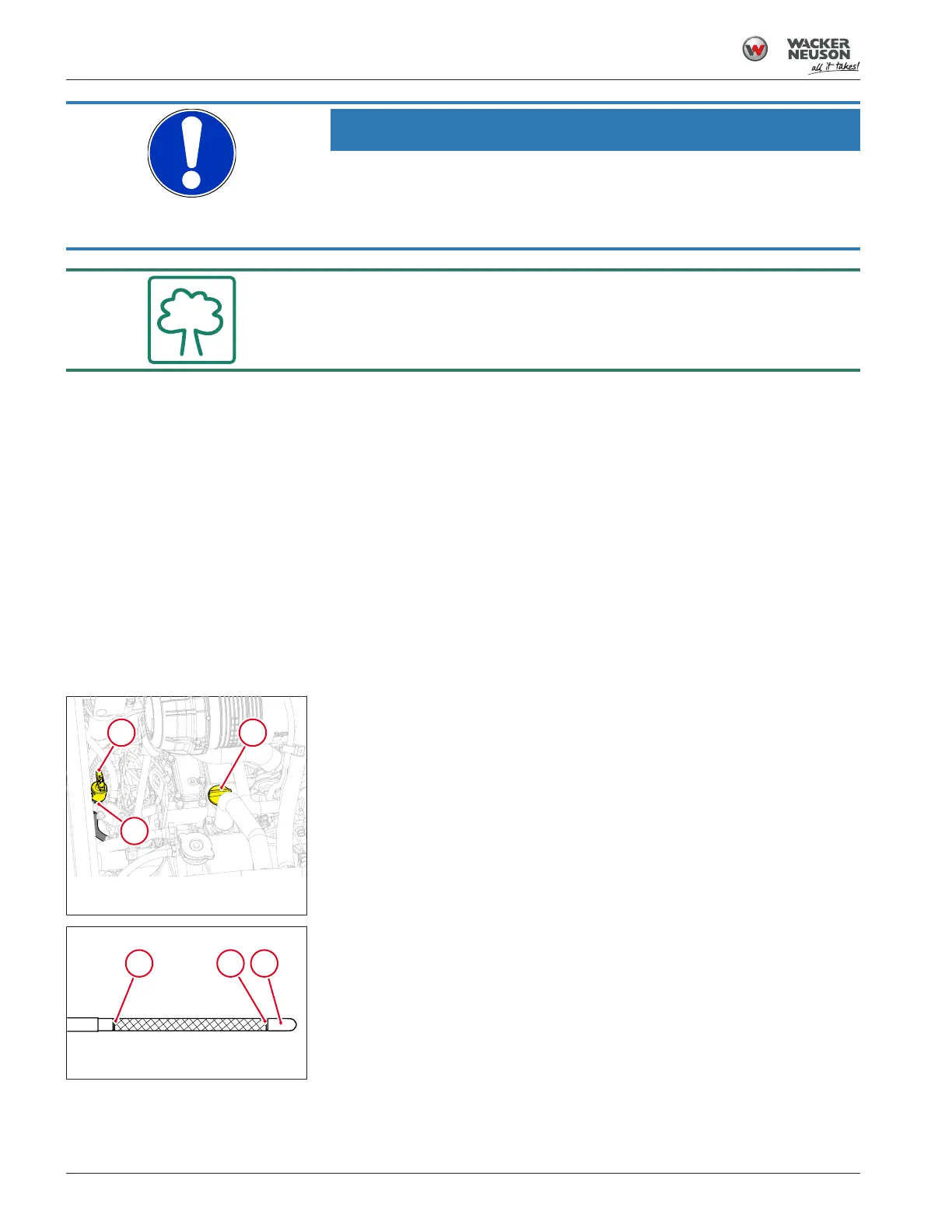

Fig.60: Dipstick, dipstick tube, and
oil cap
Procedure
1. Open the engine door and protect yourself from engine heat.
2. Carefully remove the dipstick(1) and wipe it clean.
3. Fully insert the dipstick into the dipstick tube(2) and remove it again to
check the engine oil level.
Fig.61: Dipstick marks
4. If the engine oil level is between the min(3) and max(4) marks, the
level is acceptable. Do not add engine oil.
5. If the oil level is below(5) the min mark, remove the engine oil cap(6)
and add enough oil to raise the level within the min-max range.
ð Repeat steps 1, 2, and 3 to check engine oil level.
ð Install engine oil cap when engine oil level is sufficient.
6. Install the dipstick and close the engine door.
