Maintenance
7.24 Replacing the Hydraulic Tank Filler Cap
96
Operator’s Manual | SM100 | 5100064108 | 08/2022 | [en-US]
7.24 Replacing the Hydraulic Tank Filler Cap
When
Every 1000 hours
Requirements
• Machine parked on a flat, level surface
• Machine shut down
1
3
2

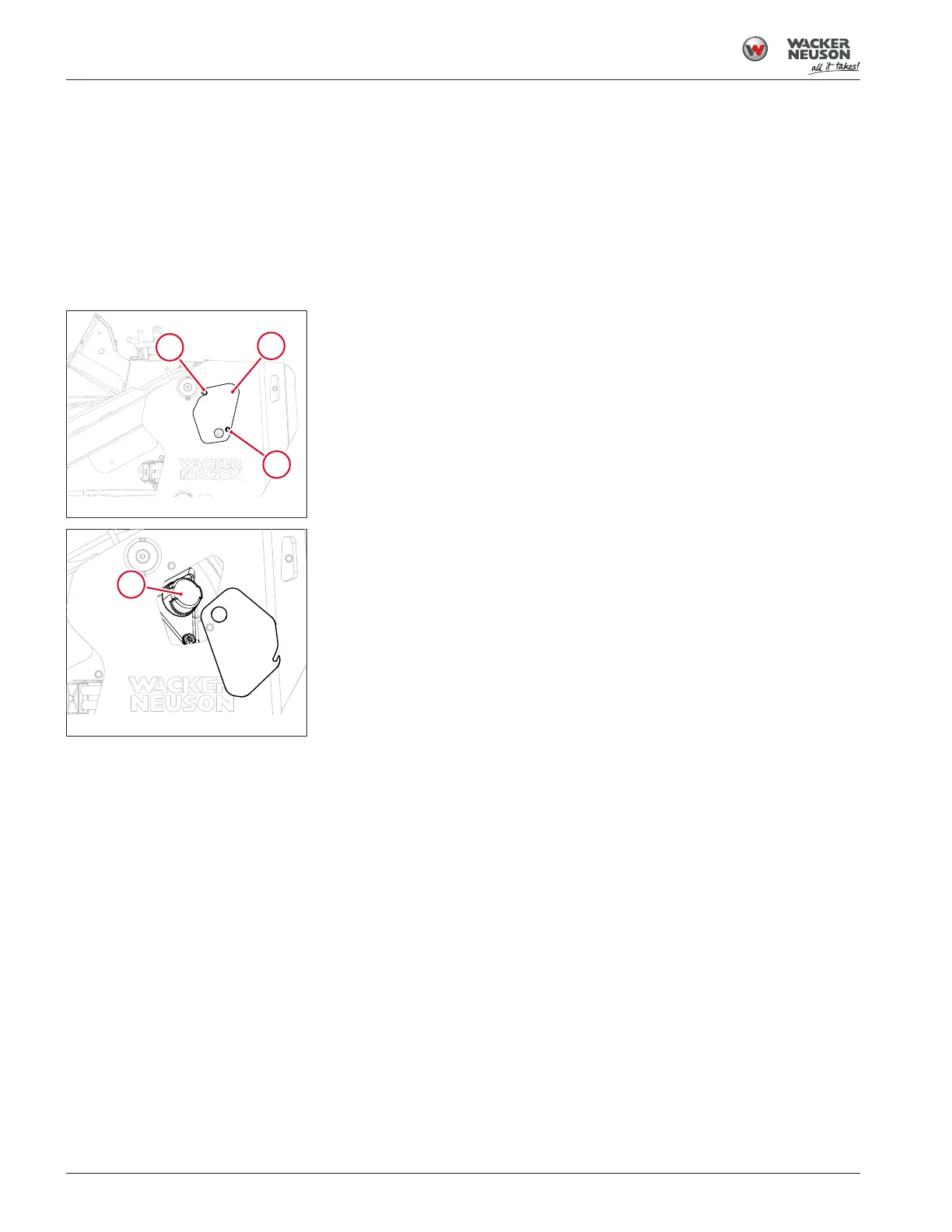

Fig.85: Access plate and bolts
Procedure
1. Remove the hydraulic fill access plate (1) by removing the retaining
bolt (2) and loosening the pivot bolt (3).
2. Rotate the access plate out of the way.
4
Fig.86: Hydraulic tank filler cap
3. Remove the old hydraulic tank filler cap (4).
4. Install the new hydraulic tank filler cap.
5. Rotate the access plate back into place.
6. Install the retaining bolt.
7. Tighten the pivot bolt.
7.25 Replacing the Hydraulic Fluid and Filter
When
Every 1000 hours, or as indicated by the display
Requirements
• Machine parked on a flat, level surface
• Machine shut down
• Replacement fluid
• Replacement filter
