Operation
6.26 Lift Arm Manual Override
64
Operator’s Manual | SM100 | 5100064108 | 08/2022 | [en-US]
CAUTION
Fire and health hazard
Fuel expands when heated. Expanding fuel in an over-filled tank can lead to
spills and leaks.
► Do not fill the fuel tank completely.
NOTICE
Keep the fuel tank and fuel-handling equipment clean at all times. Be careful
not to let any contaminants or even dust from the outside into the filler port
when supplying fuel.
Do not remove the primary strainer (if equipped) from the fuel tank filler port.
If removed, dirt and debris could get into the fuel system causing it to clog.
Requirements
• Machine and fuel tank supply level with the ground
• Fresh, clean fuel supply

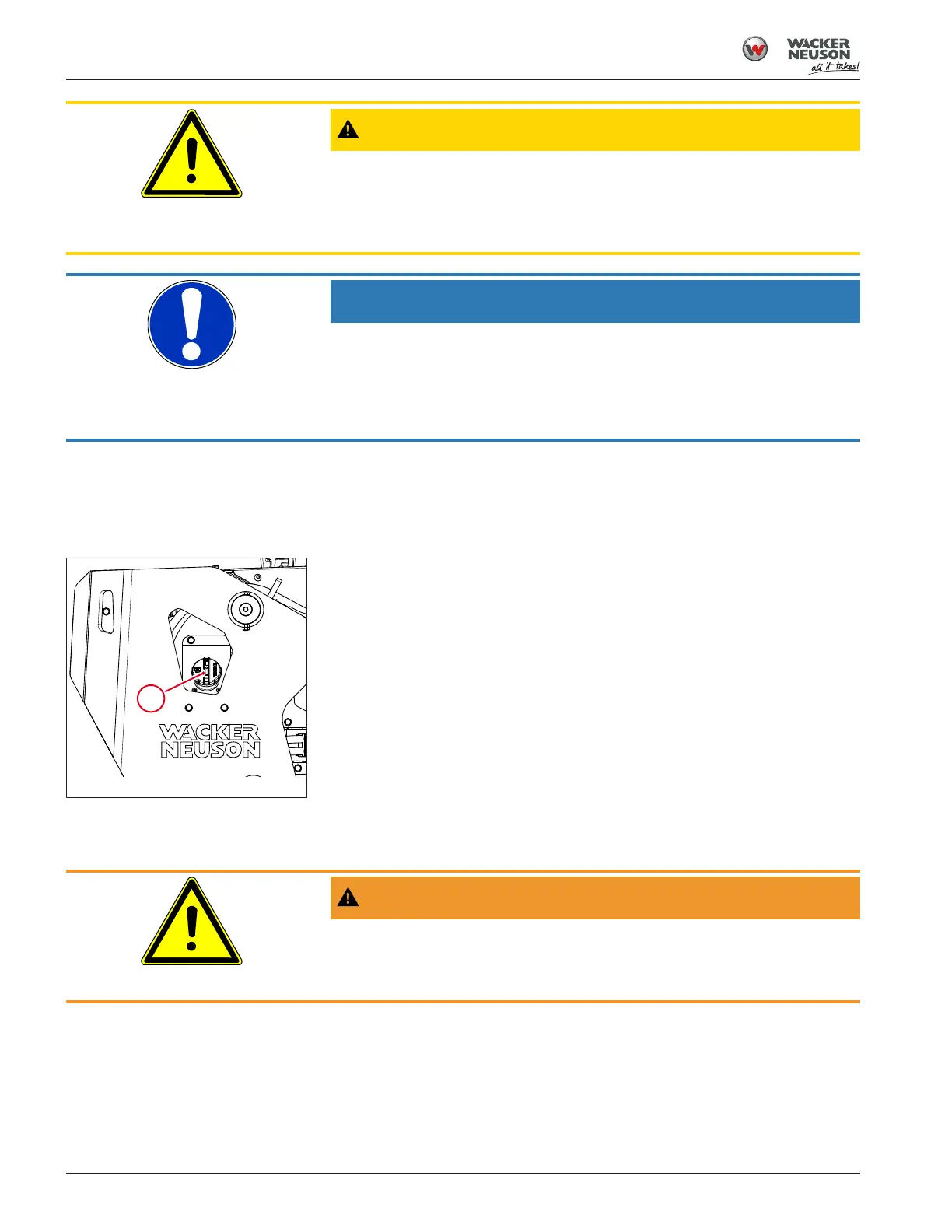

Fig.48: Fuel cap
Procedure
1. Stop the engine.
2. Remove the fuel cap (1).
3. Fill the fuel tank.
4. Install the fuel cap.
Note: Replace the fuel cap if it is malfunctioning.
6.26 Lift Arm Manual Override
WARNING
Crushing hazard
The lift arm can drop if a sudden pressure loss occurs.
► Keep others clear of the area when lowering the lift arm.
The lift arm manual override can be used if the machine loses engine power
with the lift arm in the raised position.
Procedure
1. Stand on the operator platform and engage the operator presence
pedal.
