Operation
6.5 Machine Controls
38
Operator’s Manual | SM100 | 5100064108 | 08/2022 | [en-US]
Operation checklist
The following items should be checked after the engine is started:
• Check that the indicator lights for engine oil pressure and alternator
charge functions switch off within a few seconds after the engine is
started.
• Check all other indicator lights for any malfunctions.
• Check that the ground drive and loader controls are working properly.
Parking checklist
• Park on a level surface.
• Lower the attachment to the ground. If the lift arm is raised, ensure the
lift arm support device is engaged.
• Stop the engine and remove the key if the machine is being left unat-
tended.
6.5 Machine Controls

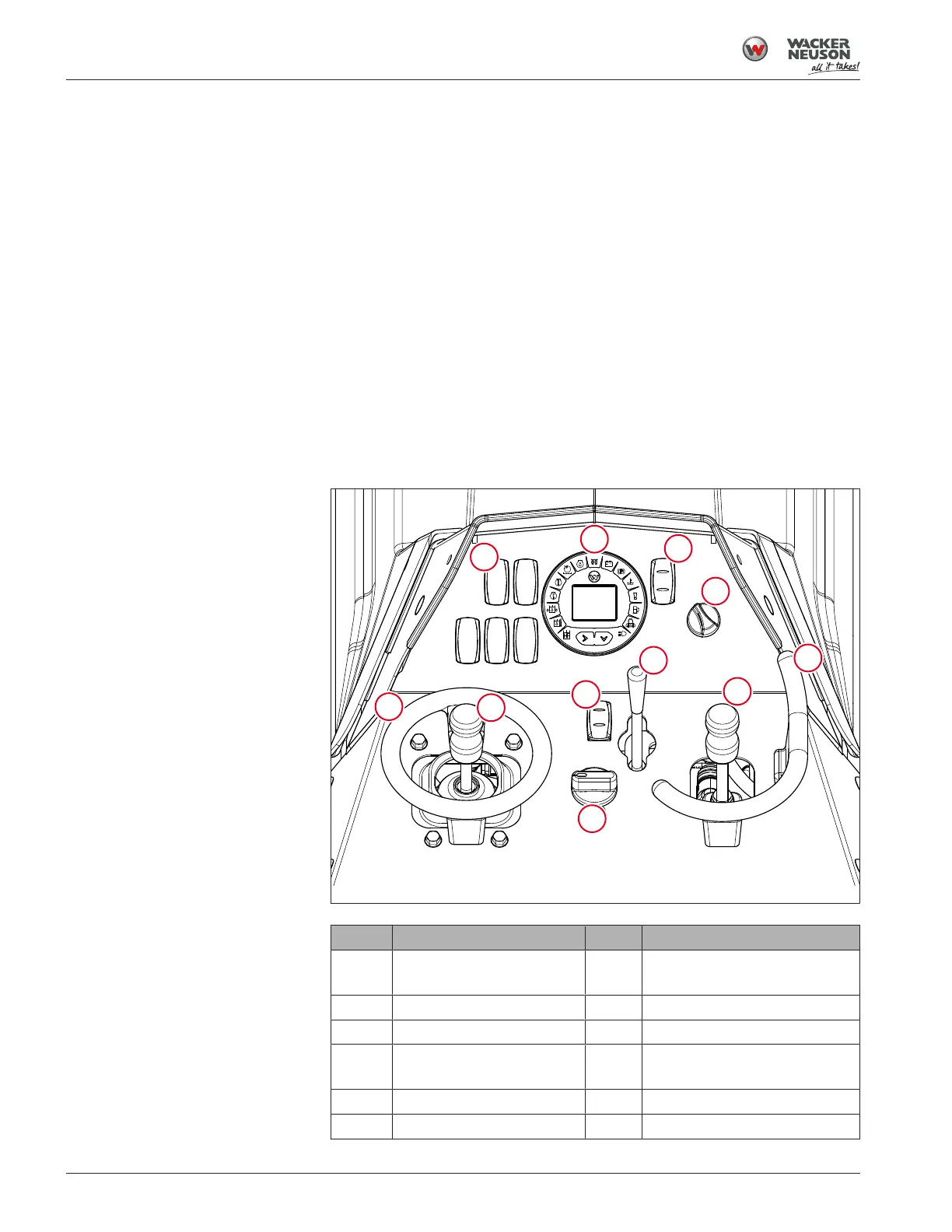

Fig.6: Operator's console components
Ref Description Ref Description
1 Spaces for optional fea-
tures
2 Instrument display
3 Parking brake 4 Key switch
5 Right handrail 6 Workgroup joystick control
7 Auxiliary hydraulic control
lever
8 Continuous flow switch
9 Hand throttle 10 Ground drive joystick control
11 Left handrail — —
